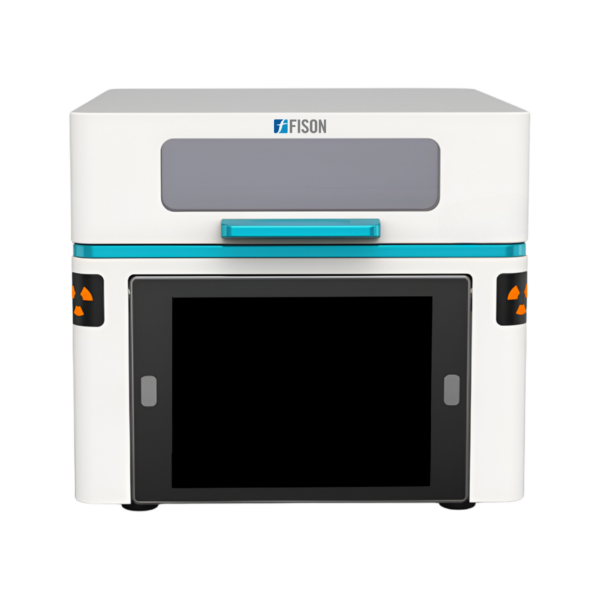

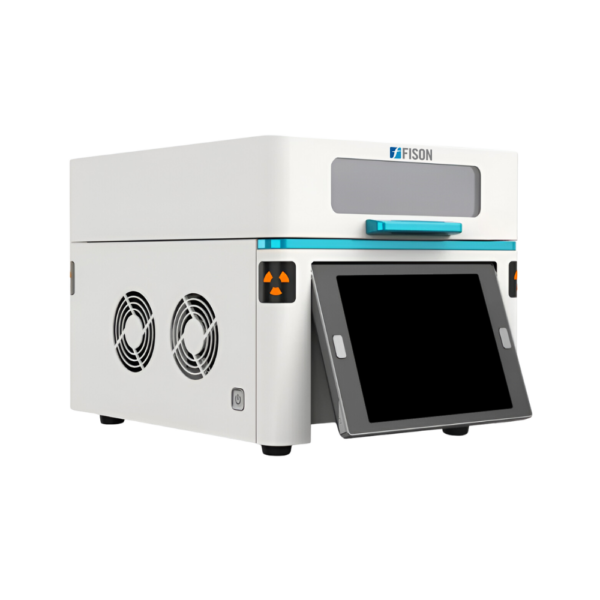

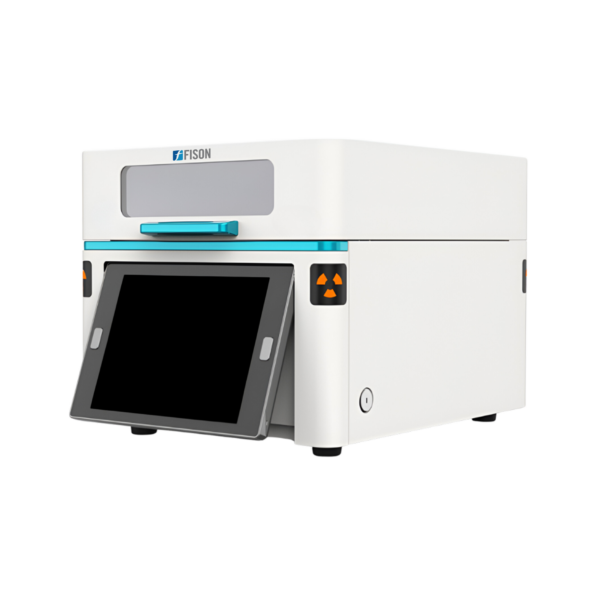

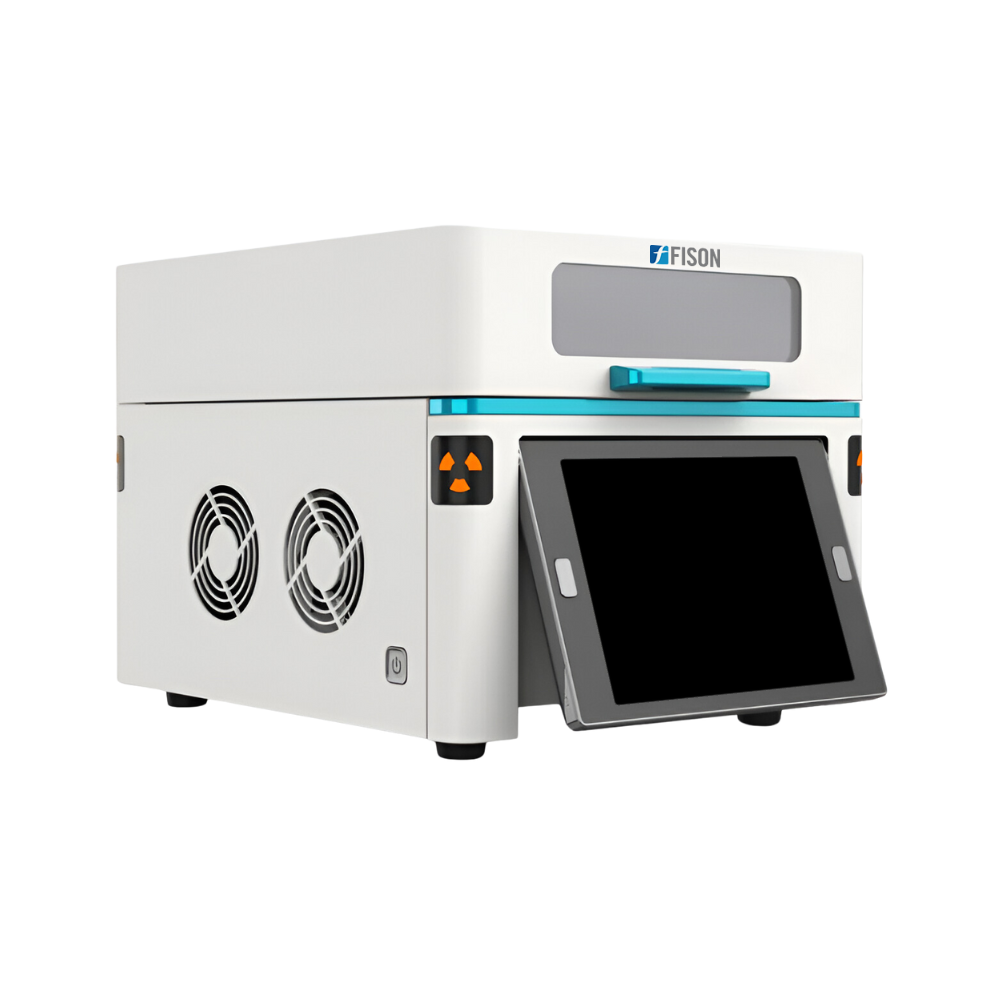

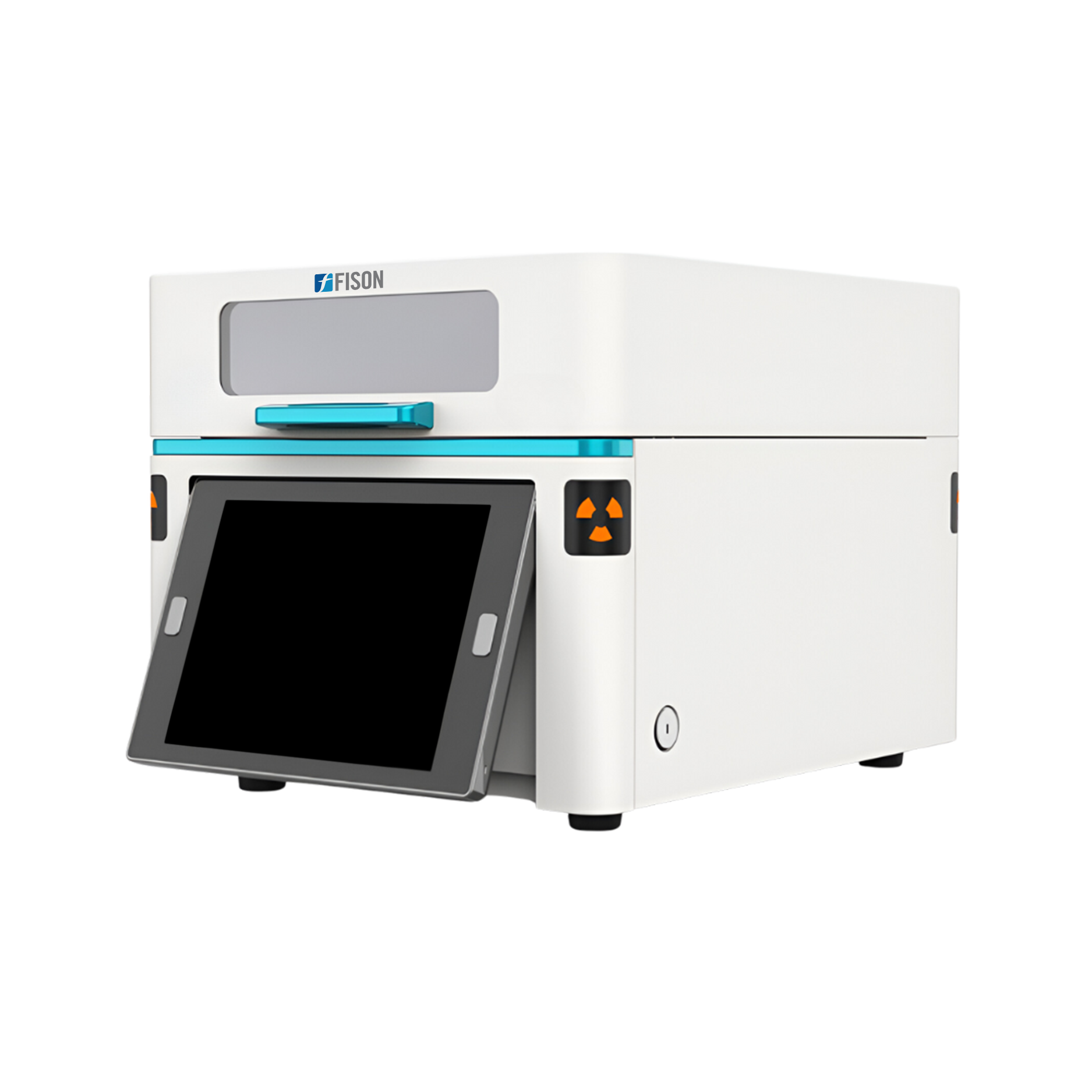

XRF Gold Analyzer FM-XGA-A100 provides an analysis range of 1ppm to 99.99% for precise metal detection. It offers rapid analysis, providing results within seconds. This unit is equipped with a high-resolution Silicon Drift Detector for precise measurements. It features a large touchscreen for easy operation and data reading. It supports solid, powder, and liquid sample forms for versatile analysis.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
XRF Gold Analyzer FM-XGA-A100 offers accurate and rapid analysis of various metals. It is ideal for jewellery industries, environmental monitoring, healthcare and pharmaceuticals sectors.
| Analysis Range | 1ppm to 99.99% |
| Accuracy | ±0.03% (alloy) |
| Sample Form | Solid, powder, liquid |
| Light path | Traditional shine obliquely light path |
| Resolution ratio | 145 ±5eV |
| Detector Type | Si-Pin detector |
| Test Time | Results can be obtained in 5 seconds |
| Measuring Element | All 74 elements from Potassium (K) to Uranium (U) |
| Element Display | Can display 30 kinds of elements |
| Collimator | 2.0 mm |
| Computer | Built in computer, i3 Quad core + Win 11 |
| Display screen | 9.7-inch same touch screen as iPhone |
| Printing method | Supports thermal printing and A4 printing of reports |
| Dimensions | 455 × 345 × 350 mm |
| Weight | 33 Kg |
