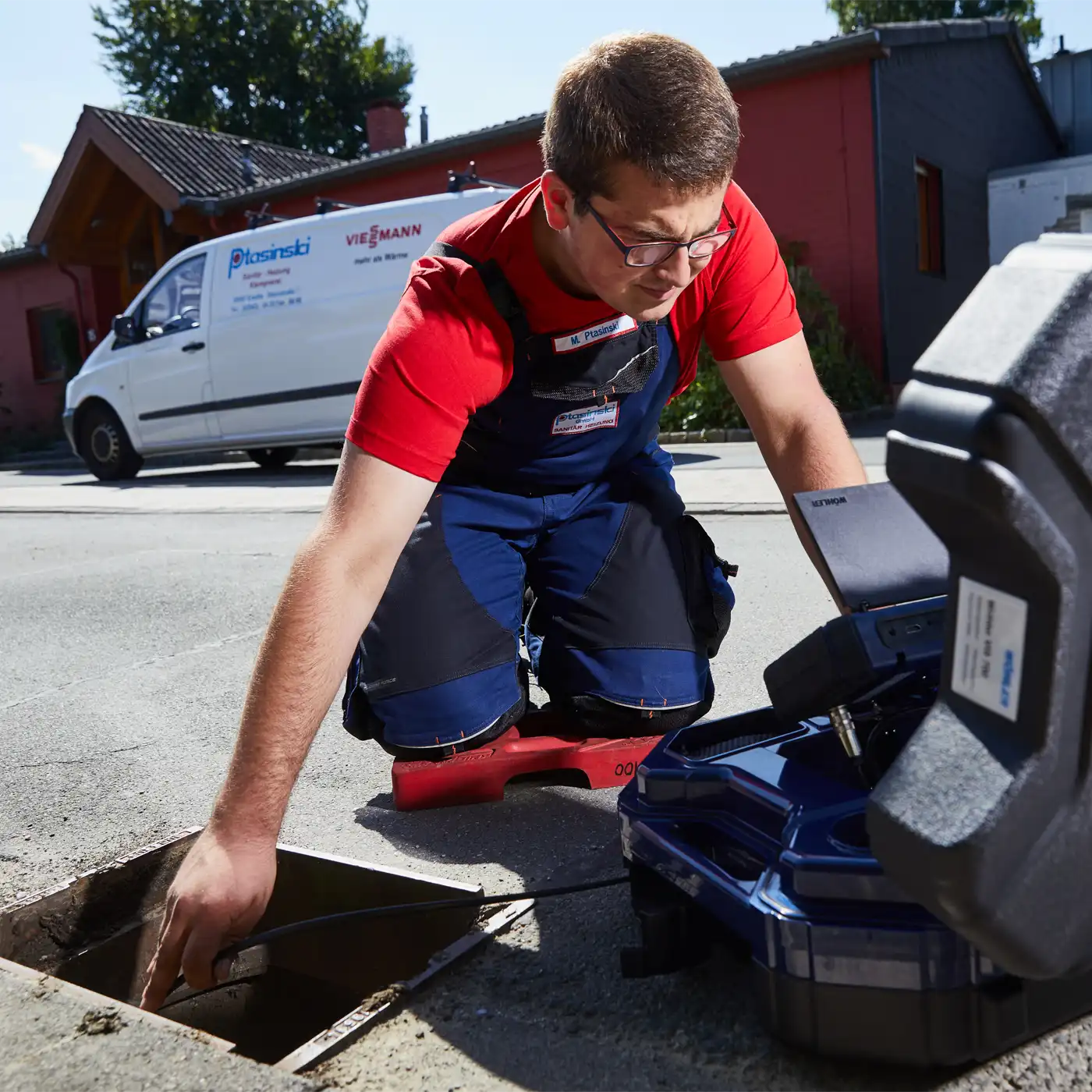

The Wöhler VIS 700 inspection camera offers precisely what professionals have been waiting for: Razor sharp images in HD quality, a focus function for focusing precisely on the object requiring attention, and practical control of the pan&tilt camera head by means of a joystick. Ideal conditions for the inspection of waste water pipes, fl ue gas and ventilation lines as well as NDT applications.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
A new digital high-resolution sensor assures amazingly sharp images. With the Wöhler VIS 700, professionals are able to plan their maintenance services on the basis of clearly visible facts. The displayed level indication ensures you to keep orientation in the pipe. The camera display shows the camera head position and angle for ease of navigation. The home function allows you to realign the camera head straight forward when needed. HD images are displayed for you on the brilliant, touch screen high-resolution monitor. The Wöhler VIS 700 inspection camera is designed to transmit live video data to smart devices via Wireless LAN. While conducting an inspection, you have the option to stream live images and videos on a smartphone or tablet. You can also save all footage to an SD card for reviewing at a later time.

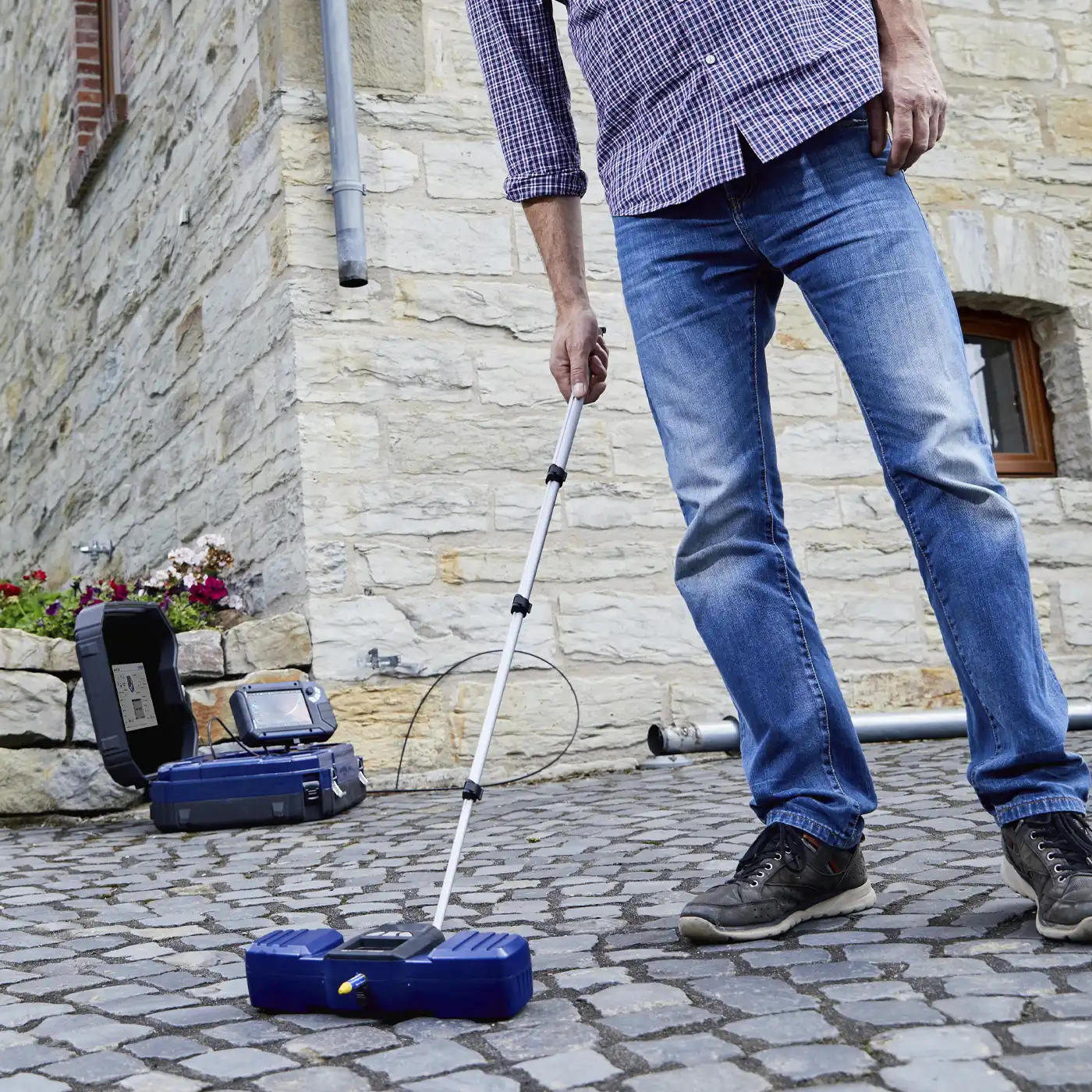

With the Wöhler VIS 700 HD inspection camera, you won’t miss a single detail: The powerful LEDs allow you to see even the darkest pipe sections and reveal deep-seated damage – with additional lighting available on request for absolute clarity down to the last centimeter. Thanks to the self-leveling function, the camera image always remains horizontally aligned. With the flexible interchangeable head system, you can choose between the 40 mm camera head, which can pan 360° and tilt 180° for an all-round view inside the pipe, or the 26 mm miniature camera head for narrow areas. And with the integrated transmitter in the camera head and the Wöhler L 200 locator, you can quickly and accurately locate any weak points—before they become an expensive problem. YOU HAVE THE CHOICE between the Ø 40 mm 360° pan and 180° tilt camera head or the Ø 26 mm miniature camera head. Both HD camera heads are equipped with a self-leveling function. This means that your camera image is automatically aligned horizontally with every movement.

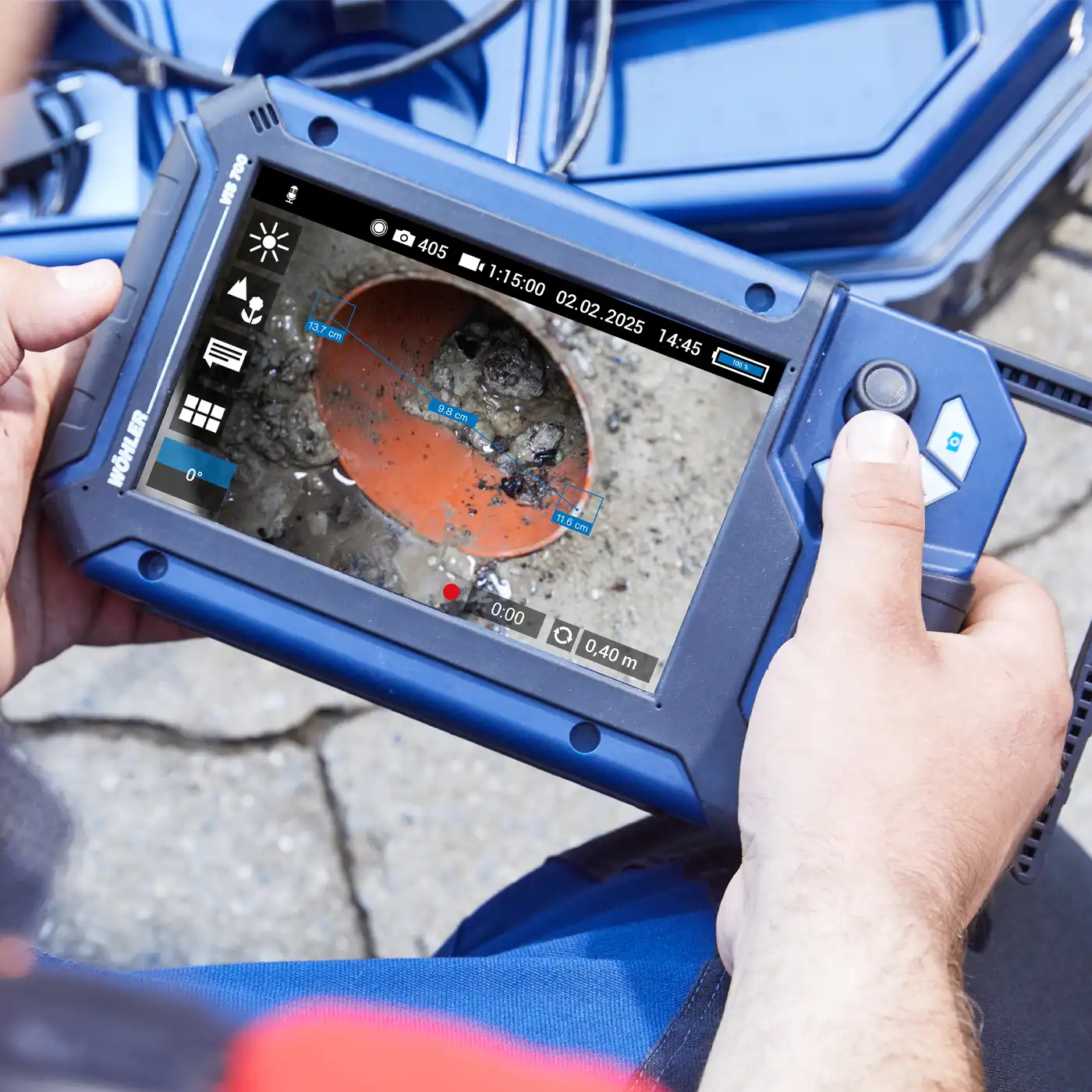

The focus function via touch screen or joystick makes it possible to precisely control the depth of focus. A simple tip on the joystick ensures a precise, crystal clear image on the screen. Additional settings and extras, such as the touch screen keyboard, are accessable by tapping the touchscreen monitor.
With the Wöhler Video Inspection App, you can use your smartphone or tablet as a second display. The camera transmits all image and video data to it via WLAN. Your colleague or customer can then follow the entire video inspection, even if he is positioned at the end of the inspected pipe.
Wöhler | Wöhler | Wöhler | Wöhler | |
|---|---|---|---|---|
| Pan and tilt camera head 1.5″ | ✓ interchangeable | ✓ interchangeable | ✓ interchangeable | |
| Color camera head 1″ dia | ✓ | ✓ optional & interchangeable | ✓ optional & interchangeable | ✓ optional & interchangeable |
| HD-Touchscreen | ✓ | |||
| Resolution | 720 x 576p | 720 x 576p | 720 x 576p | 1280 x 720p (HD) |
| Comment Function | ✓ | |||
| Operation | Keyboard integrated in case | Keyboard integrated in case | Control pad on monitor unit | Joystick / Touchscreen |
| Anti slide stand | Optional anti slide mat | Optional anti slide mat | ✓ Integrated anti-slide pads | ✓ Integrated anti-slide pads |
| Adjustable focus | ✓ | |||
| Object distance measurement function | ✓ | |||
| Push rod distance counter | ✓ | ✓ | ✓ | ✓ |
| Voice recording | via optional headset | ✓ | ||
| Display position and angle | ✓ | ✓ | ✓ | |
| Video & Photo recording | 4 GB SD memory card | 4 GB SD memory card | 4 GB internal memory or optional USB-stick | 8 GB internal memory or optional USB-stick |
| Home function | ✓ | ✓ | ✓ | |
| Transmitter in camera head | ✓ | ✓ | ✓ | ✓ |
| Wohler VIS app incl. report function | ✓ | ✓ | ||
| Operating time | 2 x 2 hours | 2 x 2 hours | 6 hours | 4 hours |
| different configurations possible | ✓ | ✓ | ||
| Removable camera rod | ✓ | ✓ |
