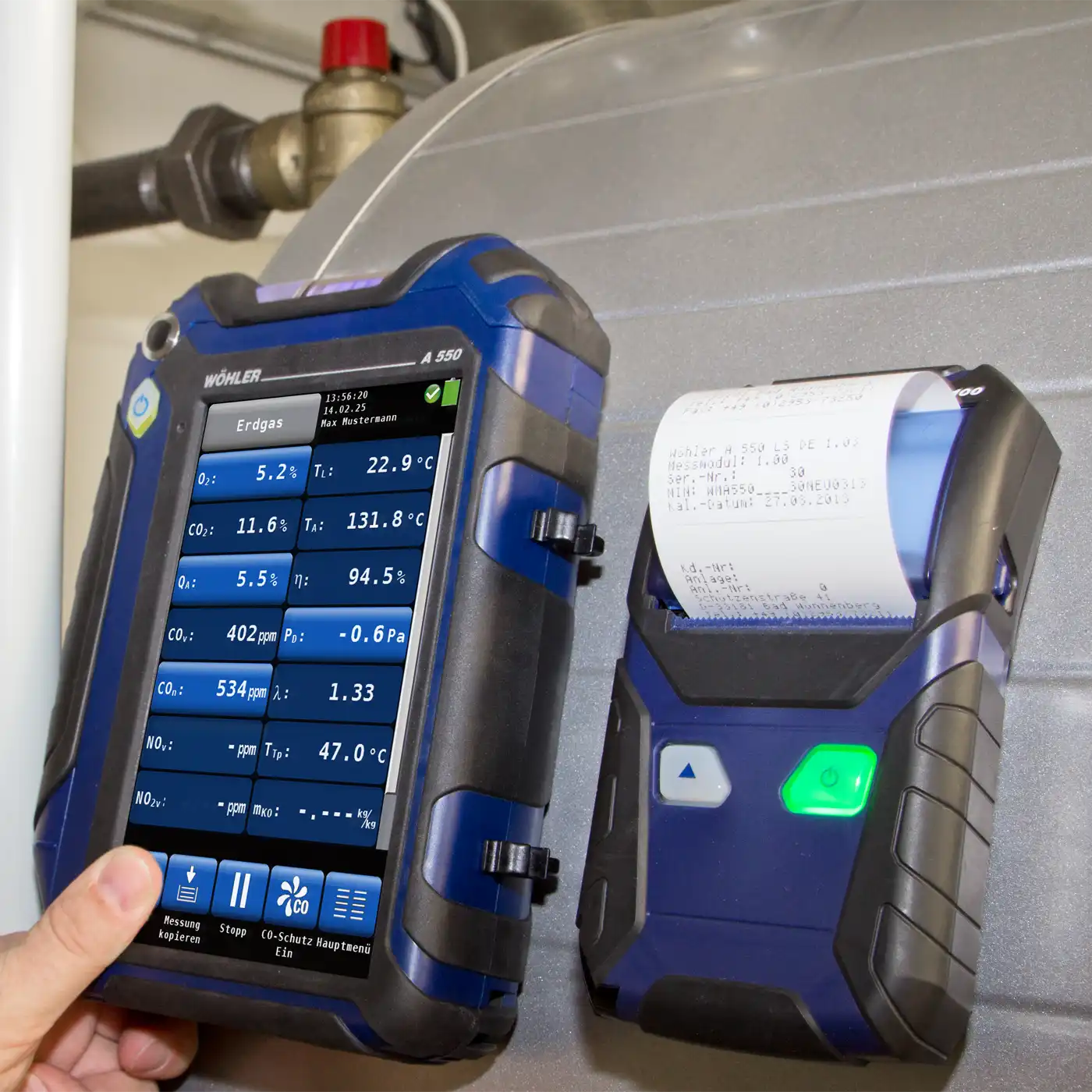

As robust as cast iron, but as easy to operate as a smartphone – that’s what Wöhler’s new flue gas analyser feels like in your hand. Appropriately, the advantages are equally substantial: A tap with your finger on the Wöhler A 550 is all that is required to perform analyses, inspections and settings on residential and commercial appliances. The flue gas analyser is equipped with coded connections for the 4 Pa test and even »NEW AND UNIQUE« a wood moisture content measurement function to VDI Guideline 4206 (VDI = Association of German Engineers).
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
| Wöhler A550 L Flue Gas Analyzer | Wöhler A550 Flue Gas Analyzer | |
|---|---|---|
| Flue Gas Analysis | ✔ | ✔ |
| 4 Pa-Test | ✔ | ✔ |
| Wood moisture | ✔ | ✔ |
| Spillage test | ✔ | ✔ |
| Wöhler Tuning Guide | ✔ | ✔ |
| Possible sensors | 3 | 4 |
| 7″ color touchscreen | ✔ | ✔ |
| Fresh air pump, simultaneous hot spot search and calibration | ✔ | |
| Start-/stop function at probe | ✔ | |
| 1,000 measurement records | ✔ | ✔ |
| USB & infrared | ✔ | ✔ |
| WiFi | ✔ | ✔ |
| CO clean out pump | ✔ | |
| 48-month sensor and Analyzer warranty 1) | ✔ | ✔ |
| Analyzer self diagnostics | ✔ | ✔ |
| Field replaceable sensors | ✔ | ✔ |
| Visual filter alarm | ✔ | ✔ |
| Lithium Ion rechargeable battery with up to 12h battery operating time | ✔ | ✔ |
| Interchangeable probe with 1,7m hose assembly and plug-in probe 285 mm | ✔ | |
| Probe with 1,7m hose assembly and fixed probe 275 mm | ✔ | |
| Probe with 3m hose assembly | optional | |
| Combustion air temperature probe | optional | optional |
| Wood Moisture Probe | optional | optional |
| Pressure measurement adapter for 4 Pa test | optional | |
| 1 water stop filter and 1 coarse filter | ✔ | ✔ |
| 25 wadding filters | ✔ | ✔ |
| Rechargeable battery and USB battery charcher | ✔ | ✔ |
| Case | ✔ | ✔ |
| ✔ = included – optional = retrofit or upgrade ex works, contact us |
