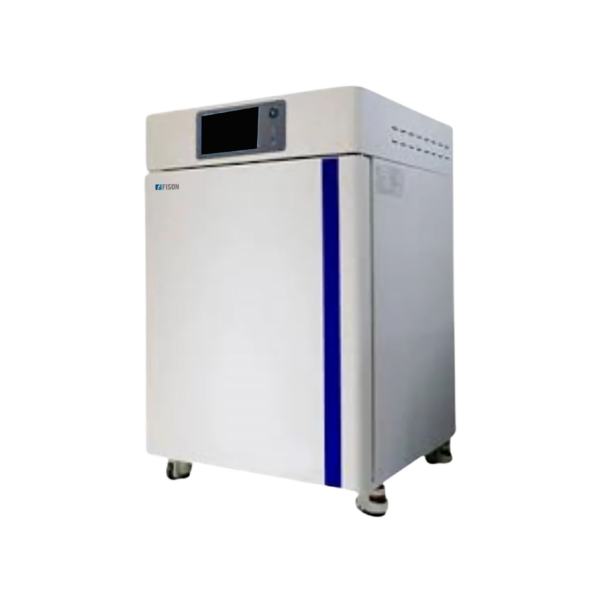

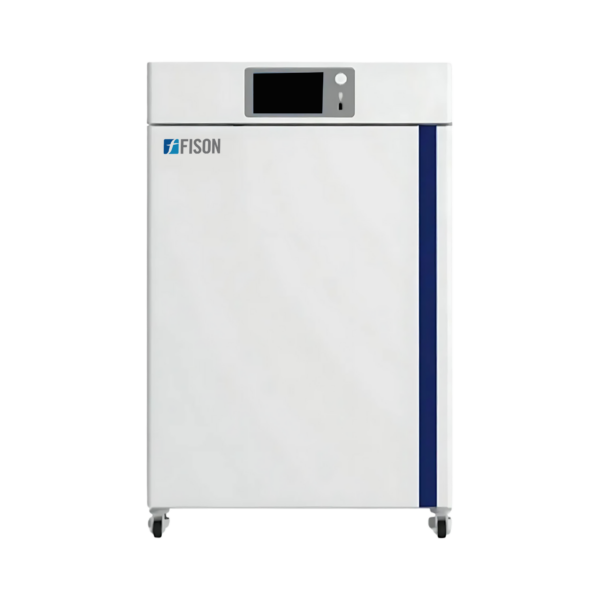

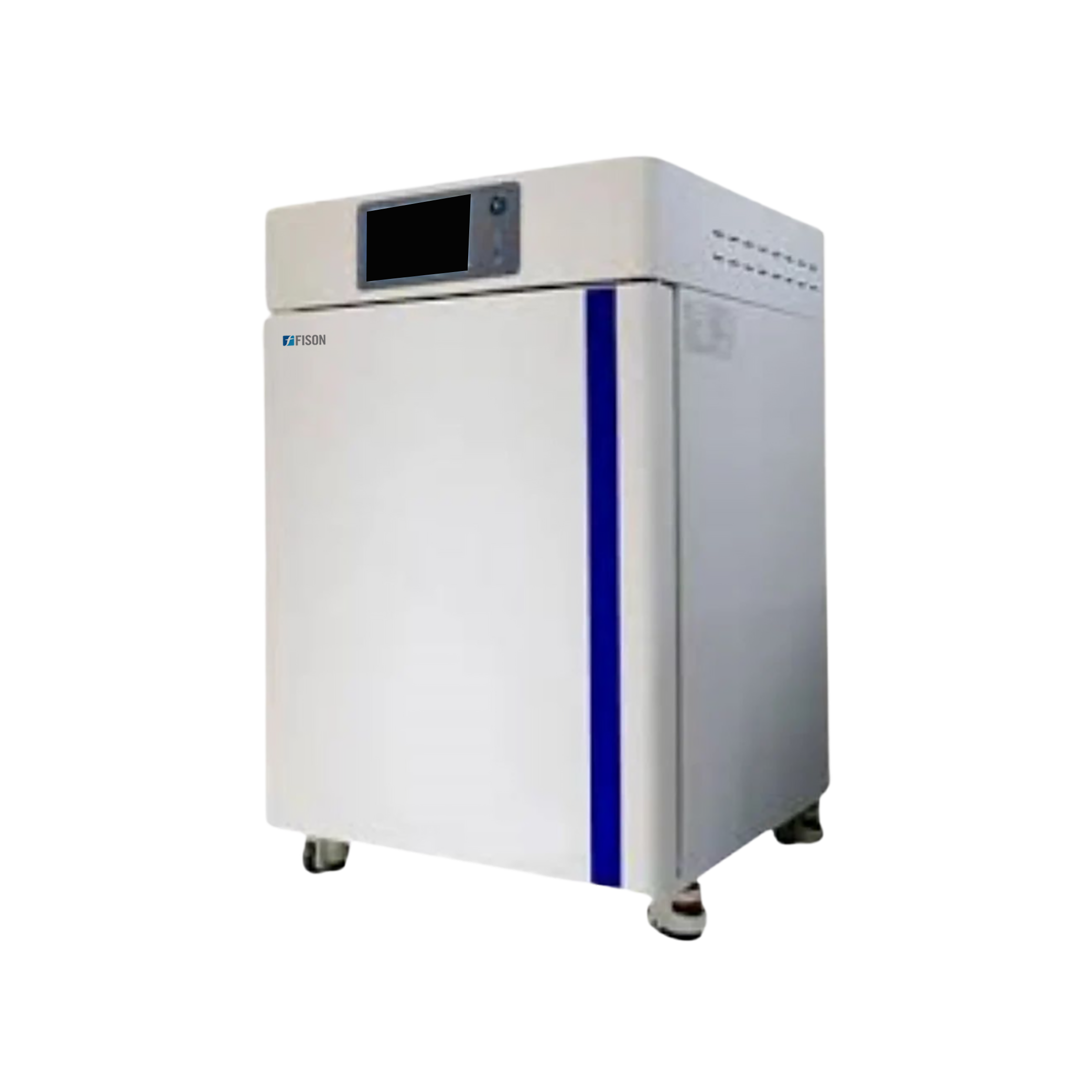

Water Jacketed CO2 Incubator FM-CIW-A101 is a microprocessor PID controlled system, which ensures optimum environment for cell and tissue culture growth. Features 160 L internal chamber volume capacity, HEPA filters for sterilization, infrared sensor to control CO2 concentration etc. to gain precise control over several parameters. It offers reliable in-vitro growth environment and thwarts heat loss by surrounding unit with triple walled construction and temperature-conditioned water jacket.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
It is an ideal choice for laboratories concerned with temperature fluctuations from power outages or significant ambient temperature fluctuations. Water jacketed CO2 incubators are widely used for a broad range of applications that includes tissue engineering, In-vitro fertilization, neuroscience, cancer research, stem cell research, regenerative medicine and mammalian cell research.
| Capacity | 160 L |
| Heating | Water jacket |
| Temperature range | RT&+5&to&60°C |
| Control&type | PID&control |
| Temperature fluctuation | ≤&± 0.2°C (at 37°C) |
| Temperature uniformity | ≤&± 0.3°C (at 37°C) |
| Time&setting | 999 h&or&continuous |
| Alarm system | Over-temperature alarm;&CO2 Concentration alarm; Temperature sensor error alarm; Water-shortage alarm. |
| Interior material | Stainless steel |
| Exterior material | Cold-rolled&steel&with&painting |
| Door&type | Double door |
| Insulation Material | Polystyrene&film |
| CO2 &control&sensor | Infrared sensor |
| CO2measuring range | 0 to 20 % |
| CO2concentration control accuracy | CO2 concentration control error 5% ± 0.1 % |
| Humidification type | Water tank for natural evaporation |
| Sterilization&type | HEPA Filter |
| Shelves | 2 pcs/ adjustable |
| Caster type | Foot master caster |
| Interface | USB port |
| Power supply | 220 V±10%，50/60 Hz |
| Maximum power consumption | 1000 W |
| Internal dimension (W×D×H)& | 498×480×722 mm |
| External&dimension (W×D×H)& | 747×654×1260 mm |
| Packaging dimension (W×D×H) | 877×784×1430 mm |
| Gross Weight | 198 kg |
