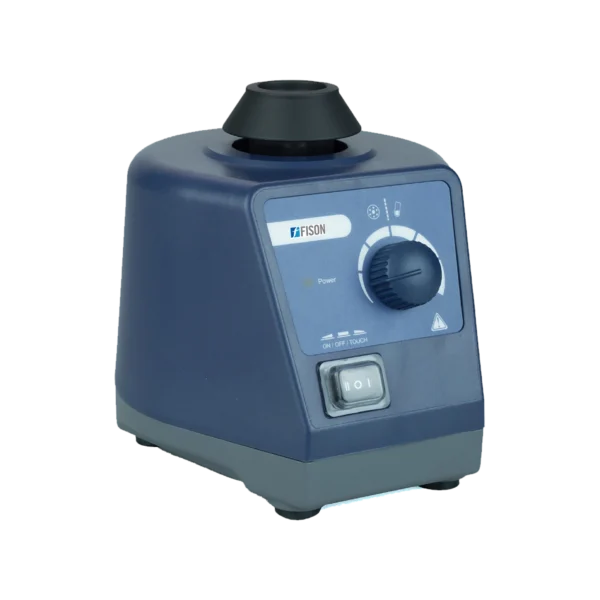

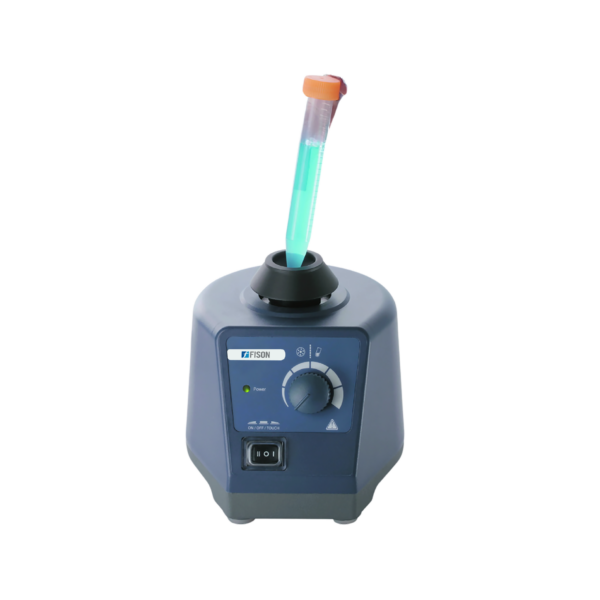

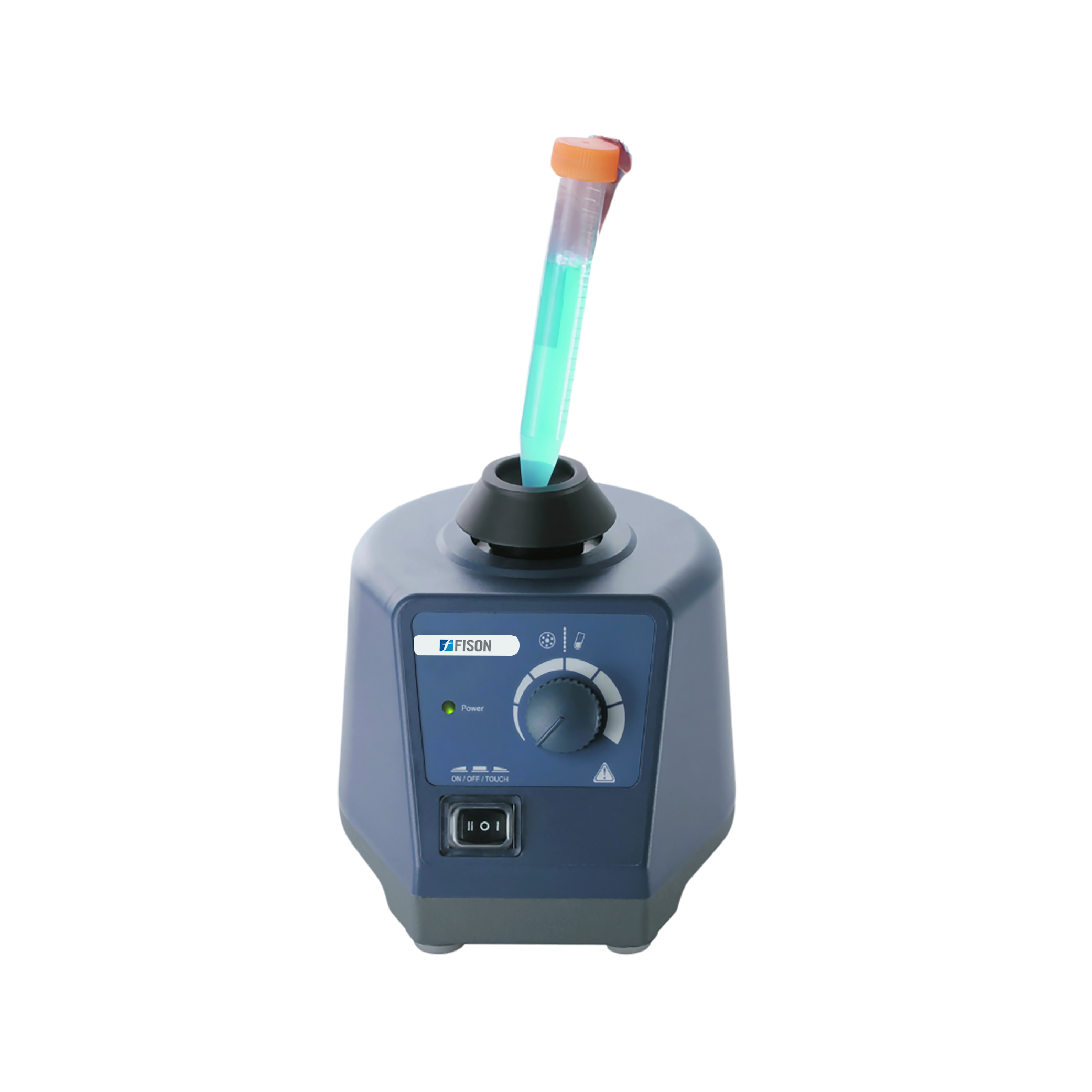

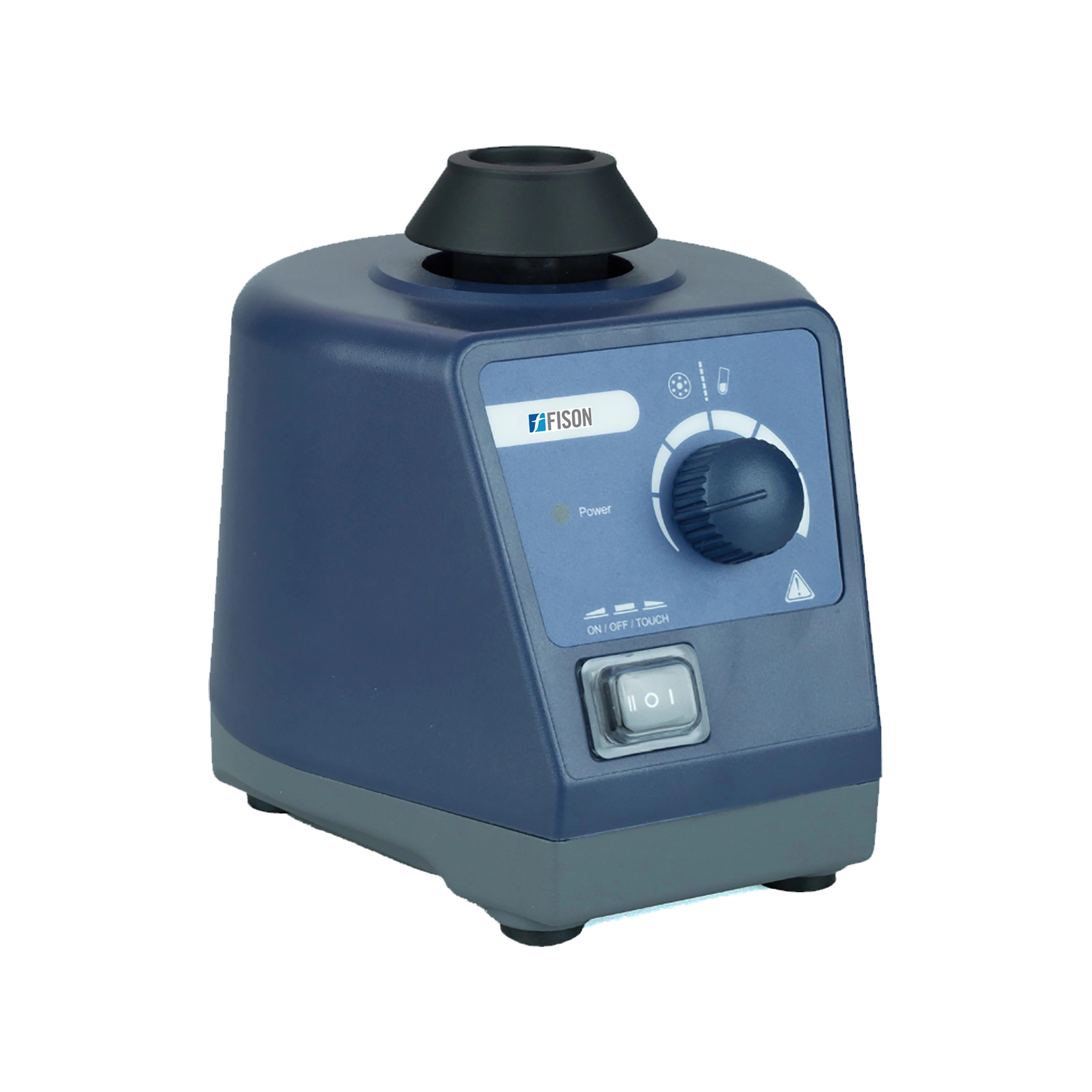

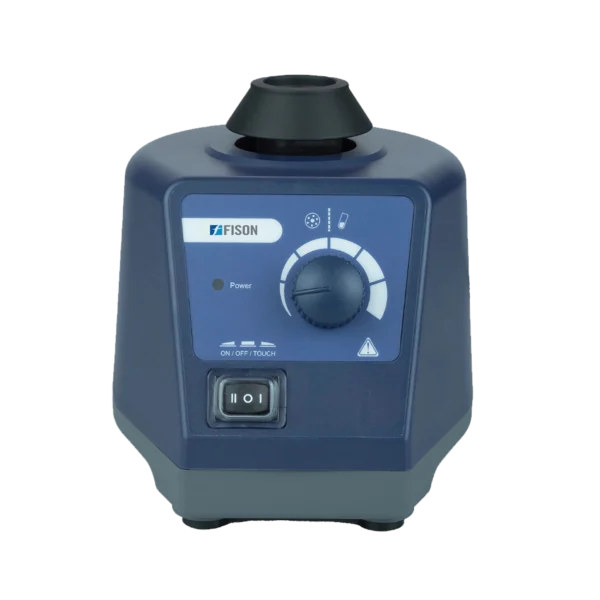

Vortex Mixer FM-VM-A200 is a compact, bench-top device offers orbital shaking with continuous/touch operation mode. It features adjustable speed range 0 to 2500 rpm, LED power indicator, aluminum cast base, two directional power switch with IP21 protection level, and works well under 5° to 40°C ambient temperature. Equipped with shaded pole motor to provide variable speed range, specially designed vacuum suction feet for body stability, can be used for various mixing applications with optional adapters.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Vortex Mixers used for mixing liquid components in tubes, re-suspension of cells, across bioscience, microbiology, biochemical research and analytical laboratories.
| Shaking Mode | Orbital |
| Orbital Diameter | 4 mm |
| Speed Range | 0 to 2500 rpm |
| Speed operation | Adjustable |
| Speed Display | Scale |
| Operation Mode | Continuous/touch operation |
| Speed Control | Knob |
| Power switch | Two directional |
| Ambient Temp. | 5 to 40℃ |
| Relative Humidity | 0.8 |
| Protection Type | IP21 |
| Cast base | Aluminum |
| Feet | Vacuum suction |
| Motor type | Shaded pole motor |
| Motor Input | 58 W |
| Motor Output | 10 W |
| Power Consumption | 60 W |
| Power supply | AC110/220 V ± 10%, 50/60 Hz |
| Dimensions (W×D×H) | 127×160×130mm |
| Weight | 3.5 kg |
