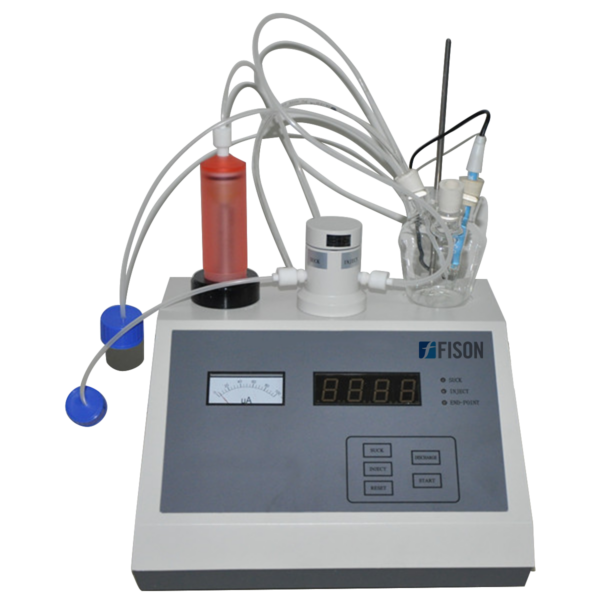

Volumetric Karl Fischer Titrator FM-AKT-B100

Volumetric Karl Fischer Titrator FM-AKT-B100

SKU: 4e81ee132da0 Categories: , Brand:

Volumetric Karl Fischer Titrator FM-AKT-B100 is designed for a wide range of water content application ranging from 3 ppm to 100% of moisture by Volumetric method. Solid or Sticky samples are placed directly into titration vessel and automatic titration is carried out with standard pyridine reagent. This powerful titrator automatically dispenses titrant, detects endpoint, and performs all necessary calculations and graphs. The endpoint is measured in µA and displayed on current meter.

Maximize Your Machine Potential

At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.

Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.

Contact Us

Description

Features

  • Built in unit with standards ISO 10337, ASTM D 1744, ISO 760, ASTM E203
  • Measuring range: 3 ppm to 100 % and burette resolution: 0.01 ml
  • High bright LED, clear display and touch panel buttons
  • Speed drop function for automatic control of electrode polarization voltage speed
  • Whole measurement process utilizes less than ten seconds of time
  • Current meter displays endpoint current readings in µA
  • Glass and PTFE titration cell and fittings are designed to withstand the harsh solvents and reagents
  • Special polarization voltage detector electrode to determine end reaction of titration
  • Titration vessel is completely sealed to minimize exposure of ambient humidity, keeps the system dry, and reduce titrant consumption
  • Instrument features function keys for solvent inhalation, determination, test end display (alarm), waste water discharge
  • Automatic compensation of error by adopting electrolyte blank current and equilibrium point drift compensation
  • A fully enclosed piping system to avoid escape of toxic gases, protects environment and health
  • Smooth running operation without background noise

Applications

It is ideal for the determination of water in wide range of samples ranging from Raw Materials through Cosmetics, Pharmaceuticals, Food Stuffs, Plastics, etc. upto Gaseous Samples.

Titration methodVolumetric Karl-Fischer reagent titration process
Measuring range0.1 mg H 2 O to 500 mg H 2 O (3 ppm – 100%)
Moisture resolution3 ppm
Number of burettes1 burette
Burette capacity＞25 ml
Burette resolution0.01 ml
Burette Repeatability≤ 0.01
Linear correlation coefficient≥ 0.998
End point detectionAC polarization potential difference detection
Minimum volume of addition0.005 ml
Capacity error≤ ± 0.002
Relative error≤ 0.02%
Sensitivity10 -6 A
DisplayLED, clear display
Display unitmL, mg H 2 O, %, or ppm
Calculation functionConcentration calculation, Factor standardization, Statistics calculation, recalculation
Printout ContentsMeasurement date, Sample number, Titration volume(mL), Measurement value(mg H 2 O), Sample quantity, Moisture content, Mean value, Standard deviation, CV, Moisture quantity-time curve, Other preset titration parameters.
Power supplyAC 240 V, 60 Hz
Dimension360 × 370 × 380 × mm
Weight6 kg
