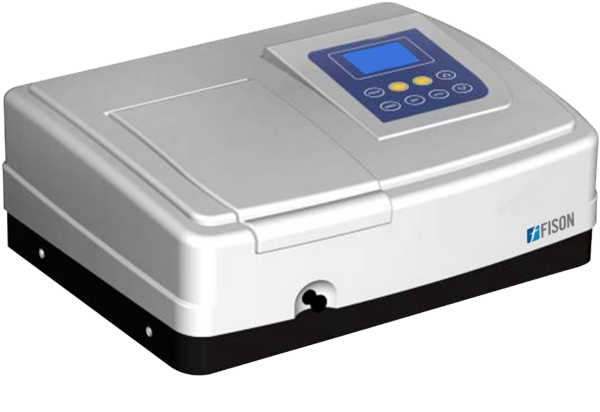

Visible Spectrophotometer FM-VS-A101 is a single beam visible spectrophotometer with large LCD display screen and 4 cell holder capacity. It has wavelength in range of 325 nm to 1000 nm with 4 nm spectral bandwidth and 0.8 nm wavelength repeatability. It uses silicon photo diode detector and tungsten lamp as light source which provides the best wavelength coverage across the working range of the spectrophotometer. This single beam spectrophotometer has highly stable optics with 1200 lines/mm grating. System save test results up to 200 group data and 100 standard curves.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for quantitative and qualitative analysis, detection of impurities, functional groups determination and identification of unknown compound.
| Wavelength range | 325 nm to 1000 nm |
| Spectral bandwidth | 4 nm |
| Optical system | Single beam, grating 1200 lines / mm |
| Wavelength accuracy | ± 2 nm |
| Wavelength repeatability | 0.8 nm |
| Photometric range | T: 0 to 200% , A: (-0.3) to 3, C: 0 to 9999 |
| Photometric accuracy | T: ≤ ±0.5%, A: ±0.003 % @ 1 A |
| Light source | Tungsten lamp |
| Stray light | 0.3 % T |
| Stability | ±0.002 A/h @ 500 nm |
| Display | LCD (128 × 64 dots) |
| Standard cell holder | 4 position 10 mm cell changer |
| Sample compartment | Standard 10 mm path length cuvette |
| Detector | Silicon photodiode |
| Output | USB port and parallel port (printer) |
| Power requirement | AC 110 / 220 V, 50 / 60 Hz |
| Dimensions (W × D × H) | 470 × 370 × 180 mm |
| Weight | 12 kg |
