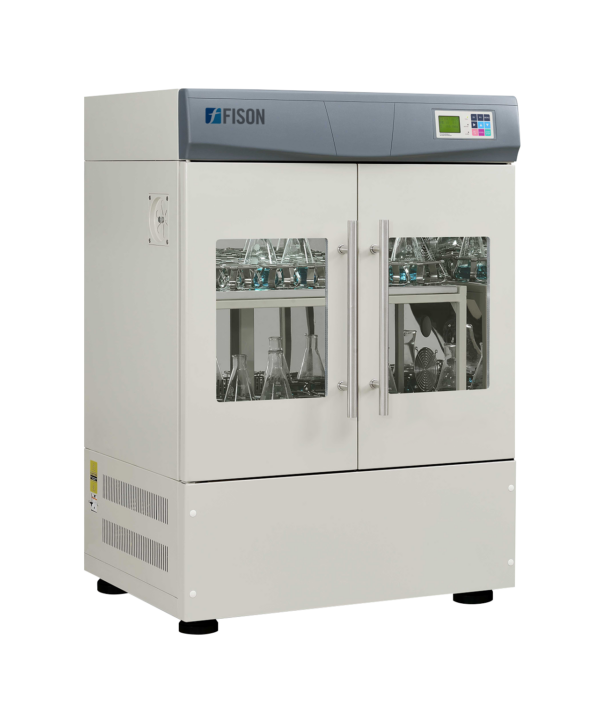

Vertical Shaking Incubator FM-SI-A303 with reciprocal shaking mode is a microprocessor PID controlled system along LCD backlight display. It comes with high precision shaking speed range of 30 to 300 rpm and temperature function. Designed as double door unit with double layer and transparent window for clear observation. Inside chamber is made up of stainless steel & outer body is made up of cold-rolled steel with antibacterial power coating. The large LCD screen displays multiple data at same time and CFC free, R134a refrigerant provides efficient cooling system. Its smooth running start/stop system helps in preventing liquid spillage. It is useful for quality, research and testing purpose across laboratories, institutes.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for microbial cell cultures, entomology, solubility tests, metabolic studies, stability studies, haematological studies, food processing, quality control analysis, mixing of reagents, pilot scale and pharmacy experiments.
| Chamber Capacity | 639 L |
| Controller | PID (Environmental Scanning Microprocessor） |
| Shaking mode | Reciprocal |
| Rotating speed | 30 to 300 rpm |
| Rotating accuracy | ± 1 rpm |
| Vibration range | 35 mm |
| Temperature range | 4°C to 60°C |
| Temperature accuracy | ± 0.1°C |
| Temperature uniformity | ± 1°C |
| Working environment temperature | 25 °C |
| Working environment humidity | 20% to 90% |
| Drive mode | Single shaft balance device |
| Circulation mode | High speed convection |
| Display | LCD (simultaneous display of working and set parameters) |
| Refrigerant | CFC free, R134a refrigerant |
| Cooling consumption | 230 W |
| Heating consumption | 800 W |
| Timing range | 0 to 999.59 h continuous |
| Shaking plate size | 920 × 520 mm |
| Shaking plate quantity | 2 pcs |
| Chamber material | Polishedstainless steel |
| External material | Steel |
| Safety function | Audio and visual alarm for over temperature, alarm for over speed |
| Power | 1340 W |
| Power supply | AC 220 V to 240 V, 50/60 Hz |
| Internal dimension (W × D × H) | 1100 × 700 × 830 mm |
| External dimension (W × D × H) | 1200 × 850 × 1550 mm |
| Net weight | 356 kg |
