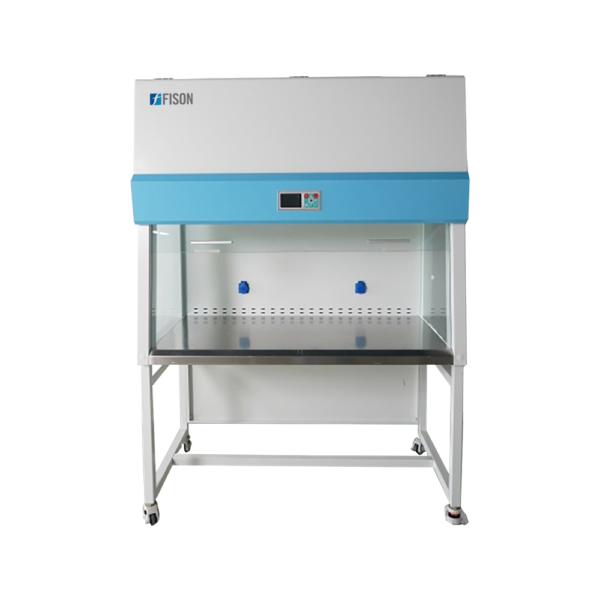

Vertical Laminar Flow Cabinet FM-VLC-A101 creates contamination-free workspace with adjustable airflow velocity of 0.2 to 0.5 m/s. Incorporated with pre-filter and HEPA filter to eliminate 99.99% of particles as tiny as 0.3 µm. Equipped with lamp emitting 253.7 nm of ultra-violet light for effective sterilization. Built with UV-resistant glass and antimicrobial powder coating for enhanced protection. Our Laminar Fow Cabinet safeguards both user and product by providing vertical and unidirectional stream of air.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Vertical Laminar Flow Cabinet provides sterile environment for handling biological samples, pharmaceuticals, chemicals and other sensitive materials.
| External Dimensions (W × D × H) | 1320 × 710 × 1850 mm |
| Internal Dimensions (W × D × H) | 1220 × 615 × 625 mm |
| Work Surface Height | 750 mm |
| Airflow Velocity | 0.2 to 0.5 m/s |
| Noise | ≤ 62 dB (A) |
| Lighting Lamp Type | LED |
| Lighting Lamp Intensity | ≥ 900 lux |
| Lighting Lamp Power | 9.6 W |
| UV Lamp | Emission of 253.7 nm with timing function |
| UV Power | 30 W |
| HEPA Filter Efficiency | > 99.995% at particle size of 0.3 μm |
| HEPA Filter Dimensions (W × D × H) | 1190 × 470 × 70 mm |
| Pre-filter Type | Washable polyester fiber |
| Pre-filter Dimensions (W × D × H) | 800 × 425 × 2 mm |
| Main Body Material Type | Electro-galvanized steel with antimicrobial powder coating |
| Work Zone Material Type | Stainless steel, grade 304 |
| Manual Sliding Sash | 5 mm UV resistant tempered glass with counter-balance system and handle |
| Side Windows | 5 mm UV Resistant tempered glass |
| Power Consumption | 285 W |
| Power Supply | AC 220 V ± 10%, 50/60 Hz |
| Packaging Dimensions (W × D × H) | 1640 × 1000 × 1340 mm |
| Weight | 255 kg |
