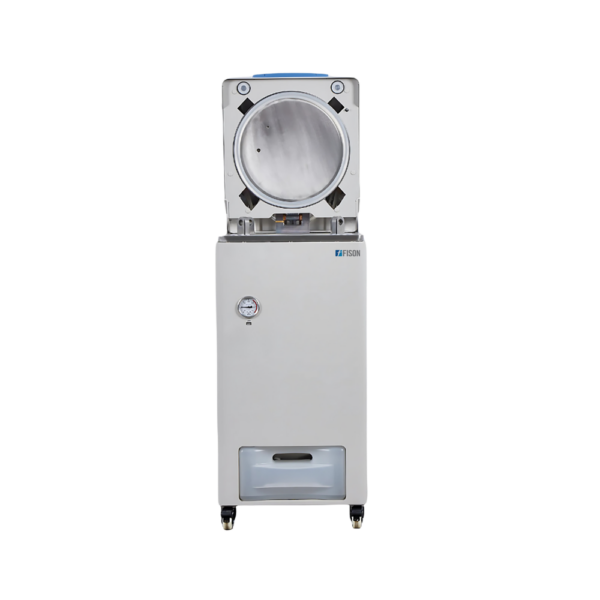

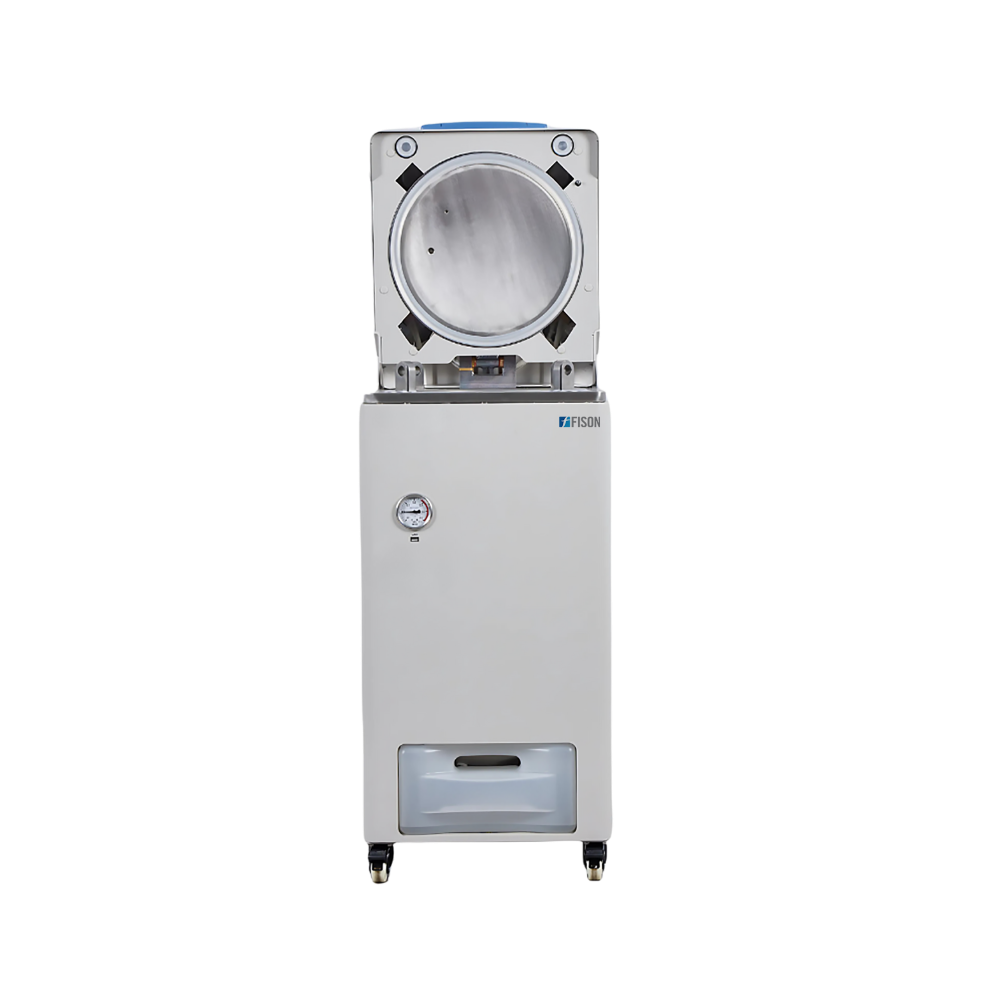

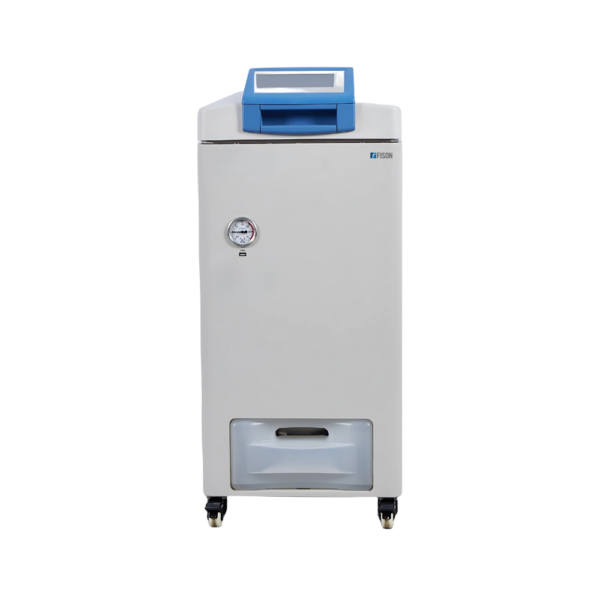

Vertical Autoclave FM-VA-C100 offers a spacious 120L capacity for sterilizing large batches efficiently. It operates at 105°C to 138°C, ensuring reliable decontamination for various applications. Its automated water filling system includes an integrated water tank, ensuring continuous and hassle-free operation. Our autoclave features an intuitive 7-inch color LCD touchscreen that supports glove-friendly and pen-touch operation for seamless control.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Vertical Autoclave FM-VA-C100 is used for sterilization and is widely used in Medical and Healthcare, Laboratories and Research Institutes, the Food and Beverage Industry, Veterinary Clinics, Educational Institutions, and the Industrial and Cosmetic Industry.
| Capacity | 120 L |
| Sterilization Temperature Range | 105°C to 138°C |
| Pressure Gauge | -0.1 to 0.5 MPa |
| Pressure Valve Set Pressure | 0.29 MPa |
| Chamber Material | SUS304 Steel (option SUS316L) |
| Working Environment | 5°C to 40°C, Relative Humidity ≤85% |
| Temperature Display Accuracy | 0.1°C |
| Lid Open Way | One-button Open with Interlock Sensor |
| Sterilization Time Range | 1 to 6000 min |
| Melting Temperature | 60°C to 115°C |
| Melting Time | 1 to 6000 min |
| Warming Temperature | 45°C to 79°C |
| Warming Time | 1 to 9999 min |
| Drying Time | 1min to 300min |
| Exhaust Speed Control | Fully Automatic Internal Discharging with 6 levels |
| Memory Function | 60 Programs Saved in System, 999 Cycles Saved by USB |
| Appointment Timer Range | Auto Start-up Appointment: 0 to 15 days |
| Cooling Lock OPEN Temperature Range | 40°C to 99°C (Solid, Waste, Agar, Self-defined) 40°C to 80°C (Liquid) |
| Sterilization Modes | Liquid, Liquid with Warming, Solid, Wrapped Instrument, Fabric, Rubber, Fast, Waste, Agar, Self-defined |
| Controller | Inspiration II Smart Microcomputer Controller |
| Cooling Way | Fast Cooling Fan |
| Safety Devices | Evenly Distributed interlock device, Electric double interlock, Lid closing check, Dry scorch protection, Safety valve, Water level sensor, Over-temperature/Pressure protection, Temperature/Pressure monitor, Electrical safety (Overcurrent/Short circuit/leakage), Cooling lock, Anti-scald lid and bench corner, and Automatic Troubleshooting |
| Biosafety Function | Option for 0.2µm Biosafety Filter (basic model + S) |
| Rated Power (W) | 4600 |
| Power Requirement | 220V+10% 32A 50HZ/60HZ |
| Chamber Dimensions (Dia × H) (mm) | Ø500×658 |
| Outer Dimensions (Dia × H) (mm) | 665×1090 |
| Net Weight | 267kg |
