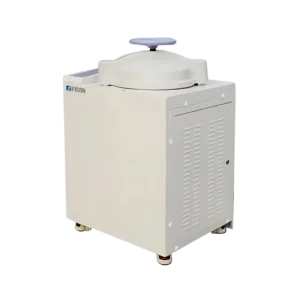

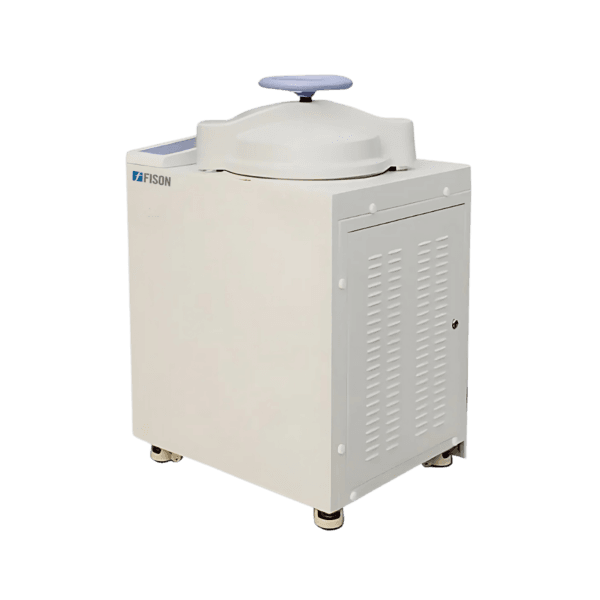

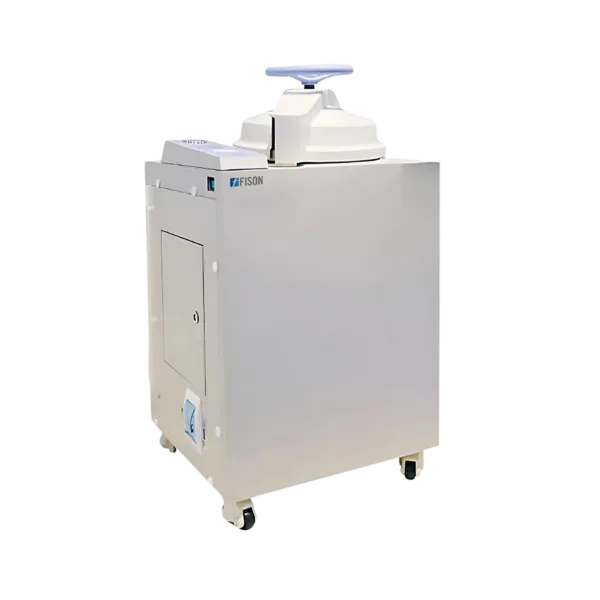

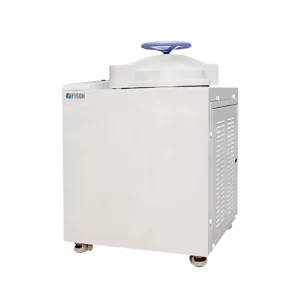

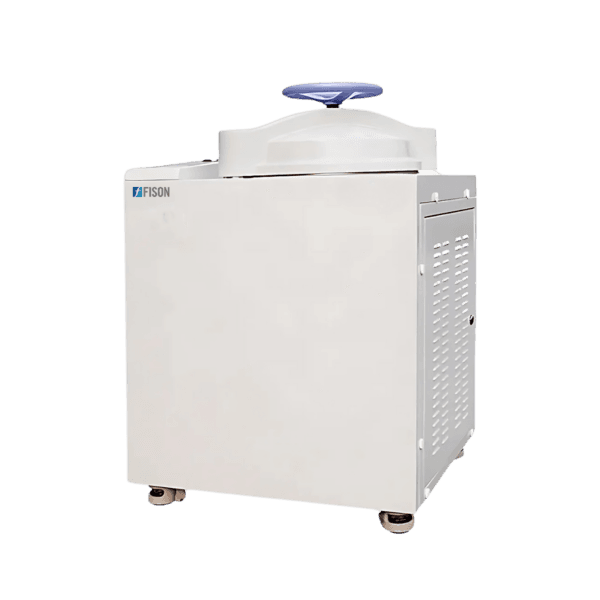

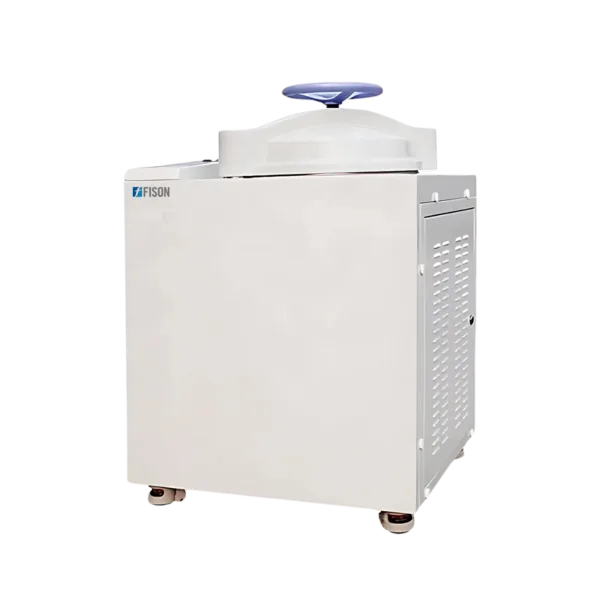

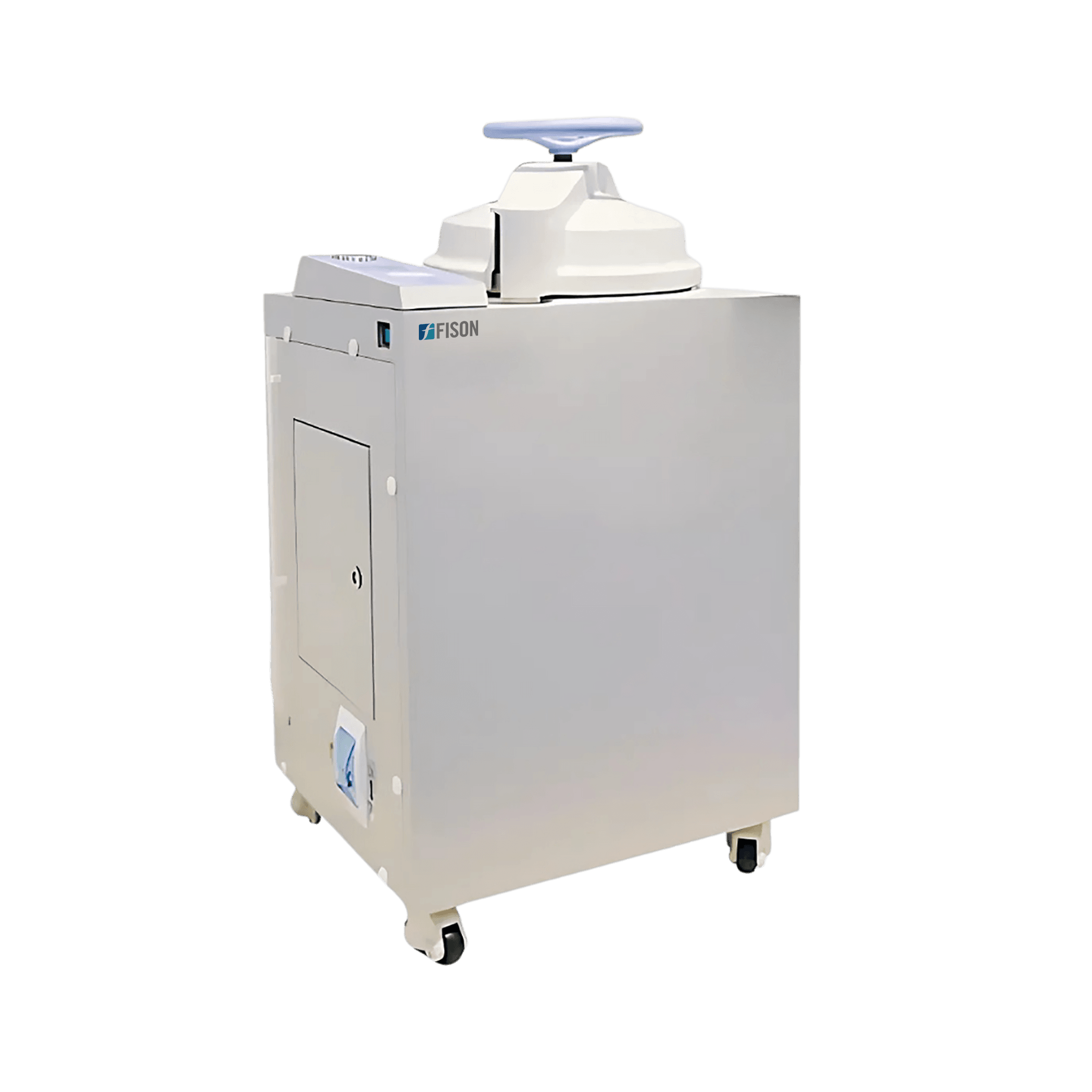

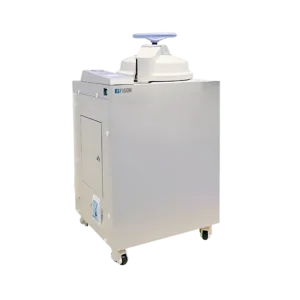

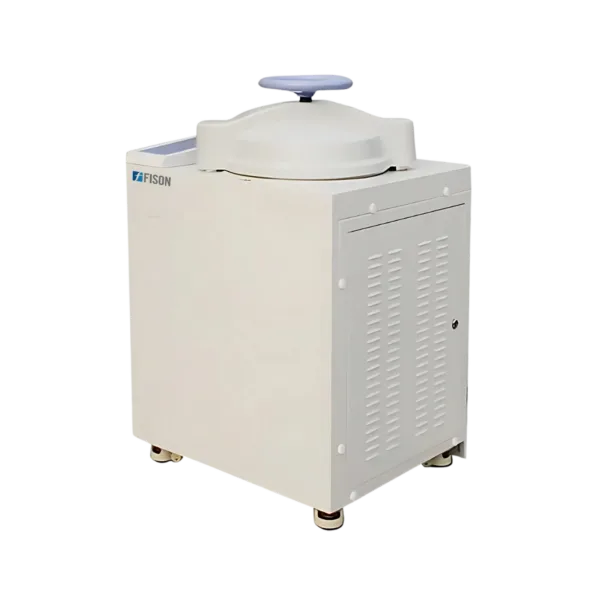

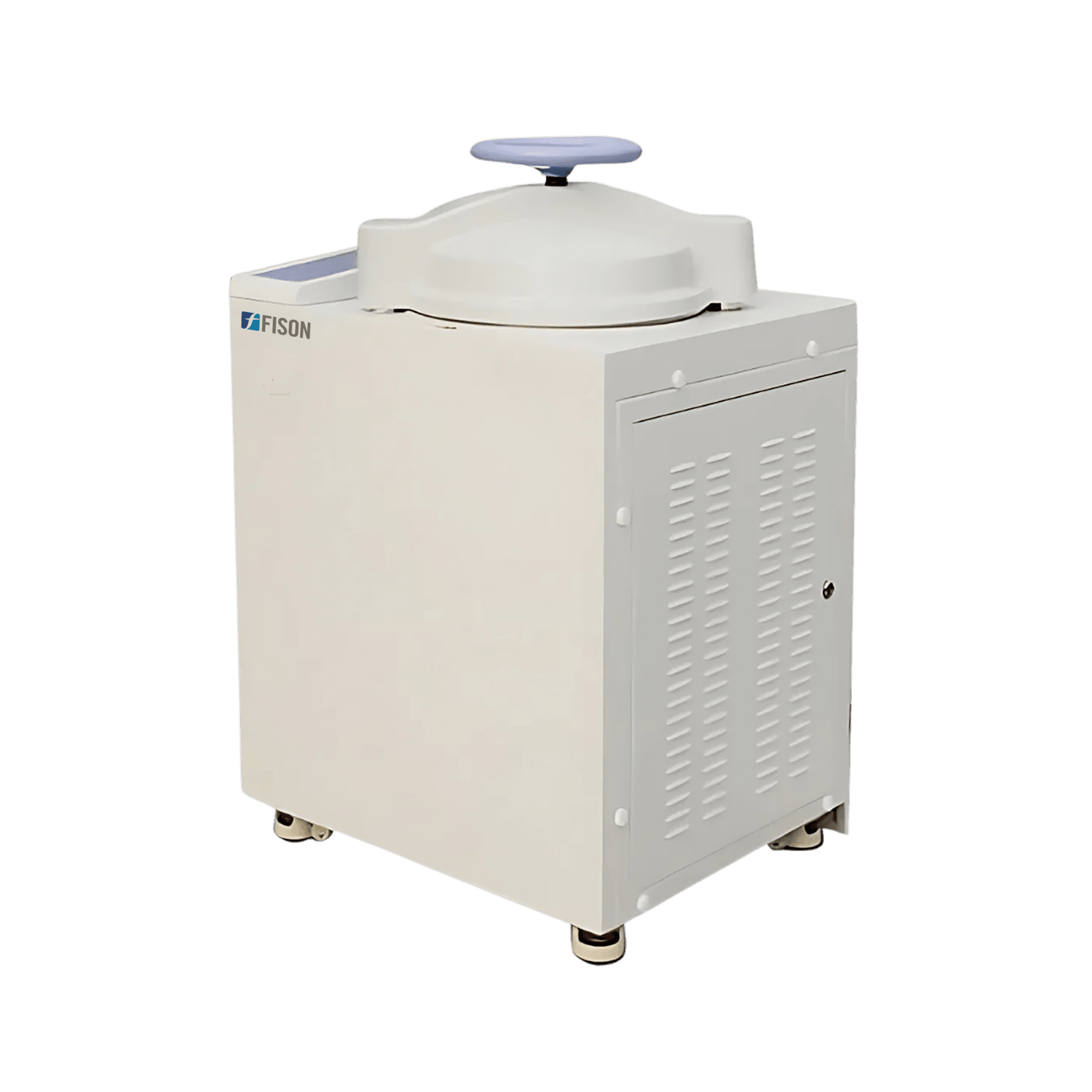

Vertical Autoclave FM-VA-B204

SKU: c4910ad87893 Categories: Autoclave, Lab Equipment, Vertical Autoclave Brand: Fison

Vertical Autoclave FM-VA-B204 offers a capacity of 75L and operates within a temperature range of 105 to 136℃. It features single-chip microcomputer control, enabling fully automatic heating and release functions. Utilizes gravity displacement and positive pressure pulsation exhaust to remove load and cold air from the sterilization chamber. Provides 4 preset and 1 customizable program for sterilization of wrapped or unwrapped items, rubber products, dressings, and other materials.

Maximize Your Machine Potential

At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.

Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.

Description

Features

Equipped with LED screen display
SUS304 stainless steel sterilization chamber and basket
Audio and visual safety alarms
Water shortage protection function
Door safety protection
Power safety and anti-dry burning protection
Hand wheel-operated door opening
Over-pressure and over-temperature protection
Includes an optional sterilization bucket
Quick access window for easy maintenance

Applications

Vertical Autoclave is used for sterilizing laboratory equipment, glassware, surgical instruments, culture media, and food containers. It finds applications in laboratories, hospitals, research facilities, pharmaceutical manufacturing, and the food industry.

Capacity	75L
Chamber Size	Φ 386 × 695 mm
Chamber Material	SS30408
Designed Pressure	0.28MPa
Designed Temperature	150℃
Working Pressure	0.23Mpa
Working Temperature	105 to 136℃
Temperature Display Accuracy	0.1℃
Timing Range	0 to 999min
Dynamic Pulse Exhaust Times	0 to 9 times
Dynamic Pulse Exhaust Temperatures	105 to 134℃
Standard SS Basket	2pcs
Basket Size	Φ 365 × 260 mm
Dimension (W × D × H)	640 × 550 × 1080 mm
Packing Dimension (W × D × H)	750 × 745 × 1240 mm
Weight	115 kg
