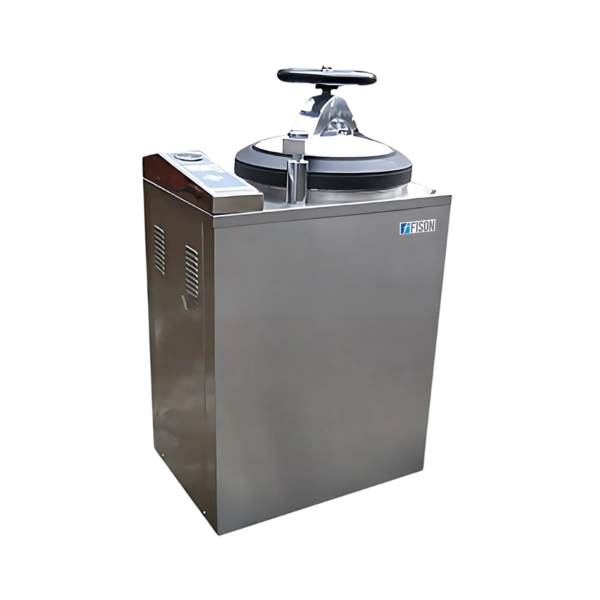

Vertical Autoclave FM-VA-A202 is a top loader sterility autoclave with a 100 L capacity, 134°C sterilization temperature and 0.22 MPa hydraulic pressure. It has hand wheel type quick door open structure design. Equipped with two stainless steel baskets and indicator light to indicate working status of the sterilization process. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property and PT/TT testing connector. It is CE certified vertical autoclave.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Especially designed for clinical disposal, biochemistry, pharmaceutical industry, health care industry, fertilizer plant, brewery industry, biotechnology, microbiology and scientific research.
| Capacity | 100 L |
| Sterilization temperature | 134°C |
| Sterilization pressure | 0.22 MPa |
| Timer range | 0 to 99 min |
| Temperature adjustment range | 105 to 134°C |
| Control Precision: Temperature | ≤ ±1°C |
| Digital display | Yes |
| Maximum power consumption | 4.5 kW |
| Power supply | AC 220 V 50 Hz |
| Chamber dimension (Φ × D) | 440 × 650 mm |
| Dimension (L × W × H) | 750 × 550 × 13050 mm |
| Packaging dimension (L × W × H) | 840 × 640 × 1410 mm |
| Net weight | 128 kg |
| Gross weight | 160 kg |
