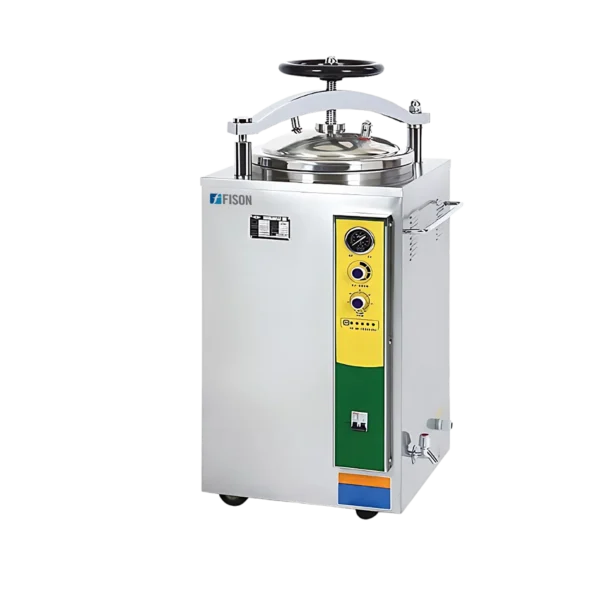

Vertical Autoclave FM-VA-A102 is a top loader sterility autoclave with a 75 L capacity and 134°C sterilization temperature and 0.22 MPa working sterilization pressure. It has hand wheel type quick door open structure design. Equipped with two stainless steel baskets and indicator light to indicate working status of the sterilization process. Designed with four wheels (castors) at base for easy movement of the unit. It provides auto protection against over temperature, over pressure. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance. It is CE certified vertical autoclave.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
It is designed for clinical disposal, biochemistry, pharmaceutical industry, health care industry, fertilizer plant, brewery industry, biotechnology, microbiology and scientific research.
| Capacity | 75 L |
| Sterilization temperature | 134°C |
| Wokring sterilization pressure | 0.22 MPa |
| Timer range | 0 to 60 min |
| Control Precision: Temperature | ≤ ± 1°C |
| Digital display | No |
| Maximum power consumption | 4.5 kW |
| Power supply | AC 220 V, 50 Hz |
| Chamber dimension (Φ × D) | 400 × 600 mm |
| Dimension (L × W × H) | 580 × 560 × 1120 mm |
| Packagingdimension (L × W × H) | 650 × 630 × 1280 mm |
| Net weight | 80 kg |
| Gross weight | 100 kg |
