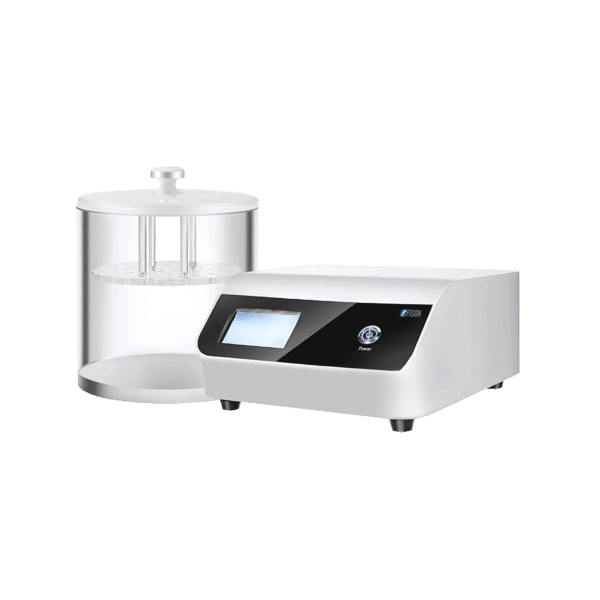

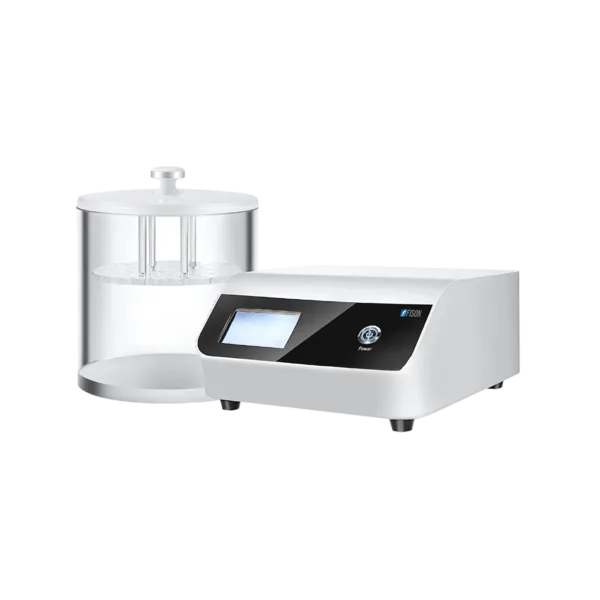

Vacuum Leakage Tester FM-VLT-A100 has a vacuum degree of 0 to -95 kPa for precise leak detection in various applications. Its advanced pneumatic technology delivers reliable performance and efficiency. This has an automatic return mechanism to enhance operational convenience and safety. The manual stop capability allows users greater control during testing procedures. Our tester LCD provides clear and accurate test data for seamless monitoring.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Vacuum Leakage Tester FM-VLT-A100 is an essential tool for detecting leaks in vacuum-sealed products and packaging. It operates by creating a vacuum and monitoring pressure changes to accurately identify leaks in industries such as food packaging and pharmaceuticals.
| Vacuum Degree | 0 to -95 kPa |
| Vacuum Precision | ±1 % |
| Vacuum Keeping Time | 0.1 s to 60 min |
| Compressed Air Pressure | 0.4 to 0.6 MPa (4 to 6 kgf/cm²) |
| Compressed Air Consumption | 20 L/min |
| Working Temperature | 10 to 40℃ |
| Vacuum Chamber Size | Φ 270 mm × 270 mm |
| Vacuum Tank Size | Ø 450 × 350 mm |
| Power Supply | AC 220 V 50 Hz |
| Dimensions (L × W × H) | 317 × 305 × 170 mm |
| Weight | 12 kg |
