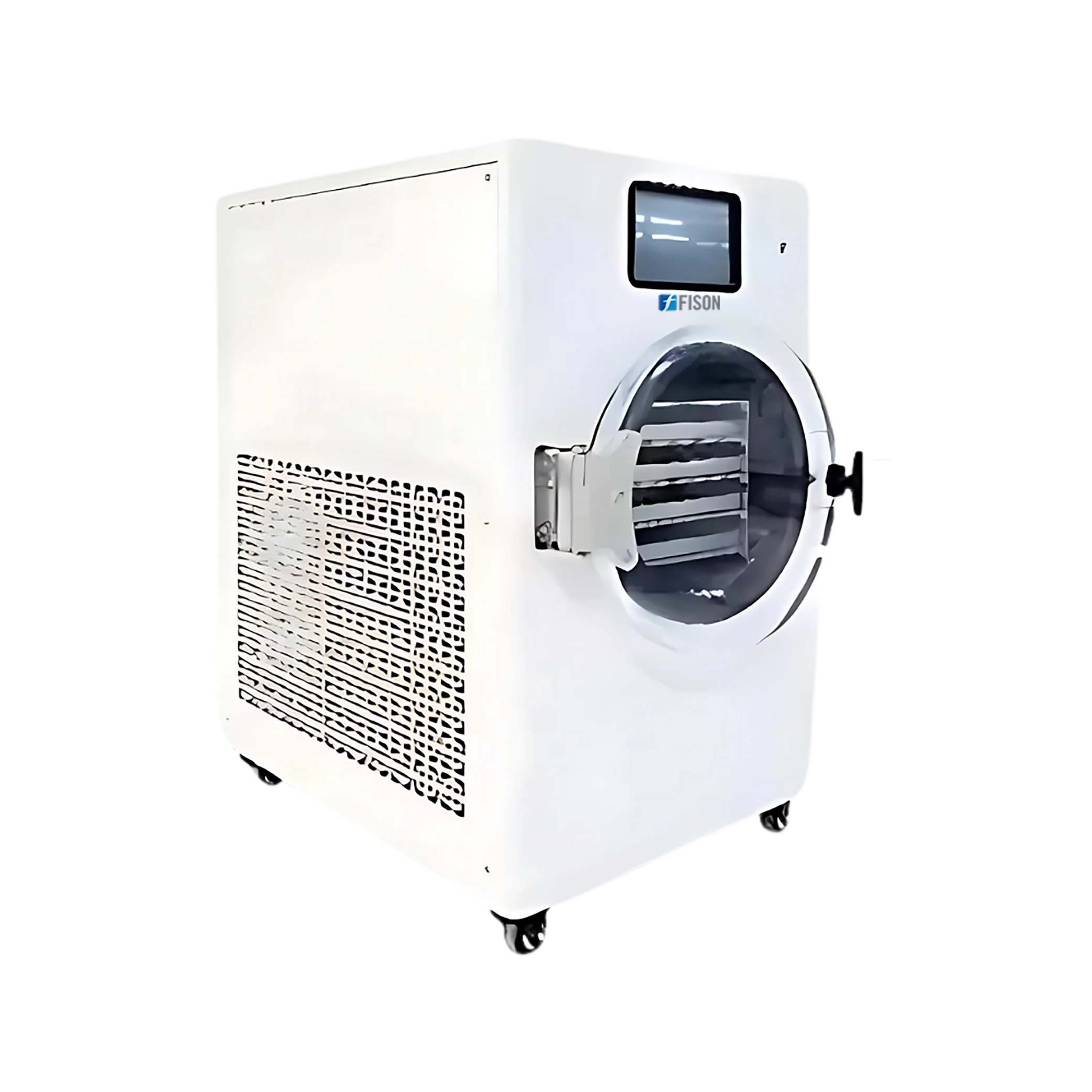

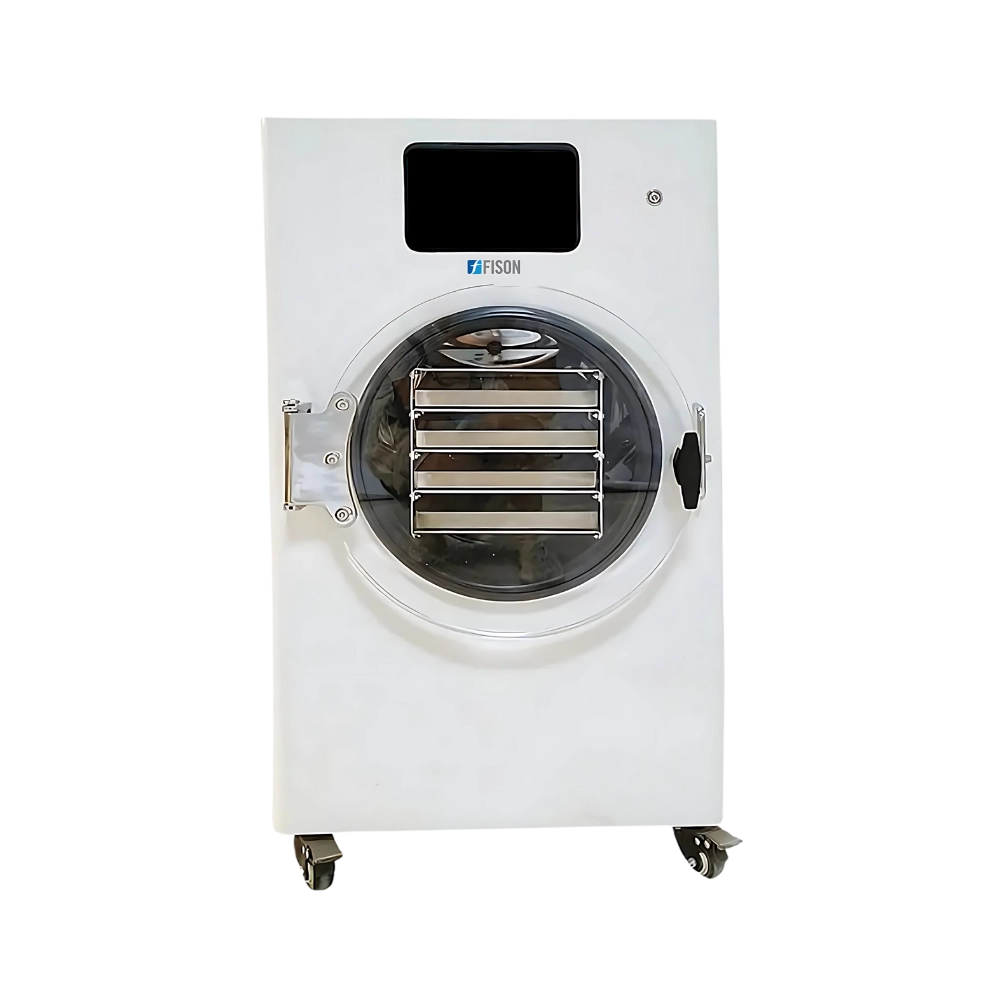

Vacuum Freeze Dryer FM-VFD-A100 is equipped with 0.8M freeze-drying area and 6 large trays for efficient batch processing. Its 7-inch touchscreen ensures real-time operation and data tracking with ease. Constructed with food-grade materials for hygienic, safe freeze-drying. Integrated USB export and strong cold trap enhance usability. It is a reliable and compact system delivering precise freeze drying.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
| Freeze dried area | 0.8M² |
| Handling capacity | 8 to 10 kg/batch |
| Cold trap temperature | -35°C |
| Maximum ice capacity/water catch | 8kg/24H |
| Shelves spacing | 45mm |
| Number of trays | 6 Pcs |
| Tray size (L×B×H) | 430×315×30 mm |
| Ultimate vacuum | ≤ 2Pa (no load) |
| Vacuum pump type | 2XZ-4 |
| Pumping speed | 4L/S |
| Noise | ≤ 60db |
| Power | 2300W |
| Power supply | 220V/50Hz |
| Dimension (L×B×H) | 640×680×1180 mm |
| Package dimension (L×B×H) | 820×800×1540 mm |
| Net weight | 128kg |
| Gross weight | 205 kg |
