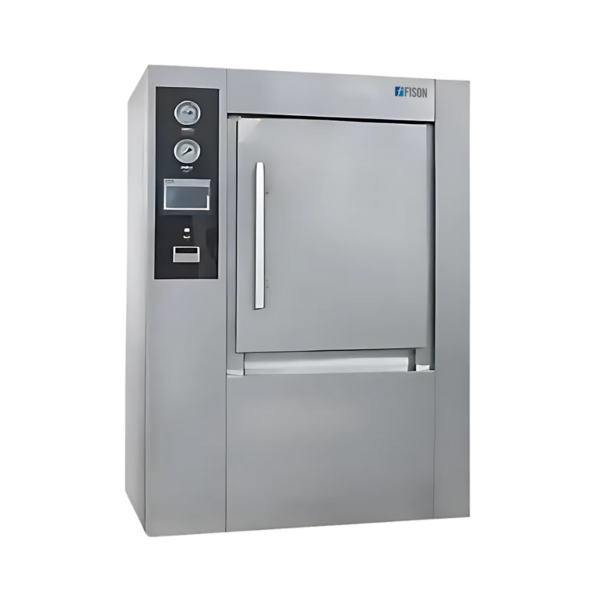

Vacuum Autoclave FM-VMA-A100 has 360L capacity that features a ring-type jacket, and reinforcing ribs for enhanced structural integrity and efficiency. It adopts an imported programmable logic controller (PLC) for enhanced user control. This unit features an interior liner and door panels made of stainless steel ensuring corrosion resistance. Our vacuum autoclave has sanitary stainless steel pipes with clamps to prevent contamination in sensitive environments.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Vacuum Autoclave FM-VMA-A100 uses high-pressure steam and a vacuum to remove air before sterilization, and is widely used in fields such as pharmaceuticals, biotechnology, genetics, environmental science, food safety, forensics, clinical labs, pathology, immunology, neuroscience, and agricultural research.
| Capacity | 360 L |
| Sterilization Temperature | 150 °C |
| Operational Temperature | 139 °C |
| Temperature Precision | ±0 to 2 °C |
| Temperature Uniformity | ±1 °C |
| Vacuum Range | -80 to 0 kPa |
| Vacuum Pulses | 1 to 99 |
| Vacuum Leak Rate | ≤0.13 kPa/min |
| Vacuum | -97 kPa |
| Pulse Pressure | -80 to 80 kPa |
| Pulse Count | 1 |
| Positive Pulses | 1 to 3 |
| Chamber Pressure | -0.1 to 0.3 MPa |
| Safety Valve (Chamber) | 0.28 MPa |
| Jacket Pressure | 0.3 MPa |
| Safety Valve (Jacket) | 0.28 MPa |
| Maximum Pressure | 0.25 MPa |
| Steam Usage | 22 kg/cycle |
| Water Usage | 180 kg/cycle |
| Power Consumption | 30 kW |
| Power Supply | 380 V, 50 Hz |
| Liner Dimensions (L × W × H) | 610 × 610 × 1000 mm |
| Chamber Dimensions (L × W × H) | 1320 × 1350 × 1930 mm |
| Weight | 850 kg |
