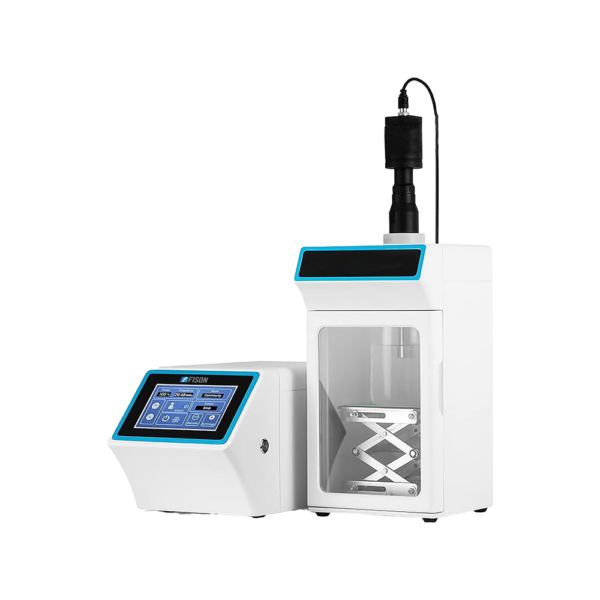

Ultrasonic Cell Disruptor FM-UCD-A101 operates at a nominal frequency of 20 kHz, offering efficient cell disruption. It features automatic frequency tracking, ensuring optimal performance during operation. Its exponential ultrasonic probe design enhances output efficiency. It is equipped with an alarm protection system for overload and temperature control for added safety. Our ultrasonic cell disruptor is designed for reliable sample processing in laboratories.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Ultrasonic Cell Disruptor FM-UCD-A101 is widely used for cell disruption, DNA extraction, and emulsification in research laboratories, biotechnology firms, and pharmaceutical companies.
| Power Regulation | 1% to 100%, precision 1% |
| Temperature Setting | 0℃ to 300℃, precision 1℃ |
| Nominal Frequency | 20 kHz |
| User Programs | 10 groups (set, stored, and viewed) |
| Pulse Interval Time | 1 sec to 60 min, adjustable and saved |
| Display | 7-inch color touchscreen |
| Display Resolution | 800 × 480 |
| Probe Configuration | Titanium alloy (Ti-6Al-4V) |
| Operating Modes | Pulse, Time, Continuous |
| Timer | 1 min to 99 hours |
| Power | 1000 W |
| Dimension | 650 × 540 × 320 mm |
| Gross Weight | 22 kg |
