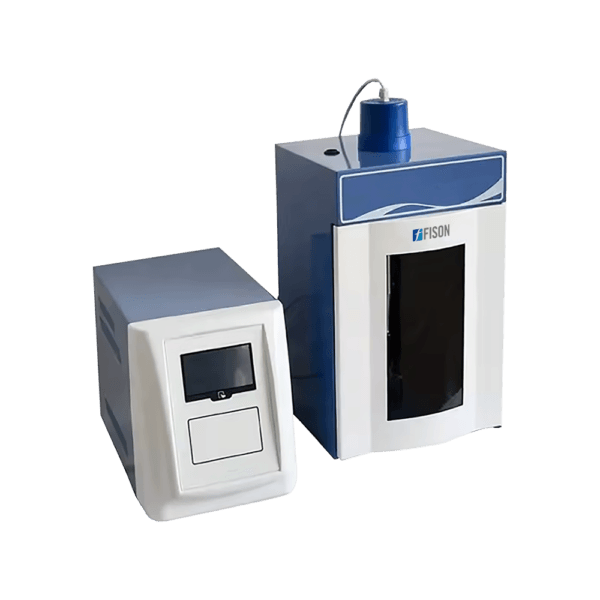

Ultrasonic Cell Disruptor FM-UCD-A100 delivers precise ultrasonic disruption. It supports sample sizes from 1 to 1000 ml. The device features a user-friendly LCD touch screen. Over-temperature protection is included for safe operation. Additionally, the device includes a sensor for real-time temperature monitoring.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Ultrasonic Cell Disruptor is widely used in the life and analytical sciences, microbiology and physics etc.
| Capacity | 1 to 1000 ml |
| Frequency | 19.5 to 20.5 KHz |
| Total Runtime | 1sto99 hours |
| Work Cycle | 0% to 100% |
| Operating environment and Temperature | 0 to 40 °C |
| Ultrasonictimer | On timer: 1s – 99 minutes Off timer: 1s – 99 minutes |
| Standard Amplitudepoles | Φ 20 mm |
| Optional Amplitudepoles | Φ 10, Φ 15 , Φ 20 , Φ 22 , Φ 25 mm |
| Power consumption | 12 to 1200 W |
| Power supply | AC 220 V±10 % , 50 /60 Hz |
| Packing Dimension ( Sound Box ) | 350 × 350 × 550 mm |
| Packing Dimension ( Main unit ) | 470 × 305 × 430 mm |
| Gross Weight | 29 Kg |
