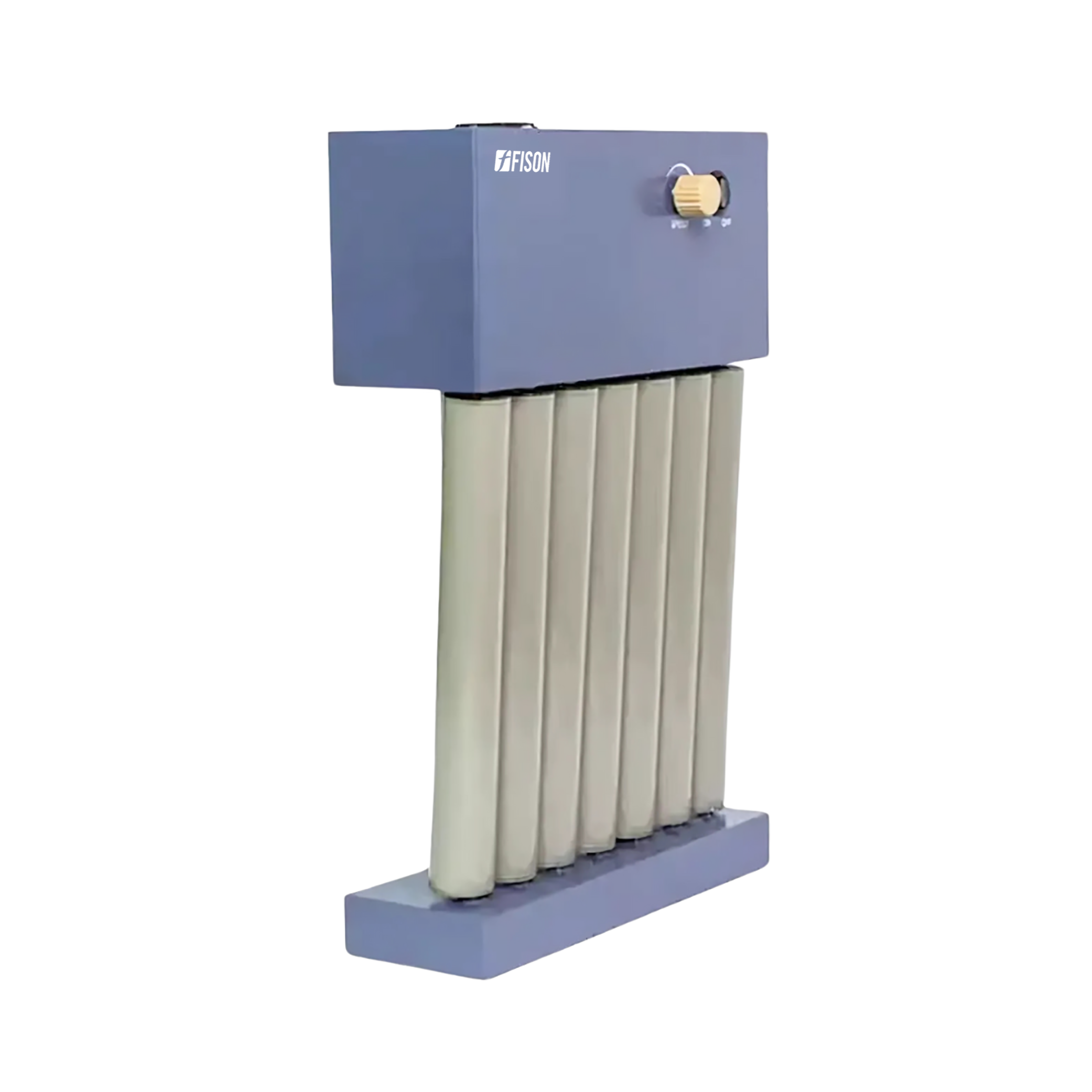

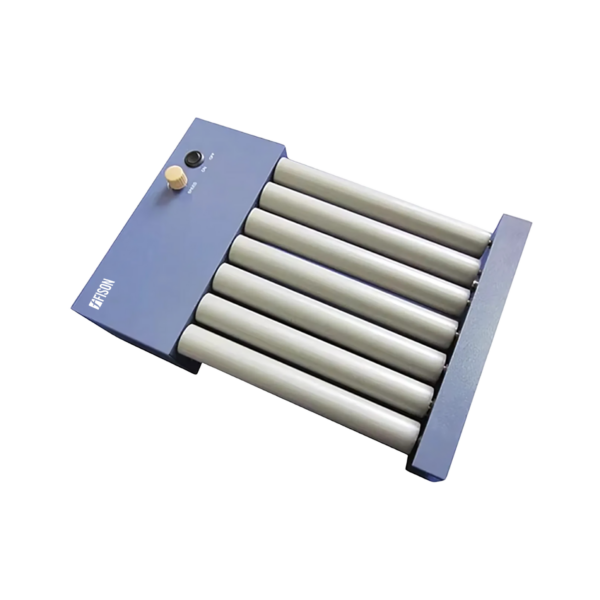

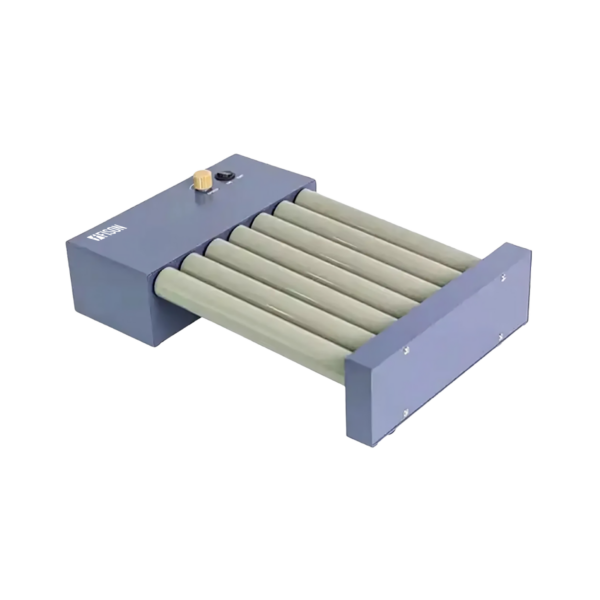

Tube Roller Mixer FM-TRM-A100 operates continuously with speeds from 0 to 80 rpm. It offers both rolling and anticlockwise rolling options, with adjustable speed settings. Equipped with a high-performance DC motor, it ensures reliable operation. The adjustable roller spacing accommodates various tube sizes. Our mixer ensures superior blending of blood, reagents, and control materials, delivering results beyond manual mixing
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Tube Roller Mixer is used in diverse sectors, including medical diagnostics, biotechnology, pharmaceuticals, chemical industries, and research laboratories
| Speed | Shaking: 0 to 80 times/min Rolling: 0 to 80 turns/min |
| Swing amplitude | 22mm ± 1mm |
| Roller size | 236 mm |
| Roller count | 7 |
| Roll length | 236mm |
| Protective class | IP21 |
| Allowed temperature range | 5 to 50℃ |
| Mode of operation | Continuous |
| Acceptable humidity level | 0.8 |
| PowerConsumption | 12W |
| Power supply | 220V ± 10 % (50 Hz) |
| Dimension | 394 × 266 × 98 mm |
| Packing Dimension | 500 × 360 × 220 mm |
| Net Weight | 3.6 Kg |
| Gross weight | 6.7 Kg |
