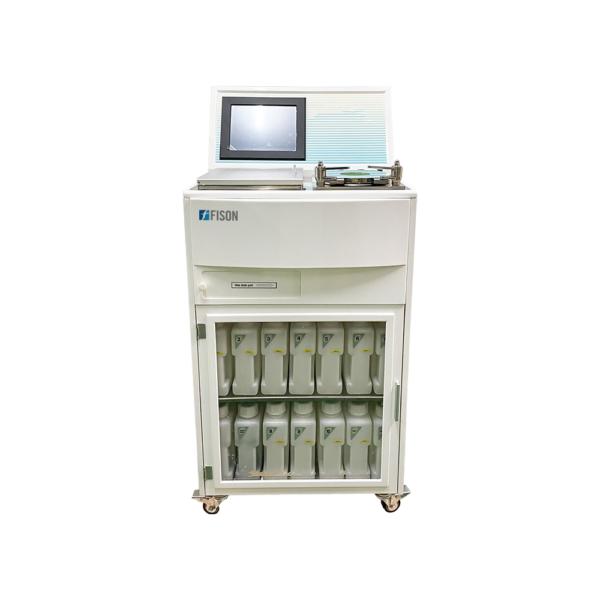

Tissue Processor FM-TPR-A101 is a fully innovative processor that automates tissue preparation for microscopic examination. Our processor offers a 6.8 L capacity with approximately 300 cassettes. Integrated with an LCD screen for real-time monitoring of working status. Utilizes an active extraction process at 65 ℃ paraffin temperature for enhanced paraffin cleansing and improved tissue quality.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Tissue Processor is widely used in the field of pathology, enabling analysis and preparation of tissue samples for research laboratories, medical diagnosis, and forensic investigations
| Capacity | 6.8 L |
| Cassettes | 300 |
| Reagent Volume | 5.3 L |
| Operating Temperature Range | 15 ℃ to 35 ℃ |
| Paraffin Temperature | 65 ℃ |
| Processing Reagent Temperature | Ambient or 35 ℃ |
| Cleaning Reagent Temperature | 65 ℃ |
| Accuracy | ±1℃ |
| Filling Time | 5 min |
| Drain Time | 5 min |
| Impregnation pressure | 35 kPa (g) |
| Drain Pressure | 35 kPa (g) |
| Volume of paraffin Bath | 4.81 per bath |
| Maximum Bottle Volume | 4.01 L |
| Number of Baths | 3 |
| Time Range | 0 to 99 hours, 59 minutes |
| Relative Humidity | 10 % to 80 % |
| Power | 1000VA |
| Fuse | 10 A |
| Power Supply | AC220V 60HZ |
| Dimension | 80 × 740 × 1460 mm |
| Weight | 172 kg |
