Tap Density Tester FM-TDM-A100 - Image 2

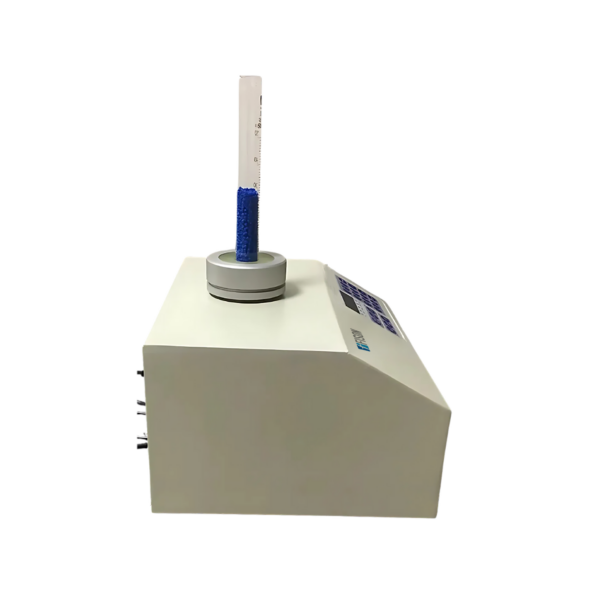

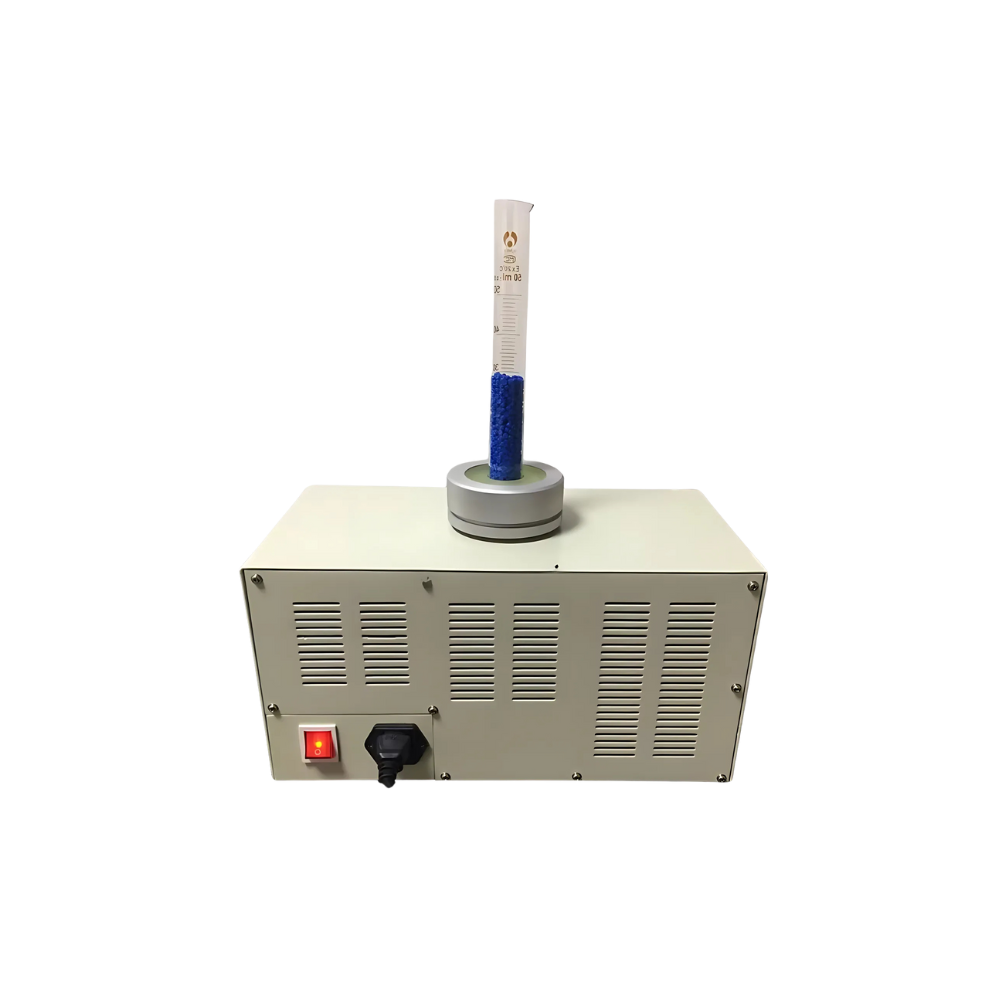

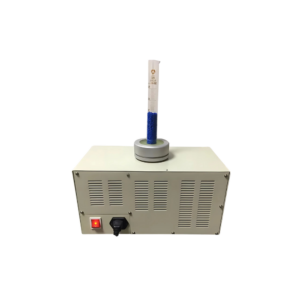

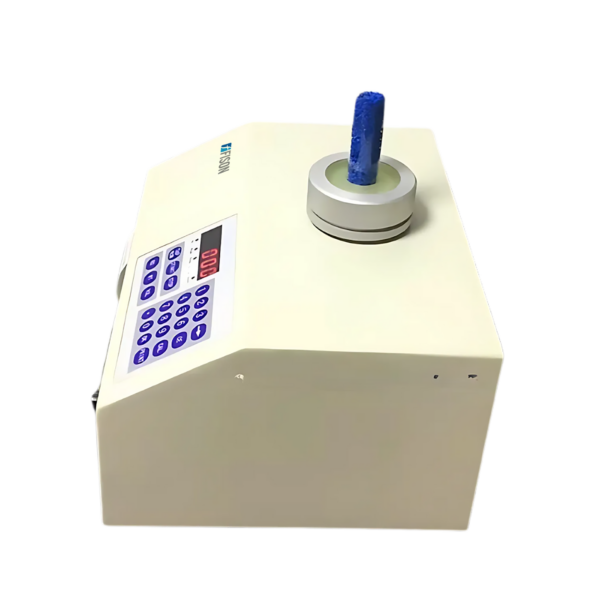

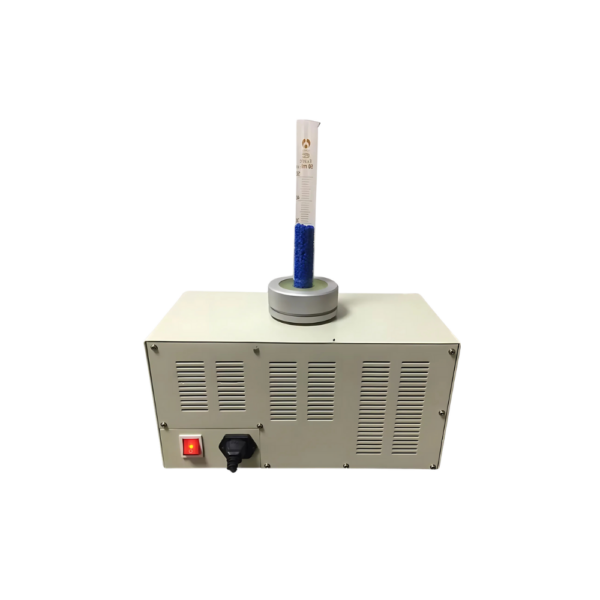

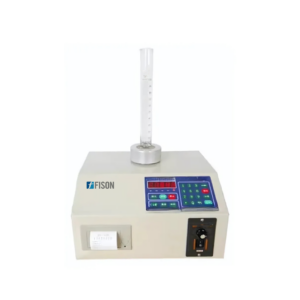

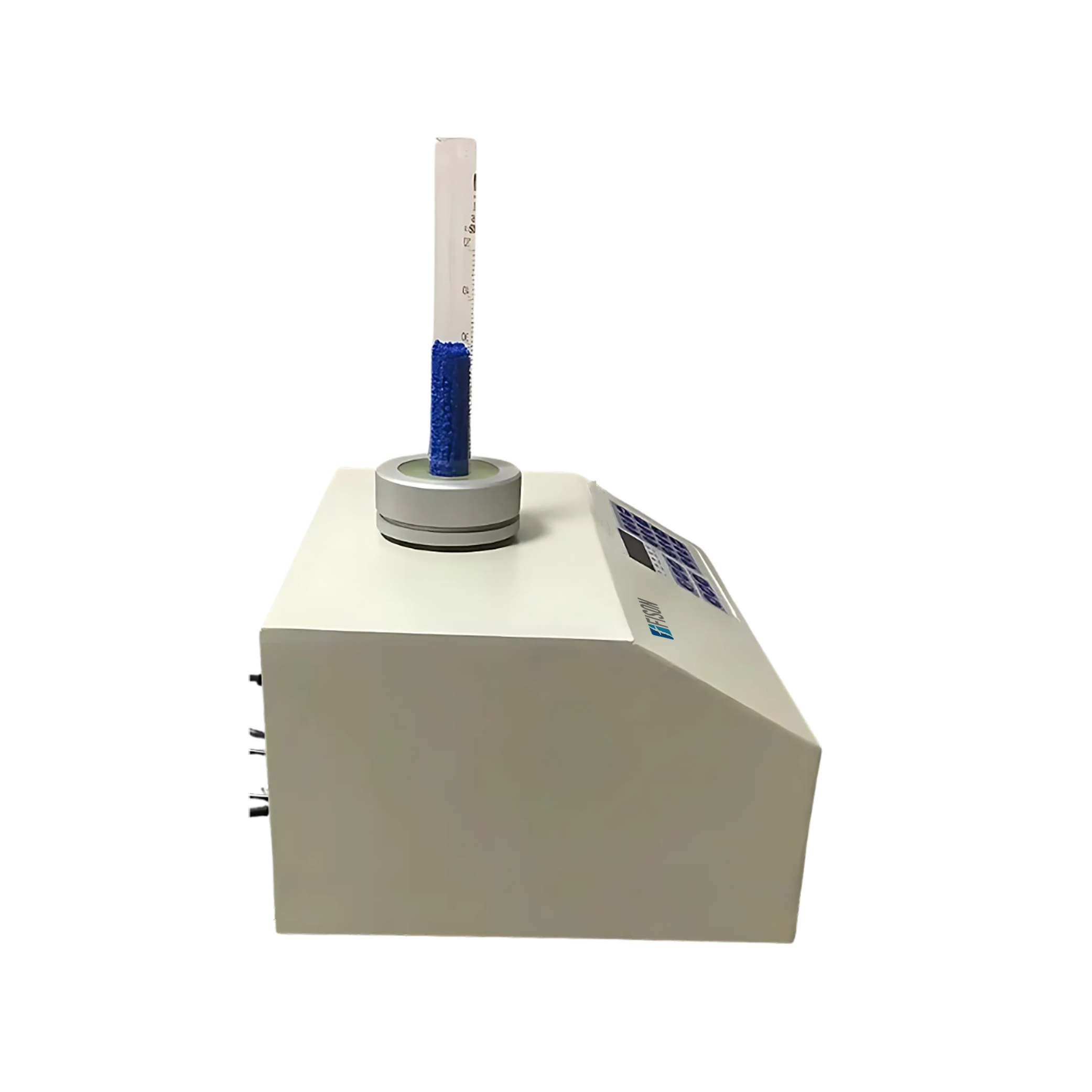

Tap Density Tester FM-TDM-A100

SKU: 0bc3f3efc3f4 Category: Lab Equipment Brand: Fison

Tap density tester FM-TDM-A100 is a single test station unit. It’s designed in accordance with USP I & USP II Tapped density Method. Measures tapped density, flowability of powder to optimize size of the packaging container. Tapped density is calculated in gm/ ml by dividing the sample weight by the final tapped volume.

Maximize Your Machine Potential

At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.

Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.

Description

Features

Test figure accuracy up to 4 decimal places
Stores test data in shut down mode
Highly advanced result interpretation
Built-in printer to print test report
Measures Hausner Ratio (TD/BD), Compressibility Index (TD-BD/TD × 100)
No need to adjust an integer
Automatically saves test result

Applications

Used to test tapped density, simultaneously calculate bulk density, Hausner ratio across production, packaging, quality and research testing units in pharma, food, medicine, life science and other industries.

Work station	1
Samplevolume	≤ 250 ml
Sample weight	≤ 500 g
Number of Tapping	0 to 99999 (set 0 to output bulk density)
Frequency	300 rpm (continuous adjustable in 0 to 300 rpm)
Amplitude	Maximum 15 mm ( 1 to 15 mm integer variable)
Stroke height	Stroke height 3 mm
Strokes/ min	250 strokes/ min
Display	LED display
Repeatability	≤ 1 %
Accuracy	≤ 1 %
Humidity	≤ 85 % RH
Motor torque	0.86 N. m
Power	40 W
Power supply	AC 220 V± 10 %,50 Hz

Produk Lainnya

Tap Density Tester FM-TDM-A100

Maximize Your Machine Potential

Description

Features

Applications

Produk Lainnya

Dry Bath Incubator FM-DBI-A103

Digital Ultrasonic Cleaner FM-DUC-C103

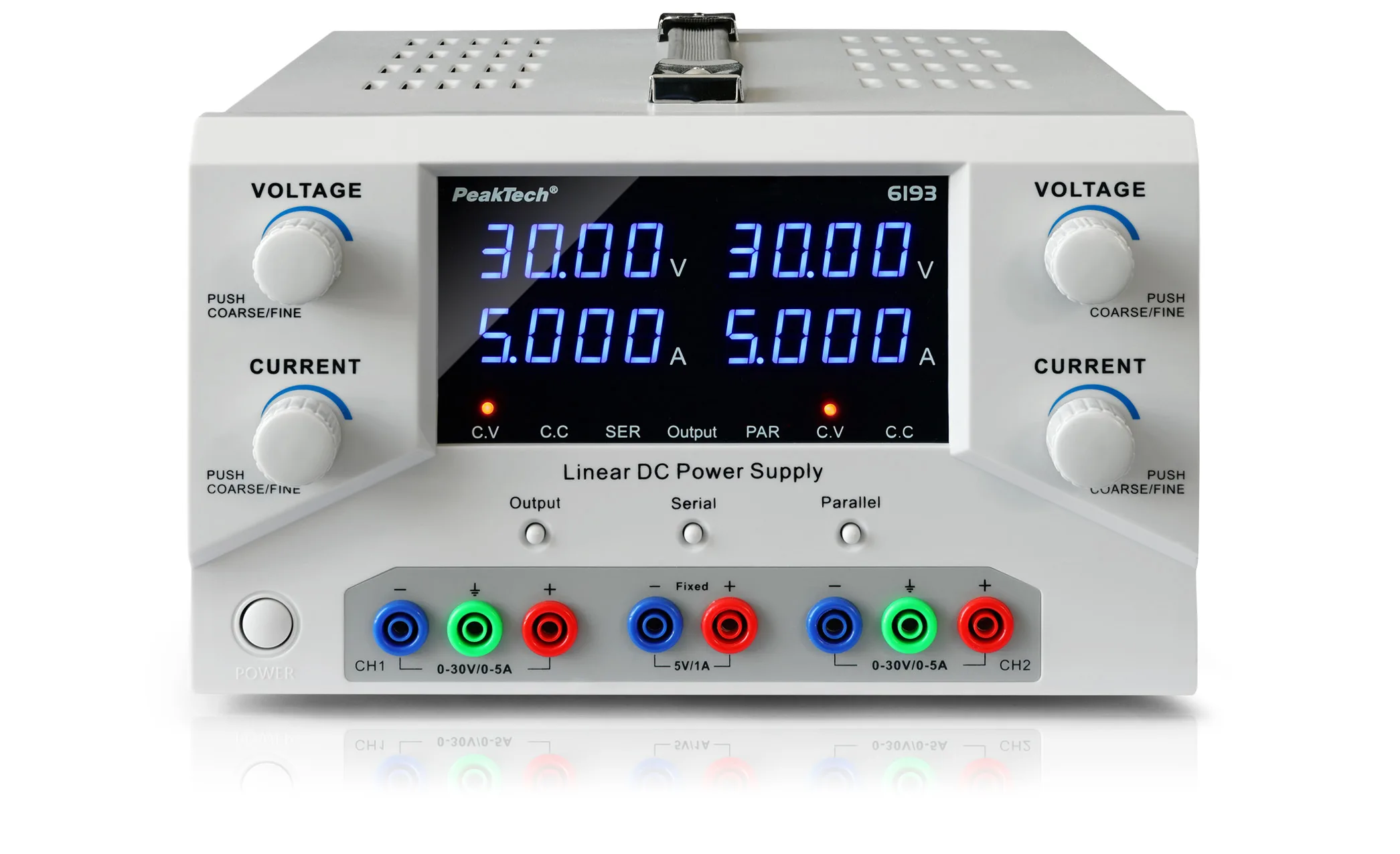

PeakTech® P 6193 Laboratory power supply 0-30 V / 0-5 A DC & USB
