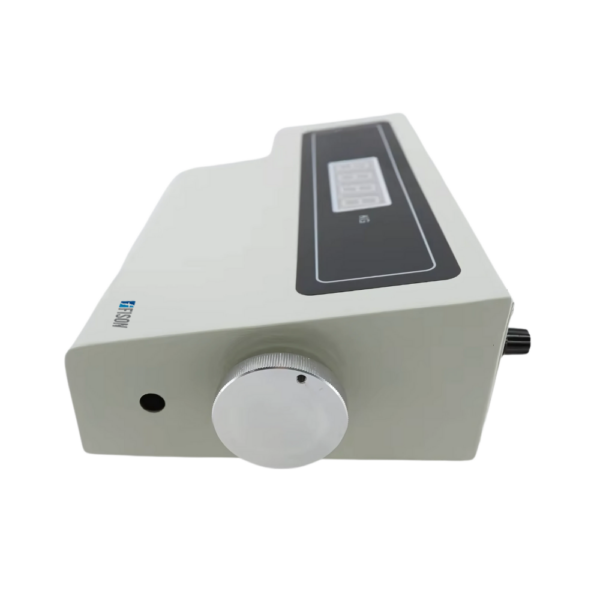

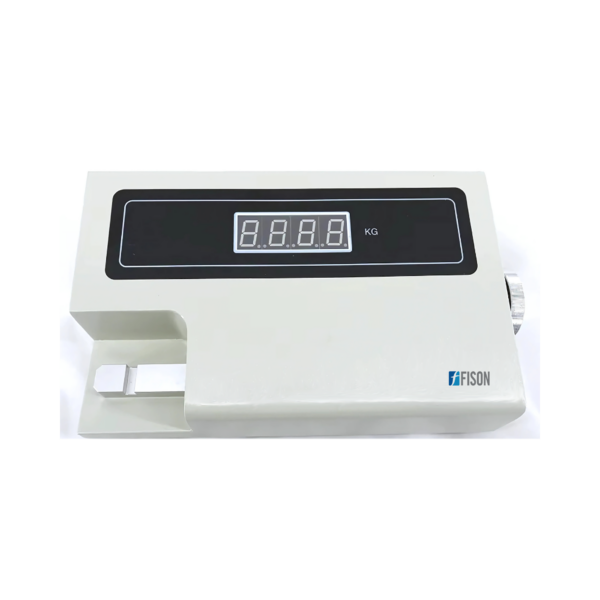

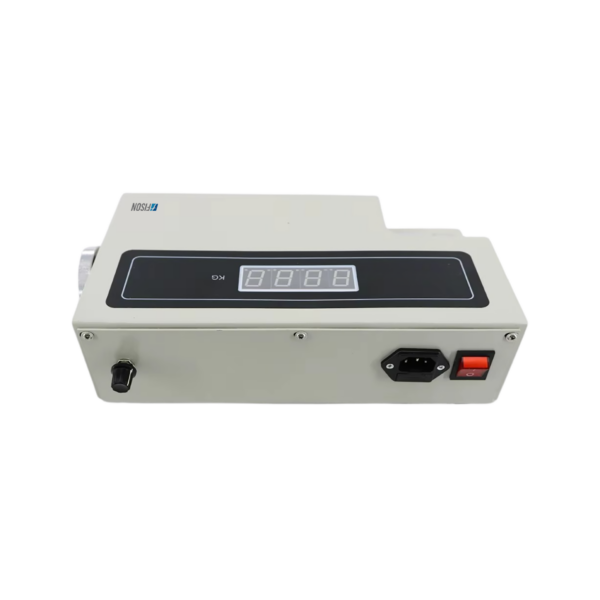

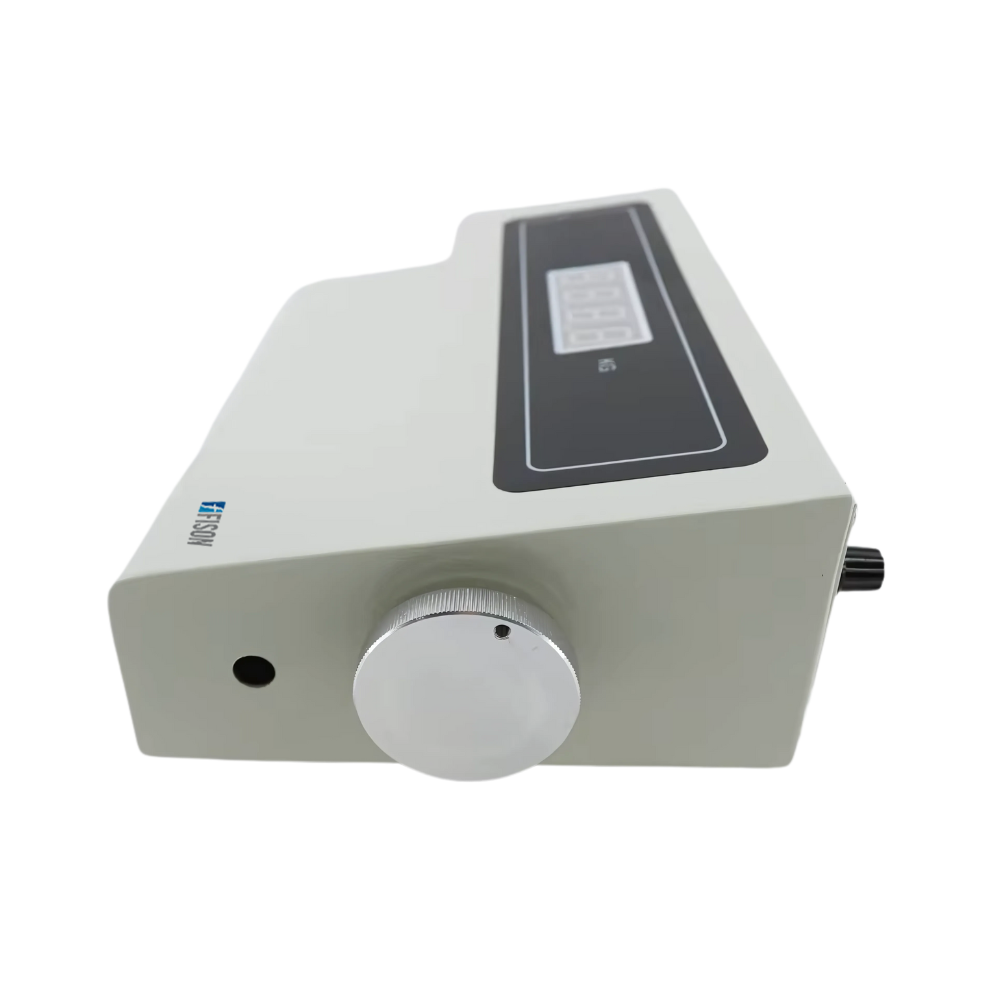

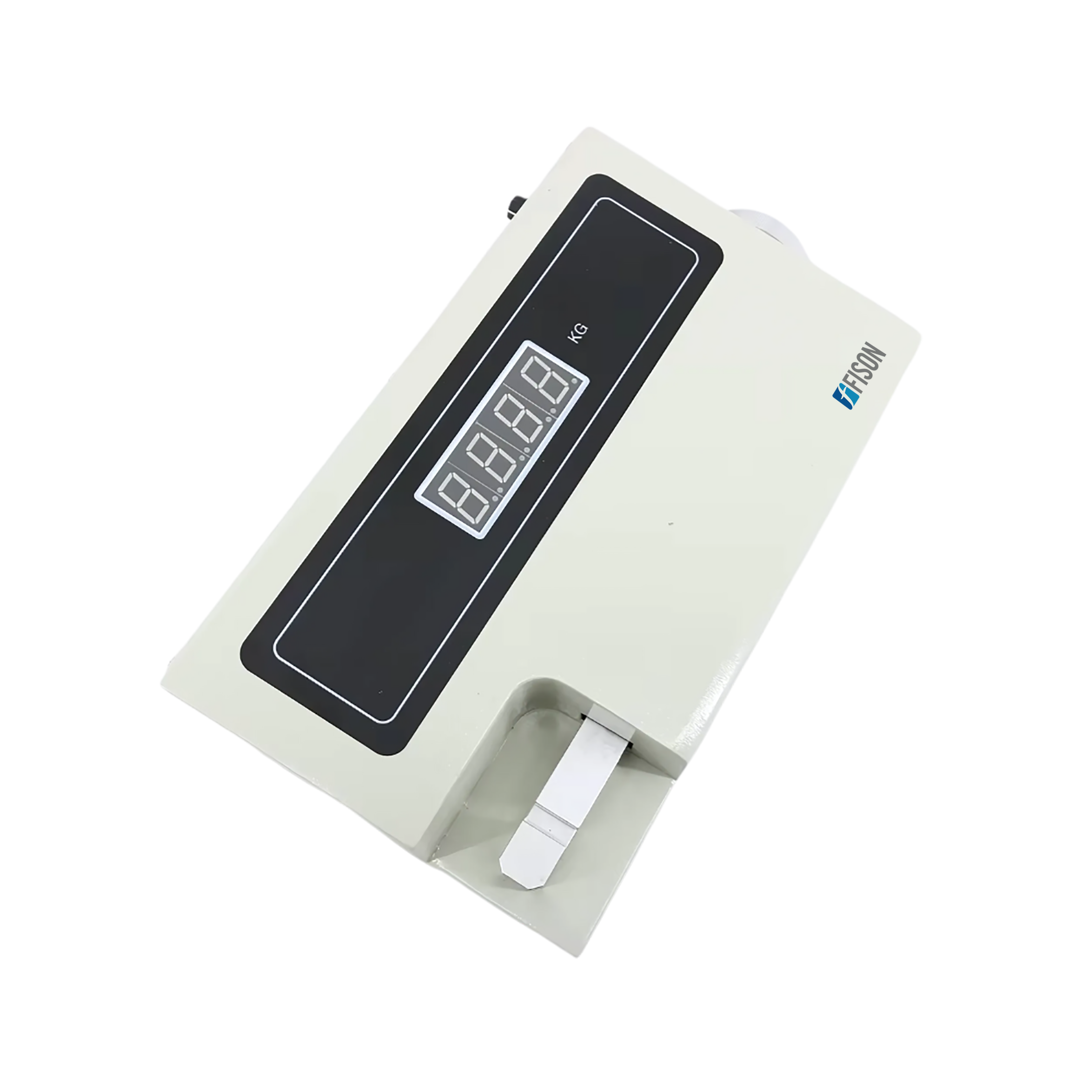

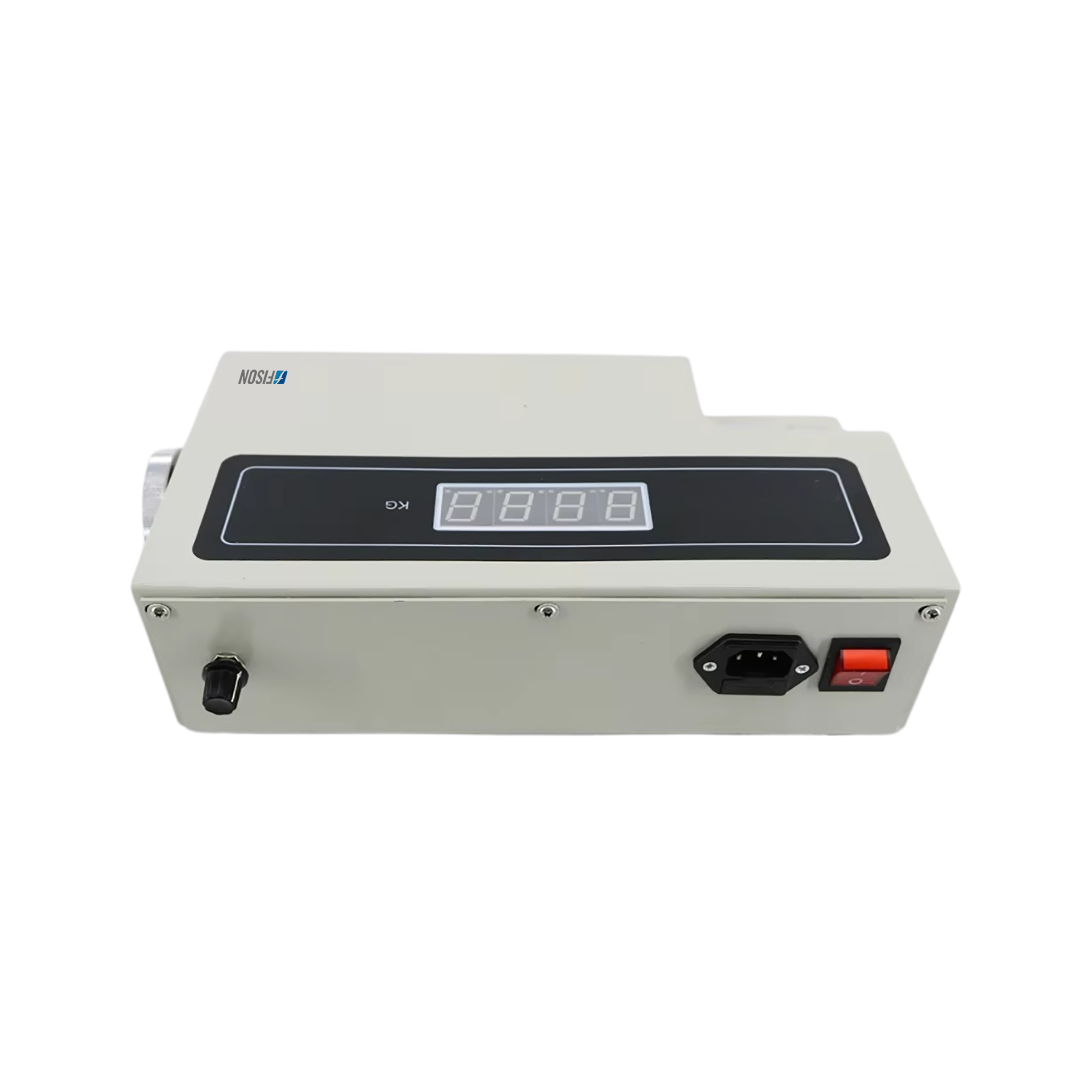

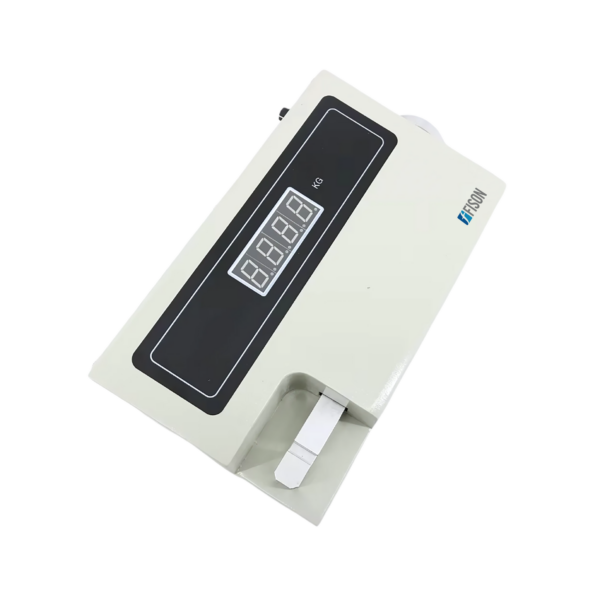

Tablet Hardness Tester FM-THT-A100 tests the hardness of ≤ 20 mm dimeter tablets with the hardness checking range of 2 to 199.9 N. The unit has high accuracy press sensor and equipped with LED screen to display test data and other parameters. The tablet is loaded and pressed artificially for the testing, test can be reset and cycled. It also features auto-test, auto-diagnose and auto-alarm system.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for detecting breaking hardness of tablet in the pharmaceutical, food, detergent, dairy, animal feed, pesticides and any other industries which requires compressed tablet.
| Hardness range | 2 to 199.9 N |
| Hardness accuracy | ± 1.5 % |
| Probe procession range | ≤ 20 mm |
| Max number in each group | – |
| Test period | 20 sec / pc |
| Safe testing force | 0.2 to 20 kg |
| In-built printer | No |
| Power | 60 W |
| Voltage | AC 220 V, 50 Hz or AC 110 V, 60 Hz |
| Dimension (W × D × H) | 400 x 240 x 160 mm |
| Packaging dimension (W × D × H) | 440 x 280 x 200 mm |
| Net weight | 8 kg |
| Gross weight | 11 kg |
