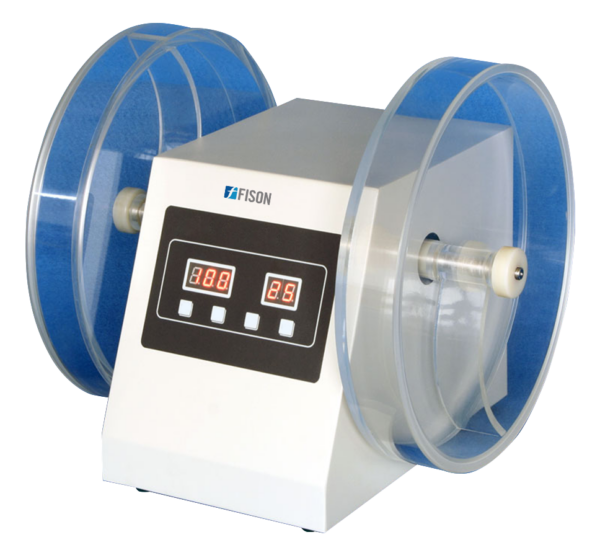

Tablet Friability Tester FM-TFT-A100 is a double cylinder tablet friability and abrasion test instrument. The Drum is made of high quality hyaline acryl and is separated into two parts, the drum body (cylinder) and a removable cover. The silent DC geared motor rotates the drums at a selectable speed of 20 to 90 rpm. The tablets tumbled at each turn of the cylinder by a curved baffle that extends from the middle of the drum to the outer wall. The unit features an automated sample discharge at the end of a test and is equipped with LED screen to display preset value and real-time value separately. It also features auto-test, auto-diagnose and auto-alarm system.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for detecting friability of tablets in the pharmaceutical, food, animal feed, pesticides and any other industries.
| Number of cylinder | 2 |
| Cylinder inner diameter | 286 mm |
| Cylinder depth | 39 mm |
| Tablet drop height | 156 mm |
| Rotating speed | 20 to 90 rpm |
| Rotating speed accuracy | ± 1 rpm |
| Rotation count | 10 to 900 r |
| Rotation count accuracy | ± 1 turn |
| Power | 60 W |
| Voltage | AC 220 V, 50 Hz |
| Dimension (W × D × H) | 370 x 300 x 340 mm |
| Packaging dimension (W × D × H) | 420 x 410 x 500 mm |
| Net weight | 10 kg |
| Gross weight | 14 kg |
