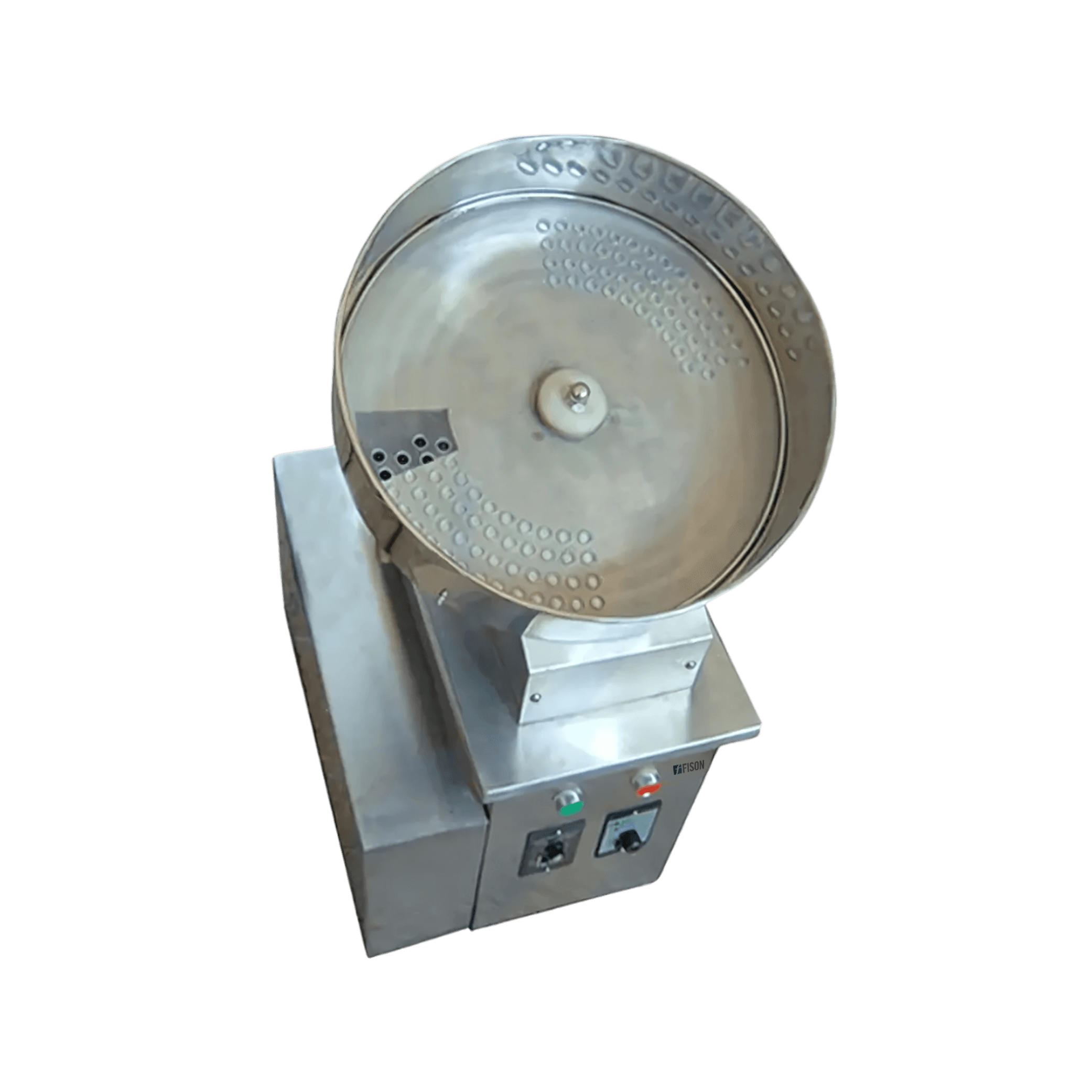

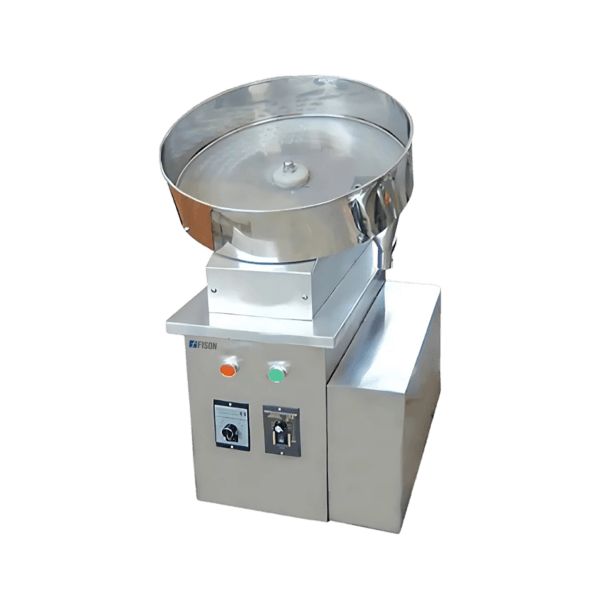

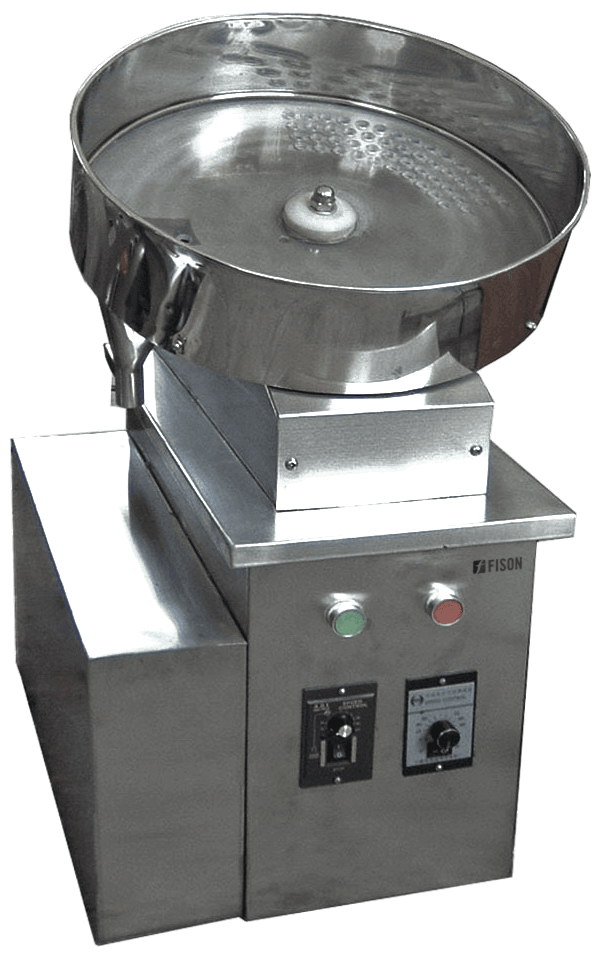

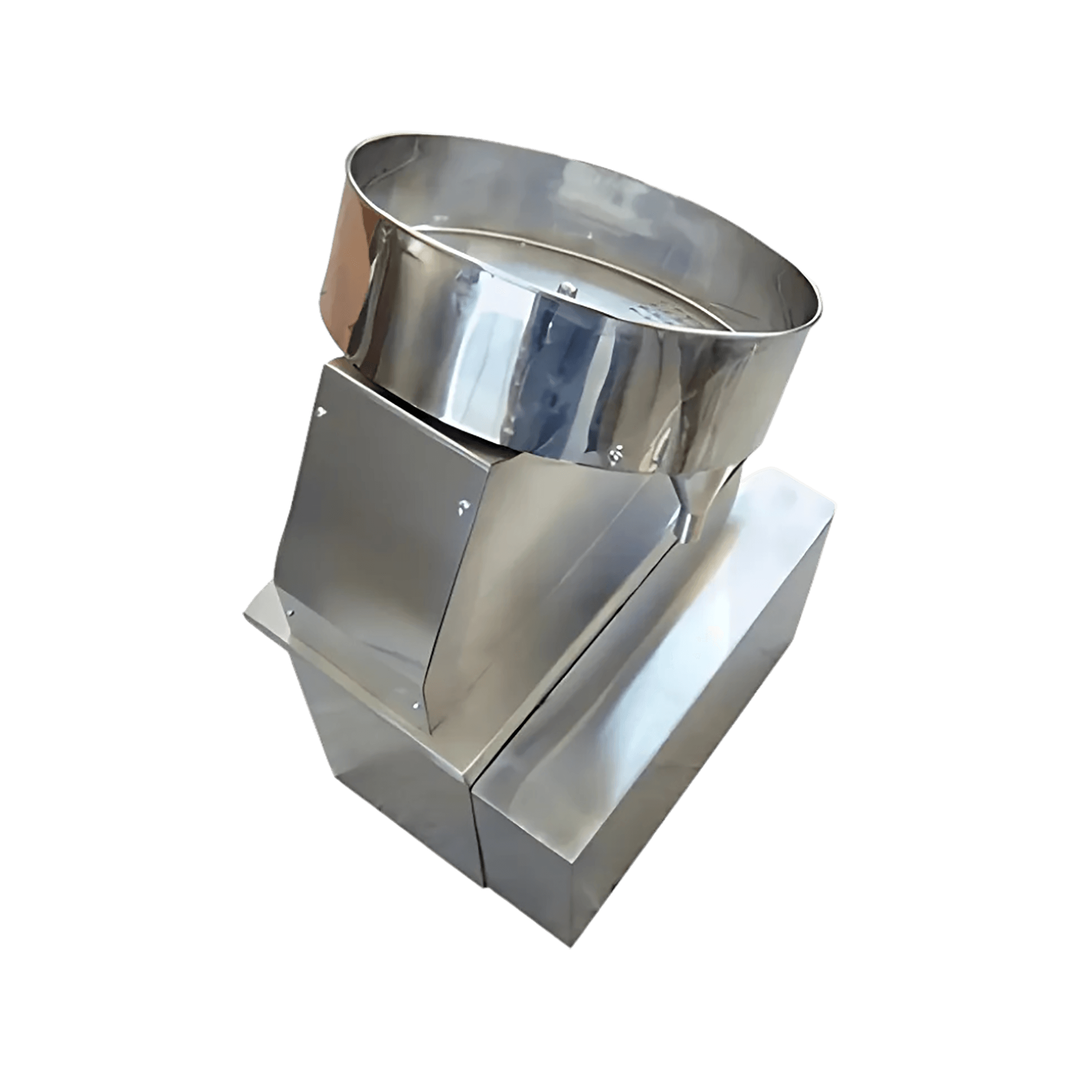

Tablet Counting Machine FM-TCM-A100 counts tablets and capsules of all shapes and sizes quickly and accurately with a speed of upto 26 bottles of tablets or capsules per minute. It consists of gear reducer, acentric vibration screen reducer, counting plate, stepless speed adjusting switch, and vibration motor. The machine adopts an eccentric sieve mechanism and a stepless governor, which overcomes the noise and damage caused by the adoption of gear transmission. The unit is made-up of stainless steel and other high-quality materials, it is small in volume, light in weight, accurate in counting and easy to operate.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in the hospitals, medical colleges, research laboratories, pharmaceutical, chemical, food and other industries for counting the drugs or foods like the capsule, tablets, sugar pills, grains, etc.
| Production efficiency | 12 to 26 bottles (bags) / min |
| Number of holes | As required |
| Counting plate diameter | 410 mm |
| Capsule / Tablet size | As required |
| Motor power | 120 W |
| Operation | Semi-automatic |
| Material | Stainless steel |
| Voltage supply | AC 220 V, 50HzorAC 110 V, 60 Hz |
| Power | 15 W |
| Outline Dimension (W × D × H) | 480 × 410 × 670 mm |
| Packaging dimension (W × D × H) | 610 × 520 × 830 mm |
| Weight | 52kg |
