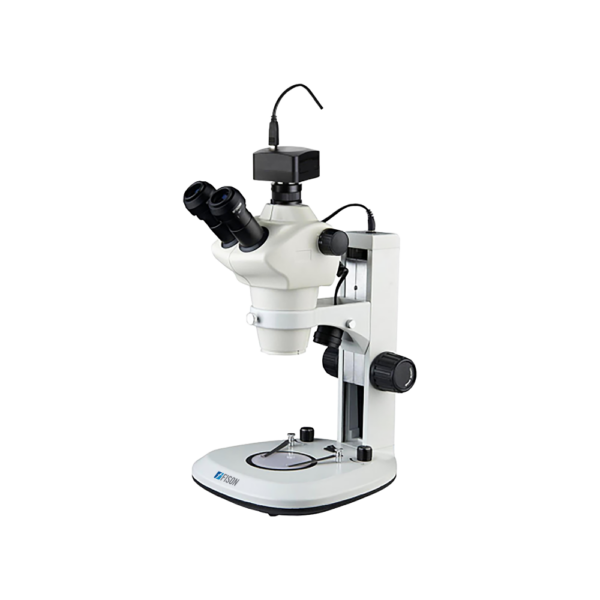

Stereo Microscope FM-SM-A600 excels with its continuous zoom objective, ranging from 0.8x to 5x. This range extends from 45 mm to 211 mm, allowing flexibility in sample observation. It includes a Greenough optical system. Additionally, it features a 360° rotating trinocular head for versatile viewing angles. Adjustable LED lights provide both incident and transmitted illumination, ensuring clear observation.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Stereo microscope is ideal for applications in biology, geology, manufacturing quality control, and intricate work such as dissection or electronic repair.
| Optical system | Greenough optical system |
| Viewing head | Trinocular heads with 360° rotation and 45° inclination Distribution ratio : 3:7 Interpupillary distance : 52 to 75 mm (Adjustable) |
| Eyepiece | WF 10 X / 22 mm, with diopter adjustment |
| Zoom objectives | Continuous zoom from 0.8 x to 5 x, extendable to 45mm to 211mm with additional objectives |
| Zoom magnification | Standard magnification : 8x to 50x (can be extended to 4x to 300x, WF 15x, WF 20x , WF 30x) |
| Distance | 115 mm |
| Zoom ratio | 6.3:1 |
| Focusing | Rack and pinion controlled by dual knobs on stand sides |
| Stand base | Cl4 stand, large track stand with up/bottom led light in square & fan shape for choice |
| Stage base | Transparent disc |
| Illumination | Dual adjustable illuminator |
| Light source (Incident and Transmitted Light ) | LED light source |
| C mount | 0.5× C mount adapter for digital camera |
| Power supply | 220 V 50 Hz |
| Dimension ( W × D × H ) | 510 × 360 × 300 mm |
| Weight | 5.5 kg |
