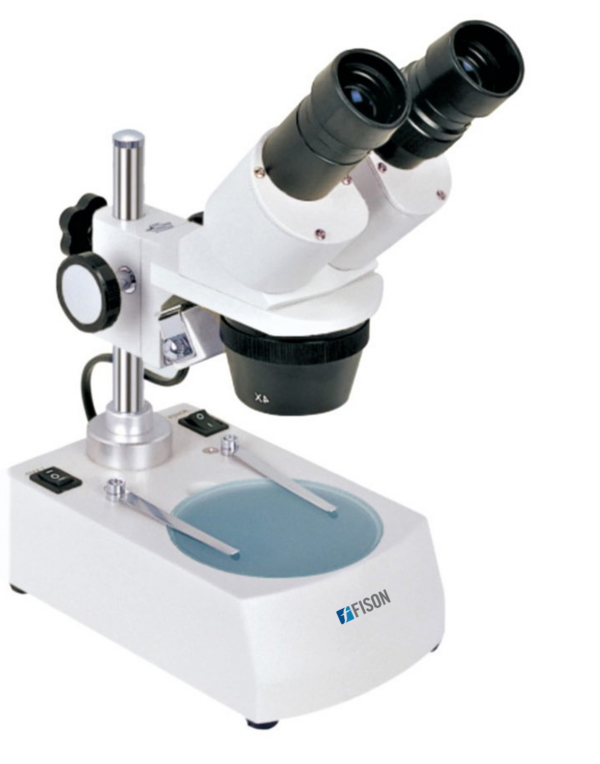

Stereo Microscope FM-SM-A302 is forward facing binocular stereo microscope that has both top and bottom LED illumination system. It is designed for indoor and outdoor applications, powered through an outlet or by batteries. Armed with 10 X magnification power, 90° Ocular-tube and adjustable dioptre gives sharp clear stereo images. Optical system with 2X and 4X lens provides high quality original true colour.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
It has applications in geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools.
| Main body | Sharp stereo erect image over wide field view |
| Optical system | Greenough system |
| Viewing head | Binocular 45° inclined head and 90° rotational bodyLeft ocular tube dioptre adjustment of +/- 5dpInterpupillary distance 55 to 75 mm |
| Widefield eyepiece | WF10 X / 20 mm |
| Objective | Standard 2 X and 4 Xobjective |
| Working distance | 57 mm |
| Working board material | Glass board |
| Base size | 115 × 170 mm |
| Stand style | Pillar stand |
| Focusing | Coarse focusing knob |
| Illumination | LED Incident and Transmitted light , 12 V / 10 W |
| Power supply | 110 V, 220 V / 10 W |
| Dimension (W× L × H) | 115 × 170 × 230 mm |
| Net weight | 2.4 kg |
| Gross weight | 2.75 kg |
