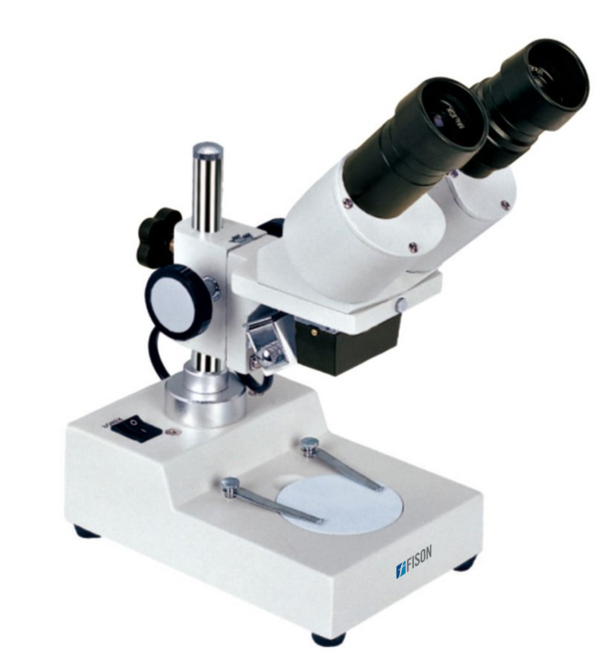

Stereo Microscope FM-SM-A301 is forward facing binocular stereo microscope fitted with 10X magnification power and an illumination system that provides incident (top) lighting. This microscope offers high resolution and good depth within broad field of view. Untwist body gives sharp clear stereo images of the specimen under study. Its 45° inclined binocular head ensures an easy observation and rubber eye guards provide further comfort.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
It has applications in geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools.
| Main body | Sharp stereo erect image over wide field view |
| Optical system | Greenough system |
| Viewing head | Binocular 45° inclined head and Non-auxiliary bodyLeft ocular tube dioptre adjustment of +/- 5dpInterpupillary distance 55 to 75 mm |
| Widefield eyepiece | WF 10 X / 20 mm |
| Objective | Standard 2X objective |
| Working distance | 80 mm |
| Working board material | White and black board |
| Base size | 115 × 170 mm |
| Stand style | Pillar stand |
| Focusing | Coarse focusing knob |
| Illumination | Incident light , 12 V / 10 W |
| Power supply | 110 V, 220 V / 10 W |
| Dimension (W× L × H) | 115 × 170 × 230 mm |
| Net weight | 2 kg |
| Gross weight | 2.4 kg |
