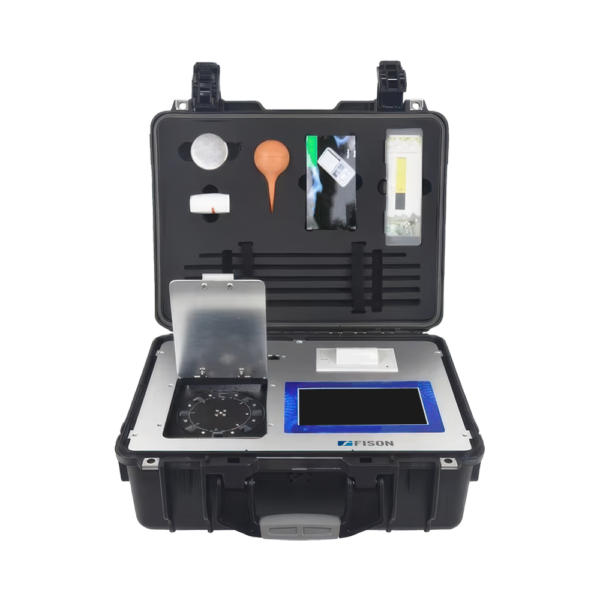

Soil Testing Kit FM-STK-A100 measures pH levels from 1 to 14, ensuring reliable acidity and alkalinity analysis. It also evaluates soil moisture from 0 to 100%, providing precise hydration data. Our kit features a 4-wavelength cold light source (red, blue, green, and orange), guaranteeing stable wavelength and high reproducibility for precise analysis. Its 7-inch HD true color touchscreen offers an intuitive and seamless user interface for efficient testing.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Soil Testing Kit FM-STK-A100 is used to analyze soil properties and is widely used in Farms and Agricultural Fields, Gardens and Nurseries, Construction Sites, Laboratories and Research Centers, and Environmental Monitoring Stations.
| pH Value (Acidity/Alkalinity) | Test Range: 1 to 14, Accuracy: 0.01,Error: ±0.1 |
| Soil Moisture Parameters | Moisture Unit: % (g/100g), Test Range: 0 to 100%, Error: Less than 0.5% |
| Range & Resolution | 0.001 to 9999 |
| Repeatability Error | Less than 0.02% (0.0002, potassium dichromate solution) |
| Instrument Stability | No digital drift within one hour (transmittance) Digital drift within two hours Less than 0.3% (transmittance) or 0.001 (absorbance) |
| Linearity Error | Less than 0.1% (0.001, copper sulfate detection) |
| Sensitivity | Red light Greater than 4.5 × 10⁻⁵ Blue light Greater than 3.17 × 10⁻³ Green light Greater than 2.35 × 10⁻³ Orange light Greater than 2.13 × 10⁻³ |
| Wavelength Range | Red: 680±2nm Blue: 420±2nm Green: 510±2nm Orange: 590±4nm |
| Salt Content (Conductivity) | Test Range: 0.01%-1.00% Relative Error: ±5% |
| Display Resolution | 1024 × 600 |
| Earthquake Resistance | IP65 |
| Power Consumption | Less than 5W |
| Power Supply | AC 220±22V, DC 12V+5V (Built-in lithium battery for vehicle power) |
| Product Dimension | 480×345×220 mm |
| Packaging Dimension | 560×380×390 mm |
| Net Weight | 5.2 kg |
| Gross Weight | 12kg |
