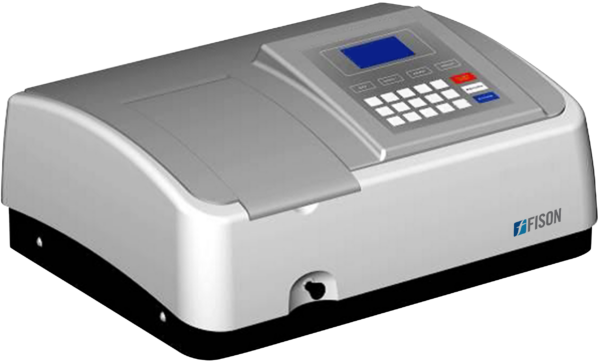

Single Beam UV-Visible Spectrophotometer FM-UVS-A103 operates with wavelength range of 190 nm to 1100 nm and spectral bandwidth 2 nm. Equipped with large LCD display and a USB interface which allows it to plug directly to computer for output results. It uses silicon photodiode detector, deuterium and tungsten lamp as light source which provides best wavelength coverage across working range of spectrophotometer. This single beam spectrophotometer has highly stable optics with 1200 lines/mm grating. System save test results up to 200 group data and 100 standard curves. Software M. Wave Professional provides complete control of the spectrophotometer through a computer with built-in USB port. It can expand to the following functions: Quantitative, Kinetics, Wavelength Scan, Multi-wavelength & DNA/Protein Test.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in biochemistry, biotechnology, microbiology, chemistry, pharmacy, water testing, environmental and food science industries for detection of impurities, functional groups, and quality analysis and research.
| Wavelength range | 190 nm to 1100 nm |
| Spectral bandwidth | 2 nm |
| Optical system | Single beam, grating 1200 lines / mm |
| Wavelength accuracy | ± 0.5 nm |
| Wavelength repeatability | 0.3 nm |
| Photometric range | T: 0 to 200% , A: (-0.3) to 3, C: 0 to 9999 |
| Photometric accuracy | T: ≤ ±0.5%, A: ±0.003 % @ 1 A |
| Light source | Tungsten lamp and deuterium lamp |
| Stray light | ≤ 0.05 % T @ 360 nm |
| Stability | ±0.002 A/h @ 500 nm |
| Display | LCD (128 × 64 dots) |
| Standard cell holder | 4 position 10 mm cell changer |
| Sample compartment | Standard 10 mm path length cuvette |
| Detector | Silicon photodiode |
| Output | USB port and parallel port (printer) |
| Power requirement | AC 110 / 220 V, 50 / 60 Hz |
| Dimensions (W × D × H) | 470 × 370 × 180 mm |
| Weight | 14 kg |
