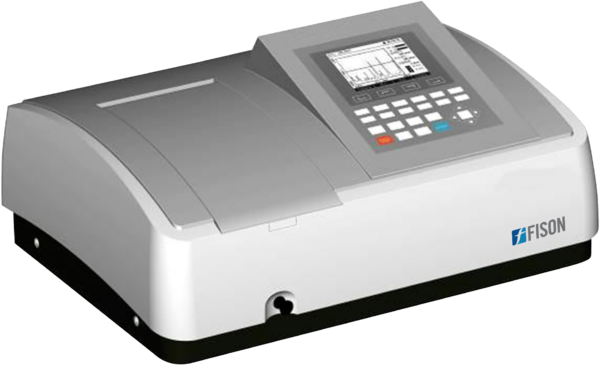

Single Beam Scanning UV-Visible Spectrophotometer FM-UVS-B102 operates with wavelength range of 190 nm to 1100 nm and spectral bandwidth 1.8 nm. Equipped with 5 inch LCD display and a USB interface allows it to plug directly to the computer for output results. The deuterium and halogen lamp acts as light source to provide best wavelength coverage across working range of spectrophotometer. This single beam spectrophotometer has highly stable optics with 1200 lines/mm grating and adjustable wavelength scanning with 3000 nm / min maximum speed.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for clinical, pharmaceutical, bio-chemical lab, and also for routine applications such as quantitative analysis, kinetics, wavelength scanning, multi-wavelength and DNA/Protein analysis.
| Wavelength range | 190 nm to 1100 nm |
| Spectral bandwidth | 1.8 nm |
| Optical system | Single beam, grating 1200 lines / mm |
| Wavelength accuracy | ± 0.3 nm |
| Wavelength repeatability | 0.2 nm |
| Scanning mode | High, Medium and Low (Adjustable) |
| Maximum scanning speed | 3000 nm / min |
| Photometric range | T: 0 to 200% , A: (-0.3) to 3, C: 0 to 9999 |
| Photometric accuracy | T: ≤ ±0.5%, A: ±0.005 % @ 1 A |
| Light source | Halogen and deuterium lamp (pre-aligned) |
| Stray light | ≤ 0.05 % T @ 220, 340 nm |
| Stability | ±0.002 A/h @ 500 nm |
| Display | 5 inches LCD (320 × 240 dots) |
| Baselines flatness | ± 0.002 A (200 to 1000 nm) |
| Standard cell holder | 4 position 10 mm cell changer |
| Sample compartment | Standard 10 mm path length cuvette |
| Detector | Silicone photodiode |
| Output | USB port and parallel port (printer) |
| Power requirement | AC 110 / 220 V, 50 / 60 Hz |
| Dimensions (W × D × H) | 600 ×450 × 200 mm |
| Weight | 20 kg |
