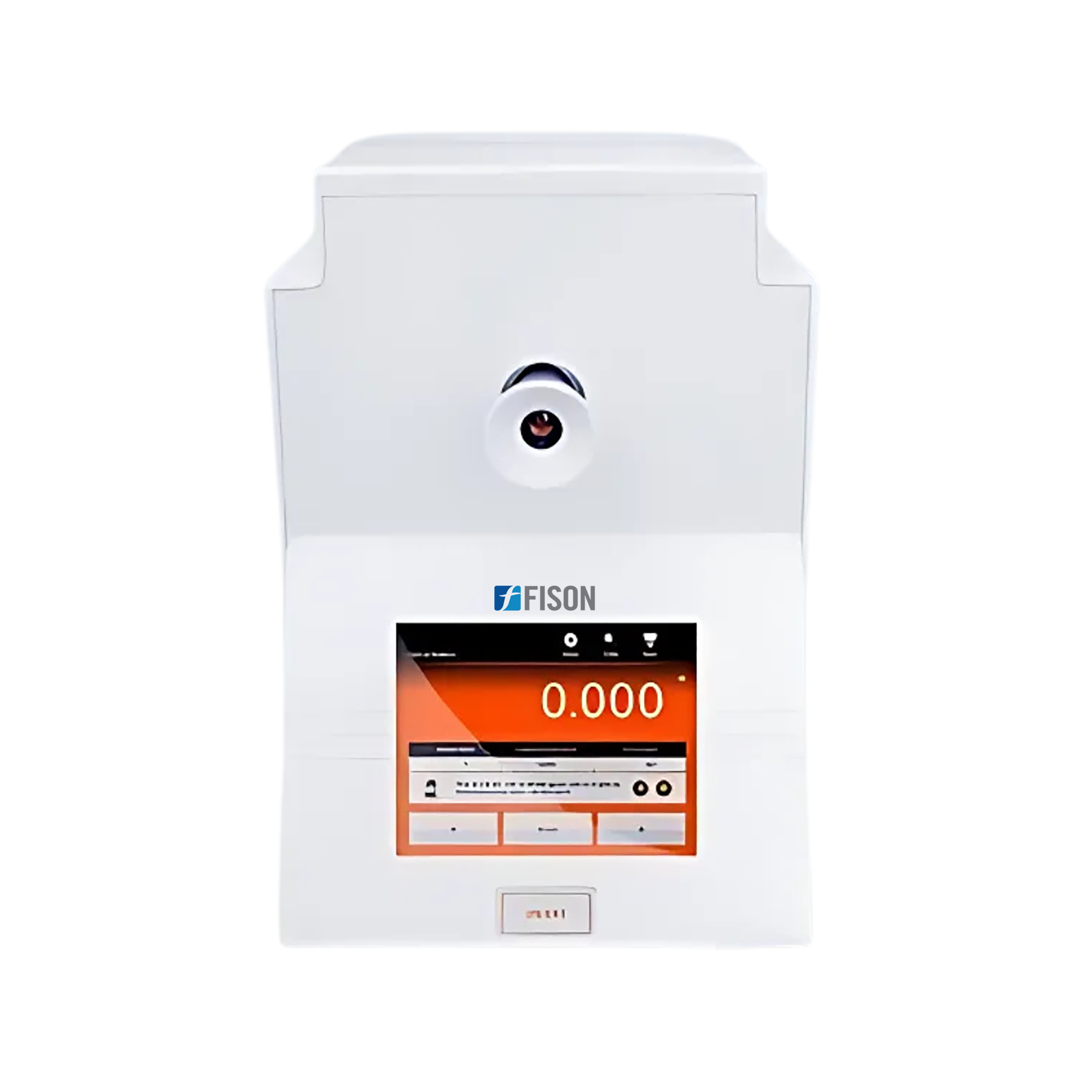

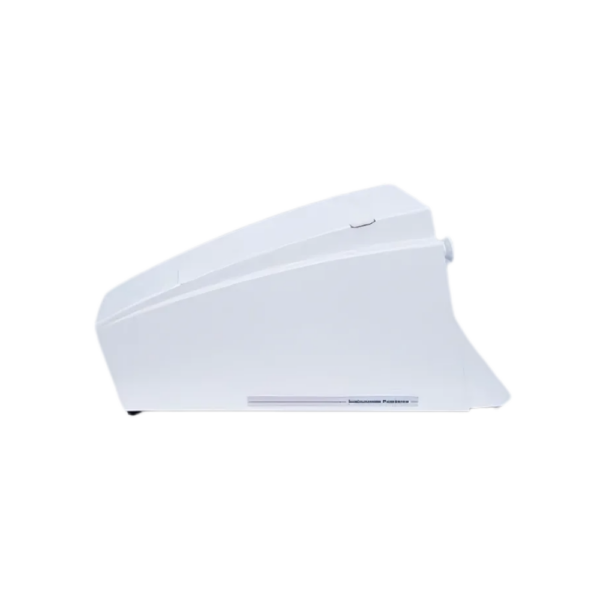

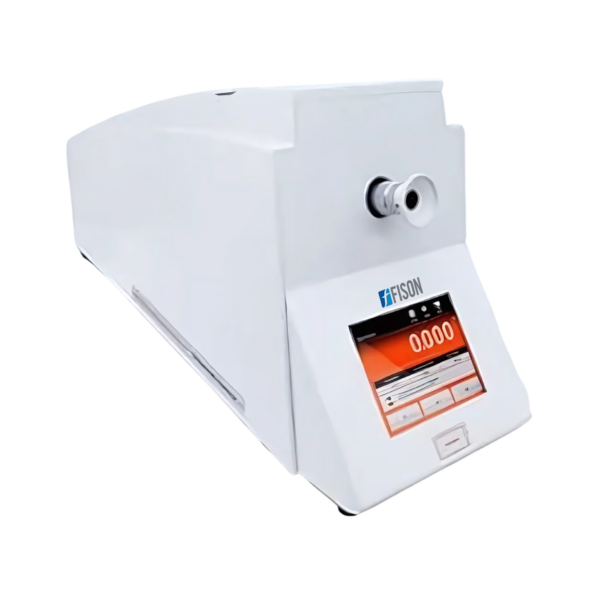

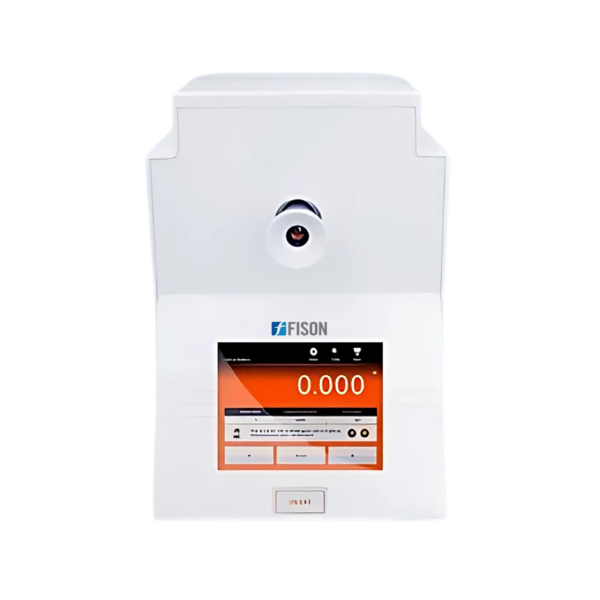

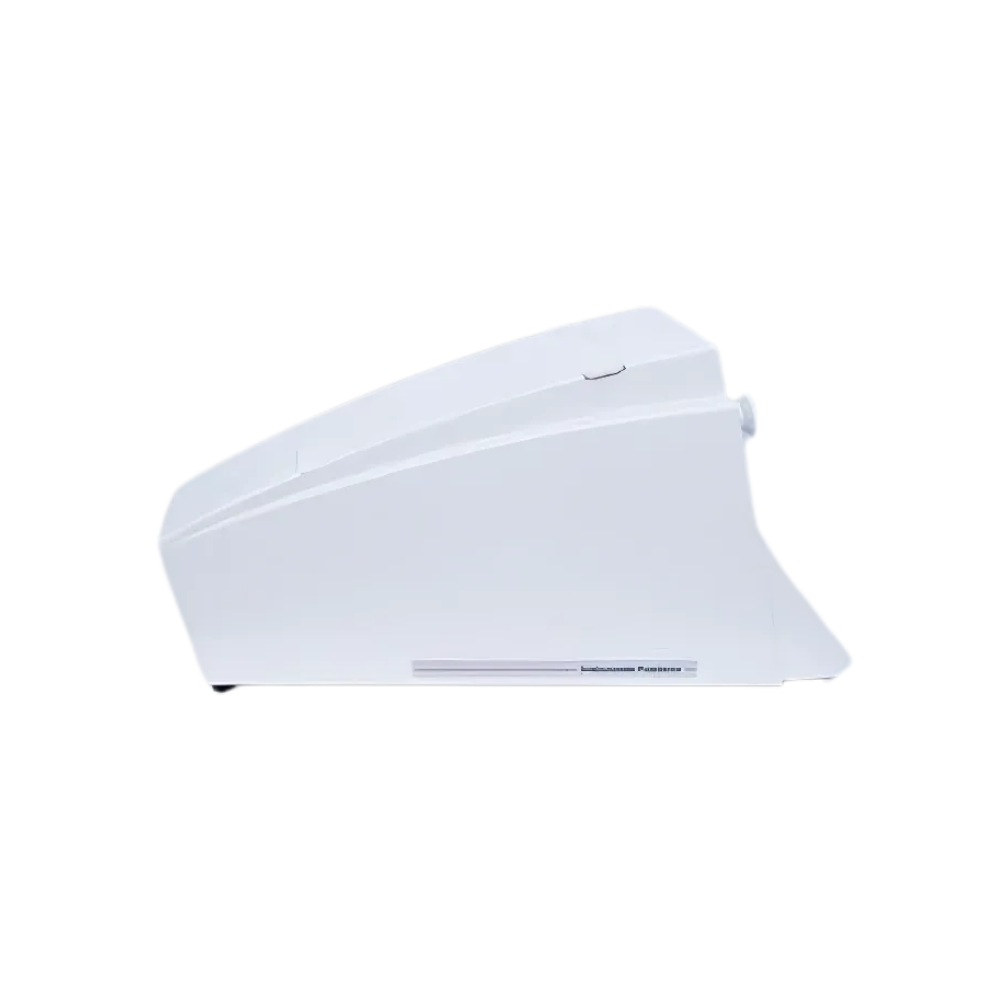

Semi-Automatic Polarimeter FM-SPM-A100 supports tube lengths of 100mm and 200mm. LED interference filters ensure accurate measurements. Zero return functionality simplifies the process by automatically resetting. A 5.6-inch touch screen provides intuitive control. Our unit stores up to 100 data sets, enhancing data management and efficiency
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Semi-Automatic Polarimeter is used in diverse sectors such as pharmaceuticals, food and beverage, and chemical industries
| Measurement Type | Four modes: Optical rotation, Specific rotation, Concentration, and International sugar scale (°Z) |
| Test Tube Length | 100/200 mm |
| Wavelength | 589 nm |
| Display Screen | 5.6-inch TFT LCD touchscreen |
| Temperature Range | 0 to100°C |
| Temperature Measurement span | ± 90°/±130°Z |
| Temperature Measurement Precision | ± 0.5℃ |
| Light Source | LED andInterference filter |
| Data Capacity | 100 sets of data storage |
| Measuring Precision | ± 0.02˚, ± 0.05˚Z |
| Resolution | 0.005˚ |
| Interface | USB |
| Power Supply | AC 220 V, 50 Hz |
| Dimension (L × W × H) | 550 × 300 × 220 mm |
| Packing Dimension (L × W × H) | 700 × 450 × 370 mm |
| Net Weight | 7.5 Kg |
| Gross Weight | 11 Kg |
