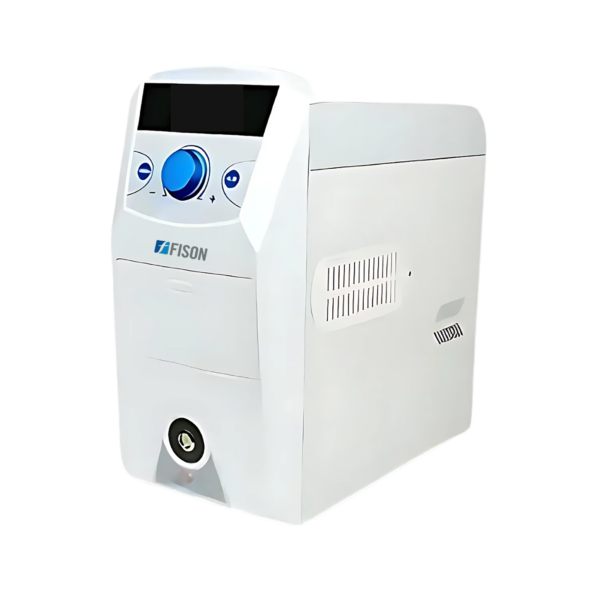

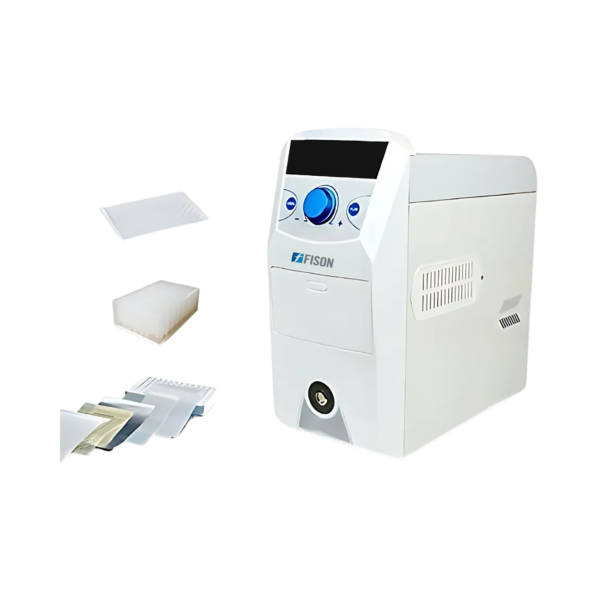

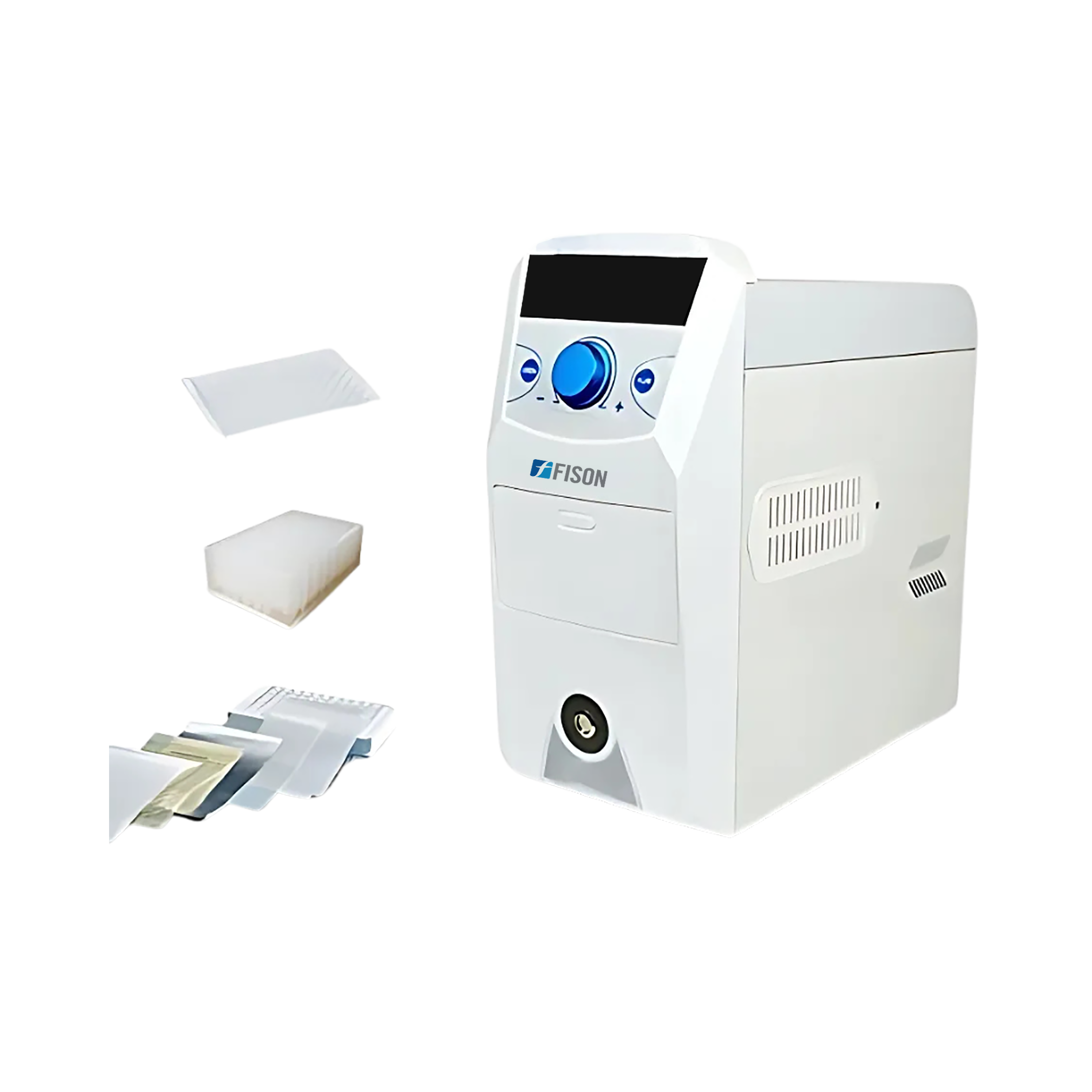

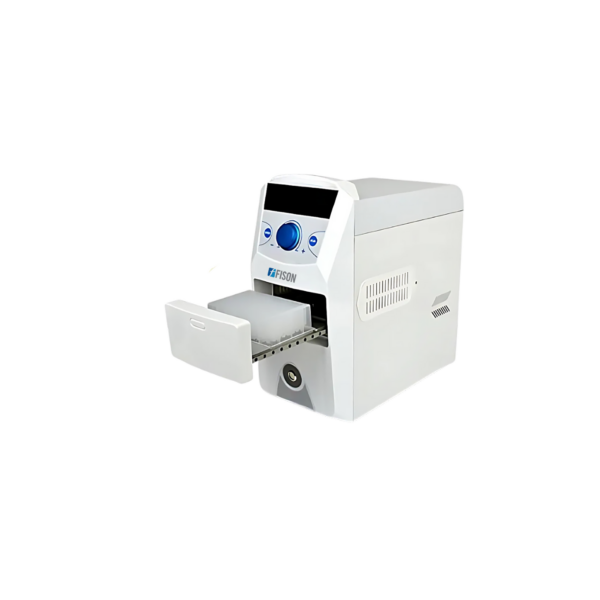

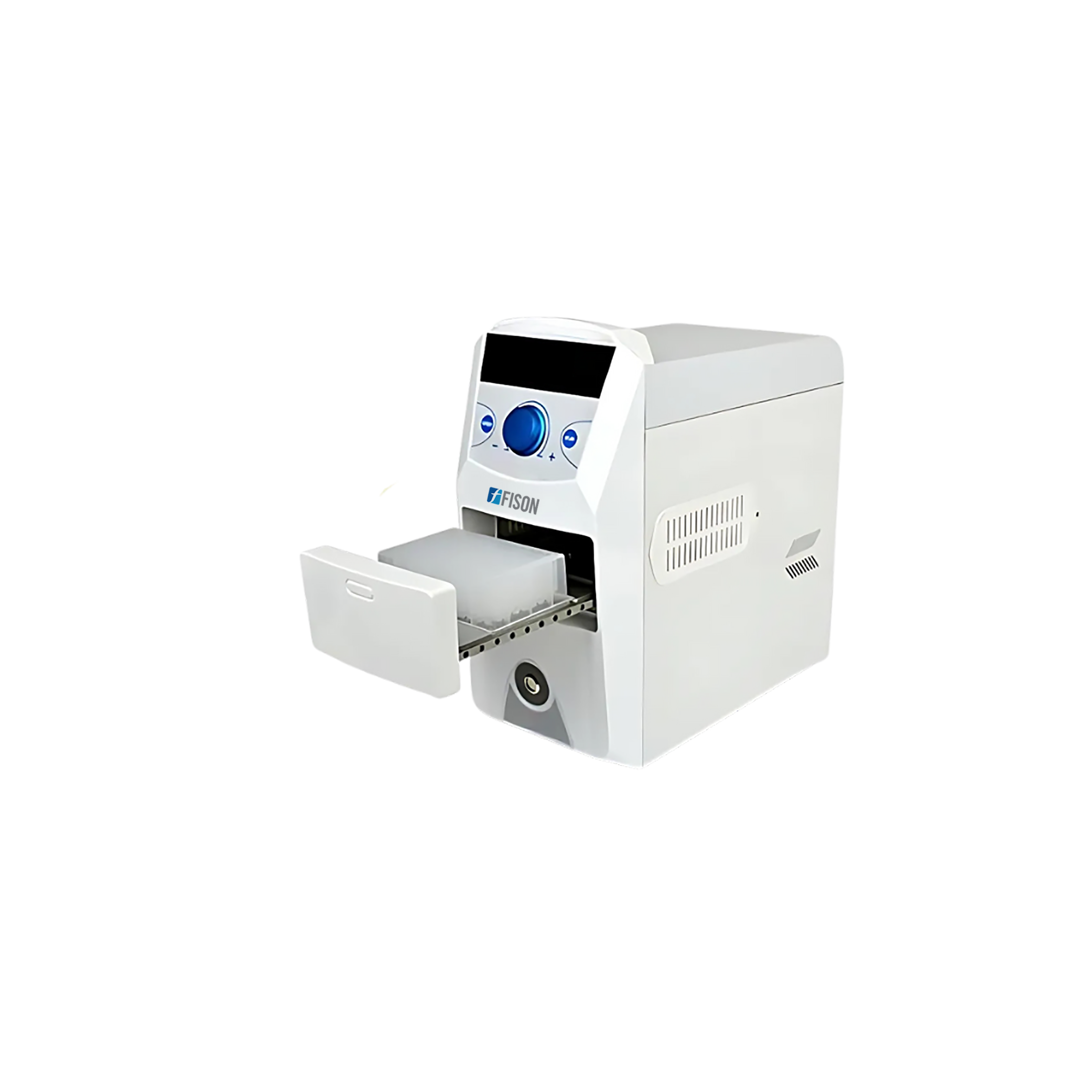

Semi-Automatic Plate Sealer FM-SPS-A100 operates within a sealing temperature range of 80 to 200°C. It features ceramics plate heating technology, which prevents adhesion of sealing films. This sealer is compatible with PCR plates, deep well storage plates, ELISA plates, and cell culture plates. Our sealer’s sealing time ranges from 0.5 to 10 seconds, featuring rapid heating and cooling for fast and efficient operation.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Our Semi-Automatic Plate Sealer is used in laboratories, clinics, and research institutes for sealing microplates with heat or adhesive seals, ensuring sample integrity and preventing contamination.
| Sealing temperature | 80°C to 200°C (1°C increment) |
| Temperature accuracy | ± 1°C |
| Temperature uniformity | ± 1°C |
| Sealing time | 0.5 s to 10 s (0.1 s increment) |
| Seal plate height | 9 to 48 mm |
| Heating rate | 170°C in 300 seconds |
| Sealing pressure range | 1 to 5 grades |
| Display | OLED display |
| Controller | Microprocessor |
| Auto standby mode | Idle > 60 min |
| Auto-off mode | Idle > 120 min |
| Front panel | Fireproof ABS |
| Sealing plate | Ceramic |
| Sealing platenCompatible plates | Standard Microplate Plates: PCR plate (skirted, semi-skirted, non-skirted), Deep-Well storage plates, Elisa plates |
| Compatible plate material | PP, PS, PE |
| Compatible sealing plate film | Foil Polypropylene, Transparent polyester fiber-polypropylene, Transparent polymer, Thin layer transparent polymer, Lamellar |
| Power supply | AC 110/220 V, 50/60 Hz |
| Power Consumption | 300 W |
| Dimension (W×D×H) | 180×350×380 mm |
| Packaging dimension (W×D×H) | 460×310×510 mm |
| Net weight | 12 kg |
| Gross weight | 15.7 kg |
