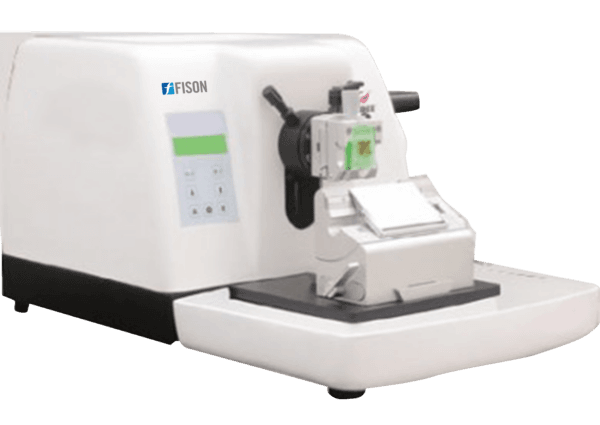

Semi-Automatic Microtome FM-MRT-B101 is a semi-automated unit with manual functionality for user convenience. LCD display shows the sectioning and trimming thickness of paraffin block. Specimen feed drive controlled by an intelligent, high precision control system, enables semi-ultrathin slicing, starting from thickness of 0.25 µm. Equipped with safety alert system, drive overloaded mechanism and automatic standby protection mechanism. The waste tray can be easily dismantled for cleansing. It is used for tissue sectioning in routine histology, biological and industrial needs.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for high-precision sectioning in hospitals, medical colleges, research laboratories, inspection and quarantine institutions for animal and plant, and judicial identification institutions.
| Section thickness range | 0 to 60 µm |
| Section setting values | From 0 to 1 µm, increment 0.25μmFrom 1 to 10 µm,increment 1μmFrom 10 to 20 µm,increment 2 µmFrom 20 to 60 µm, increment 5 µm |
| Trimming section range | 0 to 100 µm |
| Trimming setting values | – |
| Minimum sectioning thickness | 0.25 µm |
| Feed speed adjustment | – |
| Horizontal specimen feed | 26 mm |
| Vertical specimen stroke | 52 mm |
| Specimen orientation | Horizontal: ± 8°, Vertical: ± 8° |
| Specimen retraction | – |
| Clearance distance range | – |
| Electric coarse feed | 28 mm |
| Precision error | ± 1% |
| Adjusting distance of blade holder base | 52 mm vertical stroke |
| Specimen dimension (L × H × W) | 50 mm × 50 mm |
| Work temperature | Room temperature |
| Work humidity | Room temperature |
| Power | 100 W |
| Power supply | AC 220V ± 10% 50 Hz |
| Overall Dimension (W × D × H) | 580 × 410 × 305 mm |
| Net weight | 29 kg |
| Gross weight | 45 kg |
