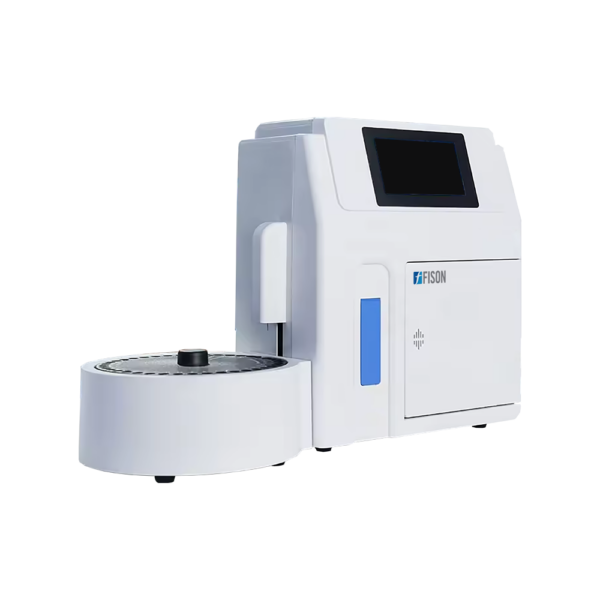

Semi-auto Electrolyte Analyzer FM-SAE-A100 determines ion concentrations in 200 μL sample volume within 25 seconds. Incorporated with latest ion selective electrode technology for reliable analysis. Designed with automatic monitoring and filtering of air bubbles to improve accuracy. Features wave and pipeline flushing to prevent cross-contamination. Our Semi-auto Electrolyte Analyzer facilitates quantitative diagnosis of electrolyte disorders.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Semi-auto Electrolyte Analyzer helps in clinical routine diagnostics and emergency assessment of ion concentrations during electrolyte imbalances.
| Sample Type | Whole blood, serum, plasma, cerebrospinal fluid, dilute urine |
| Sample Volume | 200 μL |
| Measuring Time | ≤ 25s |
| Analysis Method | Ion selective electrode (ISE) |
| Measuring Parameters | K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, TCO2, pH, AG |
| Measuring Range | K+0.5 to 20 mmol/L Na+15 to 200 mmol/L Cl-15 to 200 mmol/L Ca2+0.1 to 6 mmol/L TCO22 to 70 mmol/L pH4 to 9 |
| Resolution | K+0.01 mmol/L Na+0.01 mmol/L Cl-0.01 mmol/L Ca2+0.01 mmol/L TCO20.1 mmol/L pH0.01 |
| Working Temperature | 10 to 40 ℃ |
| Relative Humidity | ≤ 80% |
| Atmospheric Pressure | 86 to 106 kPa |
| Number Of Sample Positions | 30 |
| Injection Mode | Manual |
| Calibration | Automatic and Manual calibration |
| Display | 7-inch HD touch screen |
| Language | Customizable |
| Storage | Up to 50,000 test results |
| Printer | Built-in thermal printer |
| Interface | RS232 port |
| Power Supply | AC 110 to 240 V, 50 to 60 Hz, 70VA |
| Dimensions (W × D × H) | 405 × 214 × 471 |
| Packaging Dimensions (W × D × H) | 500 × 390 × 530 |
| Net Weight | 13.13 kg |
| Gross Weight | 16.73 kg |
