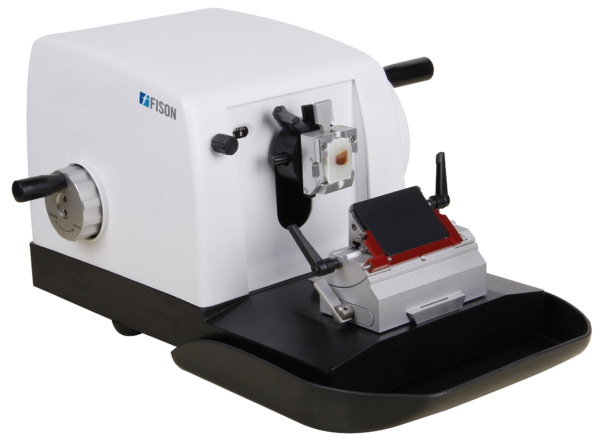

Rotary (Manual) Microtome FM-MRT-A102 is a rotary benchtop unit ergonomically designed with a coarse-advance hand wheel and convenient stacking of consumables. Designed with red bar cover on blade holder for protecting the cutting edge. Multifunctional unit includes specimen retraction and trimming function along with replaceable specimen holding system. The specimen clamp can hold a block for maximum slice sectioning up to 60 × 50 mm.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for high-precision sectioning in hospitals, medical colleges, research laboratories, inspection and quarantine institutions for animal and plant, and judicial identification institutions.
| Section thickness range | 0 to 60 µm |
| Section setting values | From 0 to 2 µm, 0.5 µm increment From 2 to 10 µm, 1 µm increment From 10 to 20μm, 2 µm increment From 20 to 60μm, 5 µm increment |
| Trimming section range | 1 µm to 60 µm |
| Minimum sectioning thickness | 0.5 µm |
| Precision error | ± 1% |
| Maximum specimen dimension | 60 mm × 50 mm |
| Horizontal specimen stroke | 24 mm |
| Vertical specimen stroke | 52 mm |
| Specimen orientation | – |
| Specimen retraction | 0 to 28 mm |
| Overall dimension (W × D × H) | 565 × 440 × 285 mm |
| Net weight | 28 kg |
