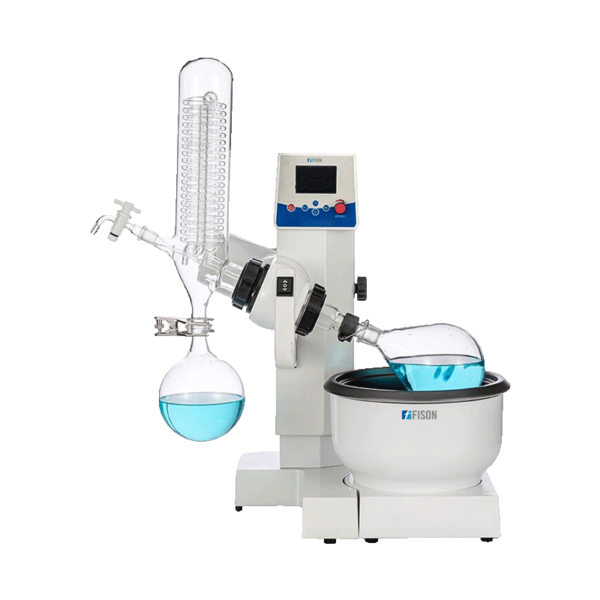

Rotary Evaporator FM-RE-A100 operates at maximum speed of 250 rpm, efficiently evaporating solvents. In between room temperature to 99℃ under a vacuum of 0.098Mpa it allows rapid and effective collections. Equipped with a double-layer condenser that improves heat exchange. Made with borosilicate glass, which is resistant to thermal shock and chemical reactions, offers high durability.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Rotary evaporators are primarily used in pharmaceutical, chemical, and biopharmaceutical industries for processes like concentration, crystallization, drying, separation, and solvent recovery.
| Rotating Speed | 0 to 250 rpm |
| Temperature Control Range | RT to 99 ℃ |
| Temperature Control Accuracy | ±1 ℃ |
| Vacuum | 0.098 Mpa |
| Rotary Flask Capacity | Eggplant shape 1L φ 131 mm |
| Collecting Flask Capacity | Spherical shape 1L φ 131 mm |
| Control Panel | Digital display of temperature Digital display of temperature and speed LCD display of temperature and speed |
| Lifting Stroke of the main Machine | 120 mm |
| Condensing Area | 0.17 m2 |
| Water bath Capacity | Φ 235 × 145 H; About 6.2L |
| Rotating Motor Power | 40 W （Brushless DC motor） |
| Lifting Motor Power | 20 W |
| Heating Power | 1200 W |
| Vacuum Pump Speed of Evacuation | 30 L/ Min |
| Vacuum Pump Ultimate Pressure Vacuum | ≥ 0.095 Mpa 50 mbar |
| Vacuum Pump Head | 2 |
| Vacuum Pump Motor Power | 220V AC/50Hz |
| Voltage and Frequency | 220V/50 Hz 110 V/60 Hz |
| Total Power | 1260 W |
| Dimensions | 620 × 620 × 470 mm |
| Weight | 25 Kg |
