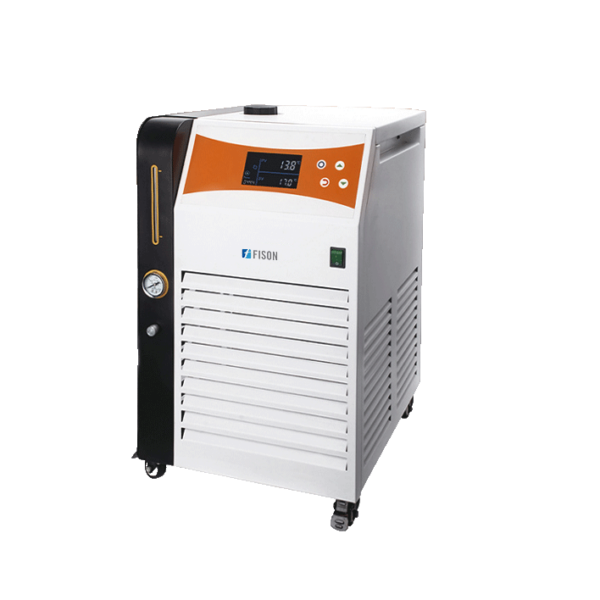

Recirculating Chiller FM-RC-A100 is an energy-efficient circulating chiller with a pump capacity pressure of 0 to 1.5 bar having a filling capacity of 8L that promotes cooling efficiency with high-performance functionality. Improved with PID temperature controlling technology enhances temperature stability that works within a temperature range between 5 to 40 °C. Engineered with a TECUMSEH compressor it guarantees efficient cooling while reducing noise levels.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
It is widely used in biological and medical fields to cool laboratory equipment such as rotary evaporators and preservation of biological samples, cells, and tissues.
| Filling Capacity | 8 L |
| Temperature Range | 5 to 40 ˚C |
| Pump Capacity Pressure | 0 to 1.5 bar |
| Temperature Control System | PID |
| Stability | ± 0.3˚C |
| Sensor | PT Sensor |
| Resolution | 0.1˚C |
| Pump Flow Rate | 20 L/min |
| Refrigerant | R134a |
| Power Consumption | 1.2 kW |
| Power Supply | AC 220 V ±10 %, 50 Hz |
| Dimension | 550 × 400 × 650 mm |
| Packaging Dimension | 750 × 580 × 910 mm |
| Weight | 74 Kg |
