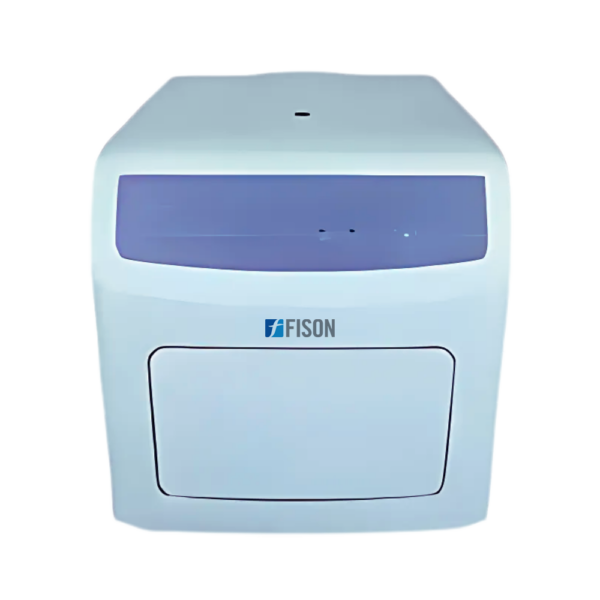

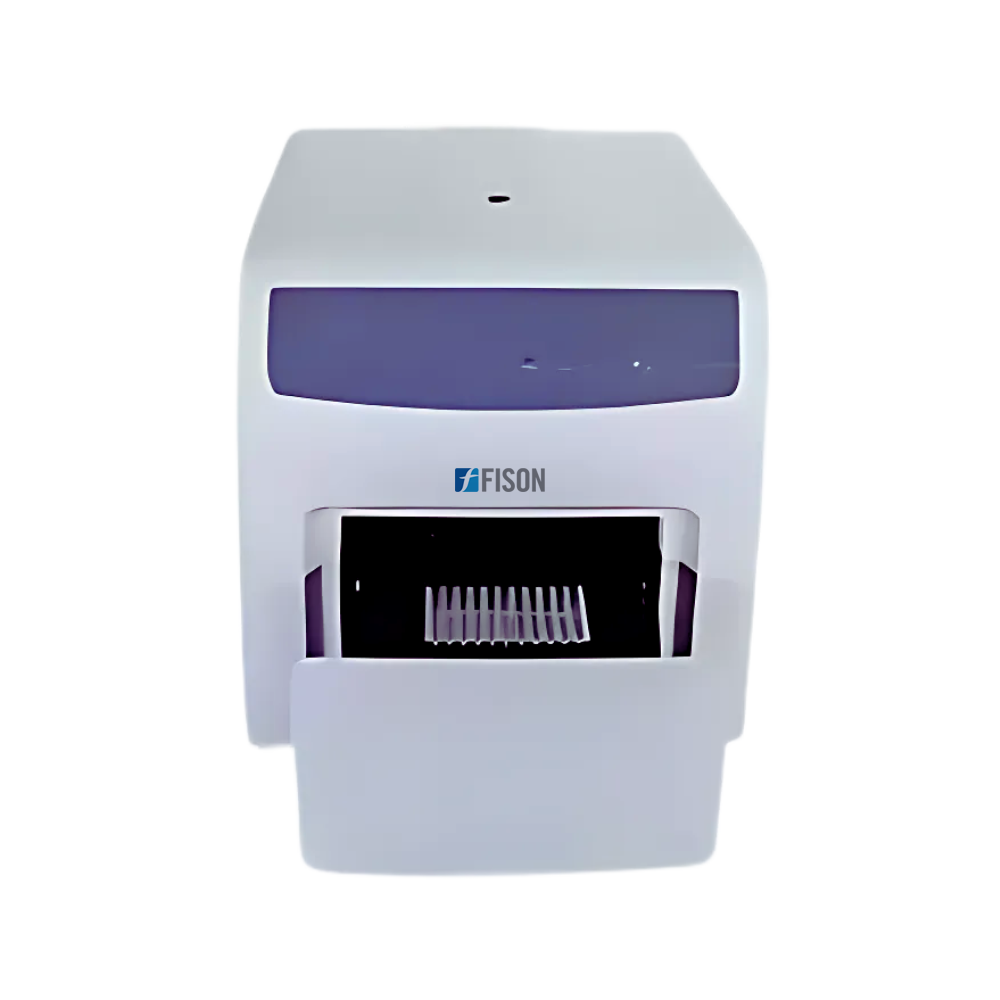

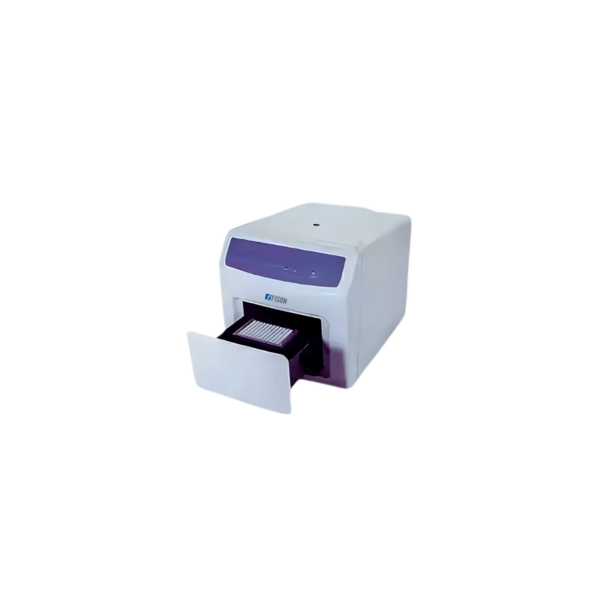

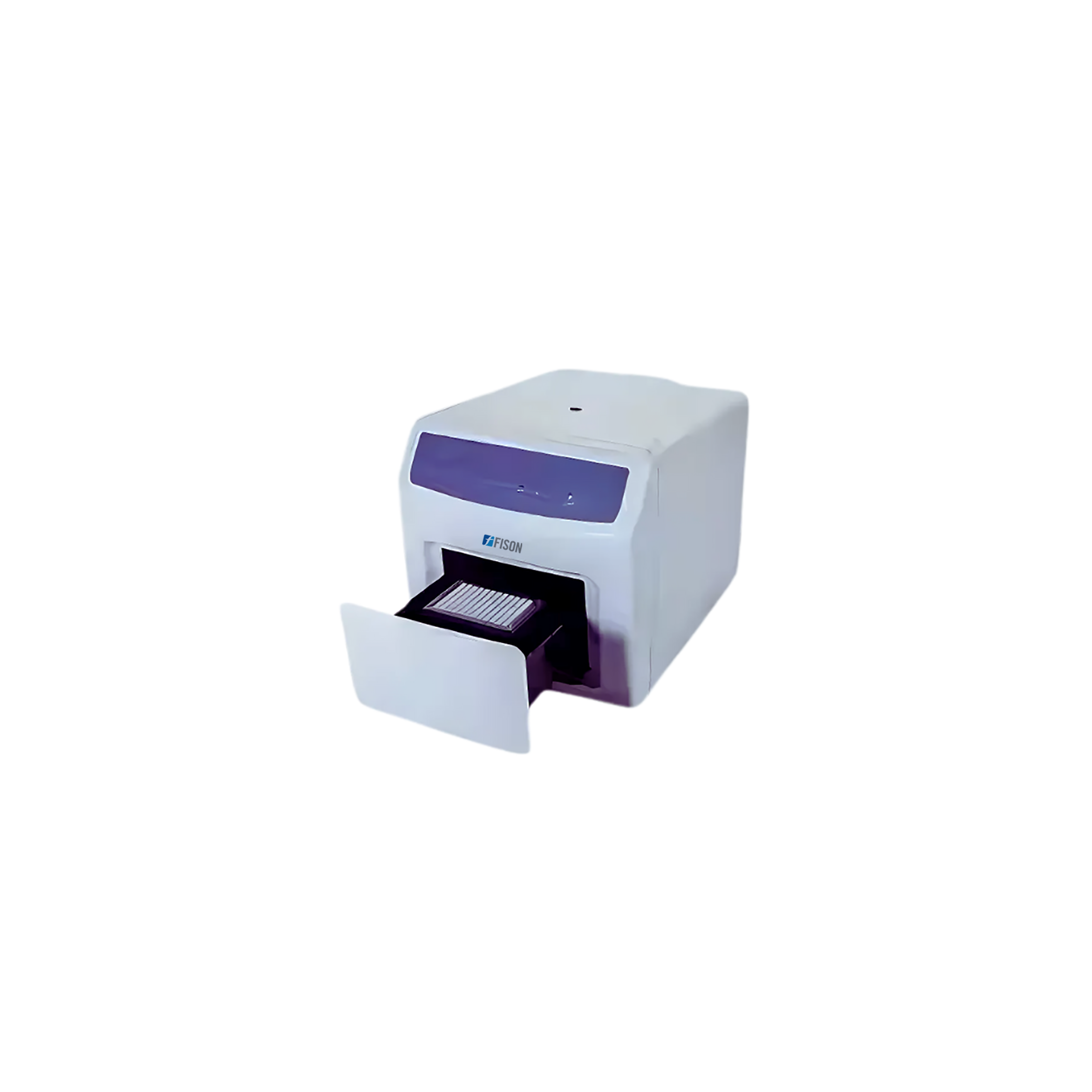

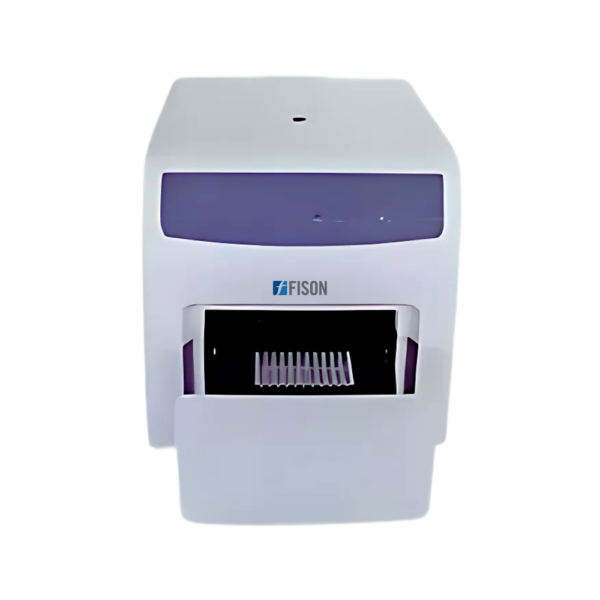

Real Time PCR FM-RTP-A101 offers precise and efficient quantitative analysis of nucleic acids. This advanced device can accommodate up to 96 samples and features six fluorescent detection channels. Its creative design minimizes multi-color crosstalk and eliminates edge effects. Advanced Optical scanning detection system enhances signal accuracy and reproducibility. With its robust design and innovative features, the PCR ensures reliable performance, high sensitivity, and user-friendly operation.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Real Time PCR has wide applications across scientific research, clinical diagnostics, quality control, safety testing, and forensic sciences.
| Sample capacity | 96 wells |
| Reaction volume | 10 to 50 μL |
| Thermal cycle technology | Peltier |
| Maximum Heating/Cooling rate | 6.0° C/s |
| Heating temperature range | 4 to 100 °C |
| Temperature accuracy | ± 0.2 °C |
| Temperature uniformity | ± 0.2 ℃ at 60 ℃,&± 0.3 ℃ at 95 ℃ |
| Temperature gradient setting range | 30 to 100 °C |
| Temperature gradient difference setting range | 1 to 36 °C |
| Excitation light source | 4 monochrome high efficiency LEDs |
| Detector | PMT |
| Detection mode | Time-resolved signal separating technology |
| Excitation/detection wavelength range | 455 to 650 nm/510 to 715 nm |
| Fluorescent channels | 5 channels |
| Supported dye | FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ |
| Sensitivity | Single copy gene |
| Resolution | 1.33 folds copy number difference can be distinguished in single-plex qPCR |
| Dynamic range | 10 orders of magnitude copies |
| Packing Dimension (W × D × H) | 960 × 660 × 750 mm |
| Gross weight | 47 Kg |
