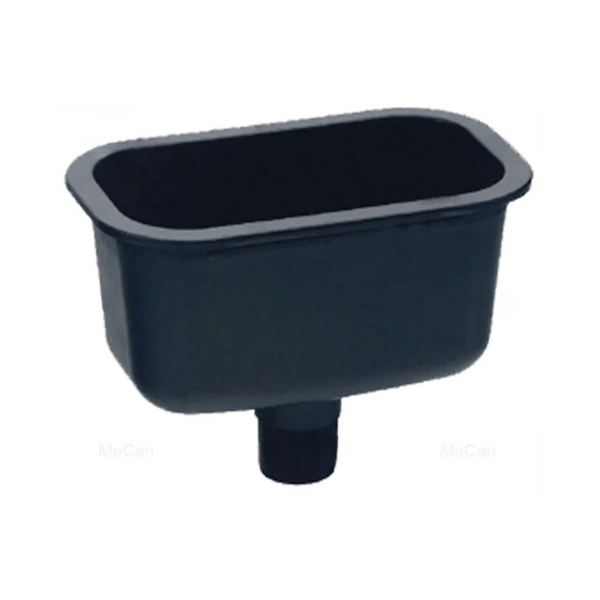

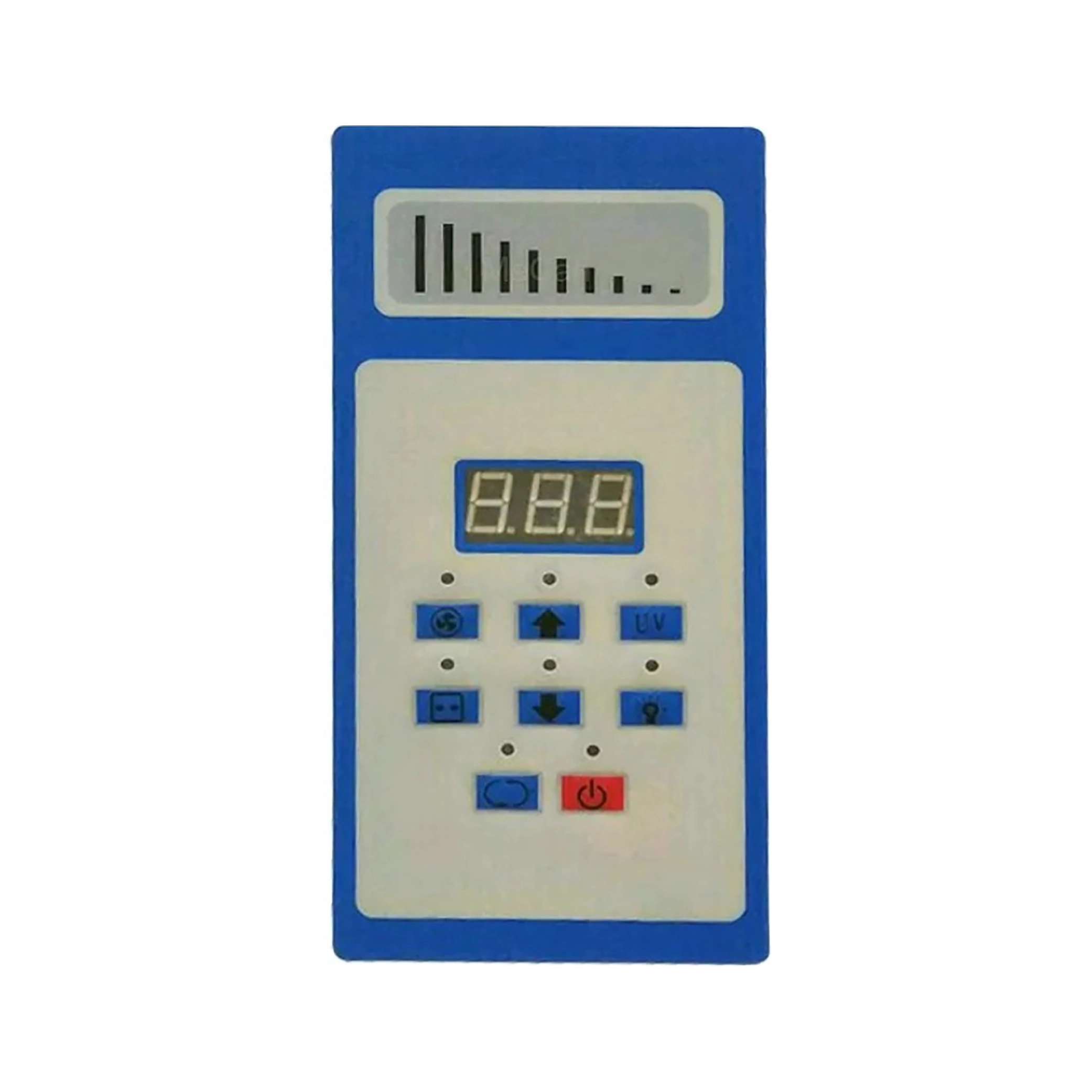

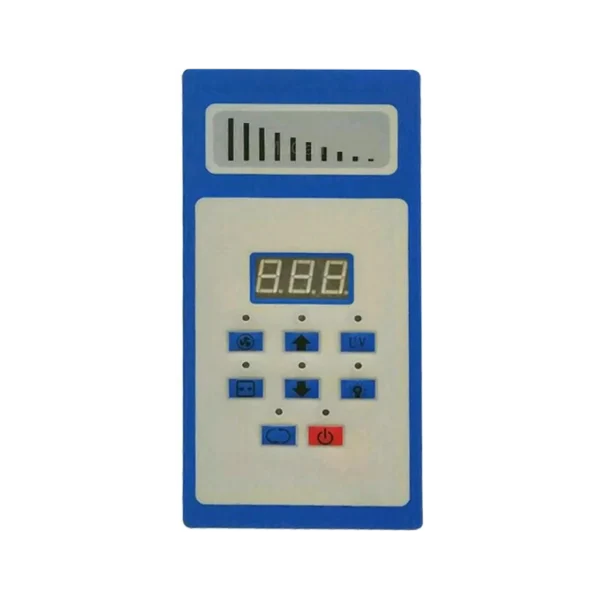

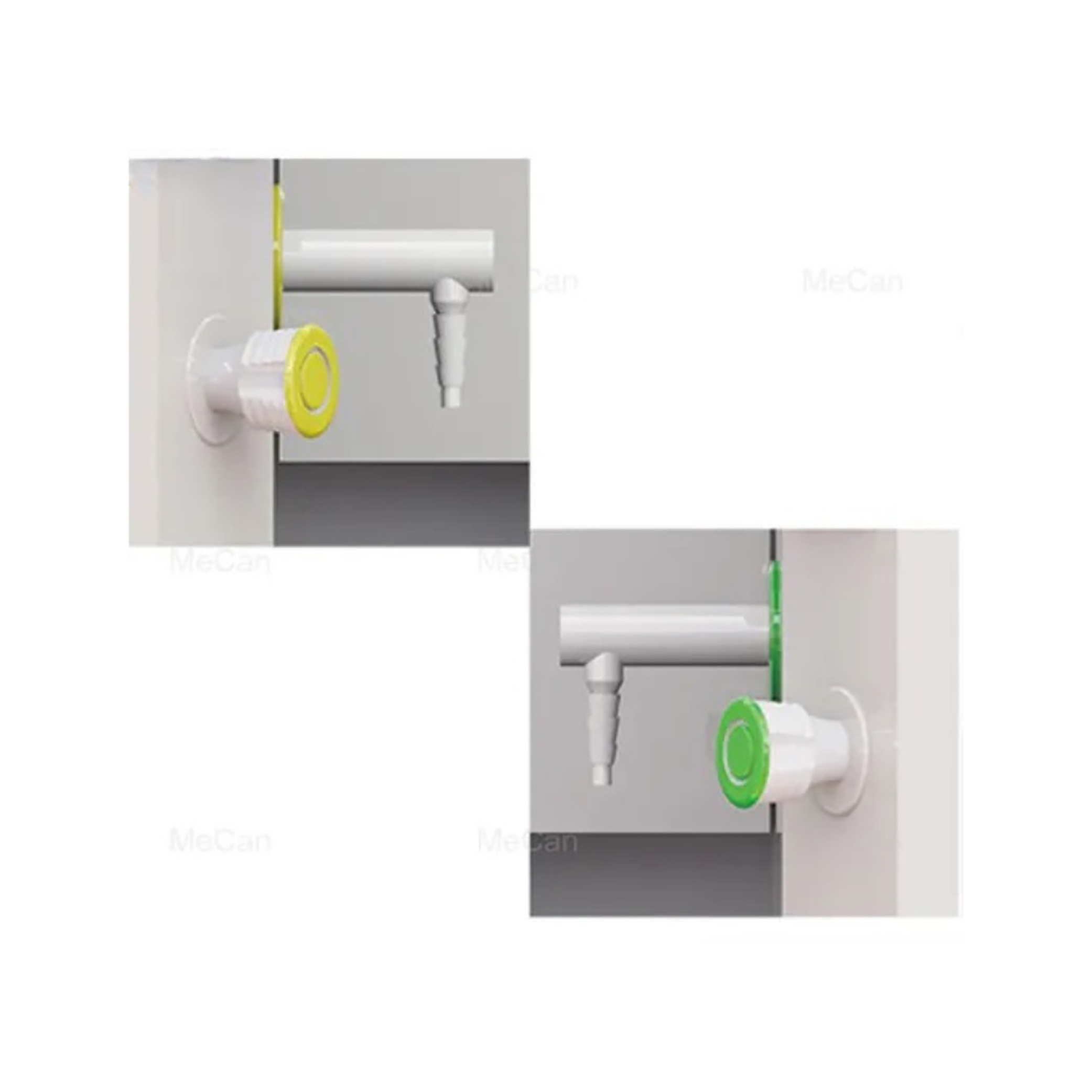

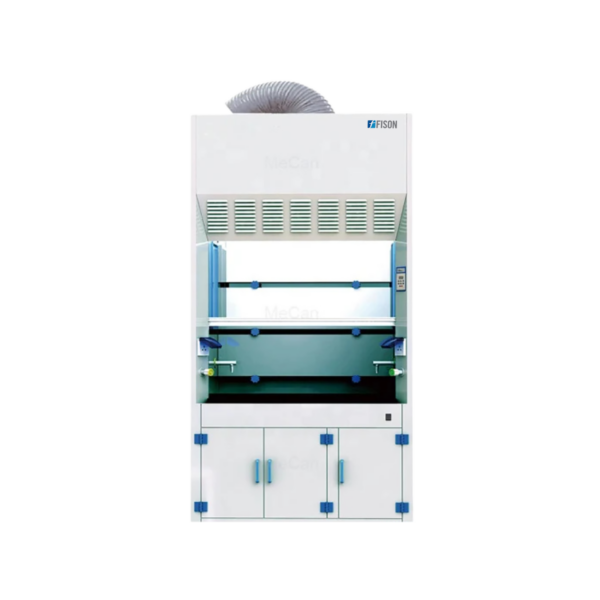

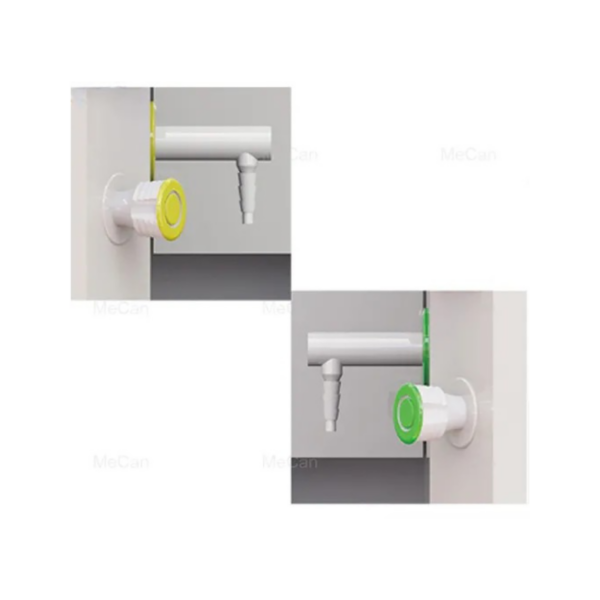

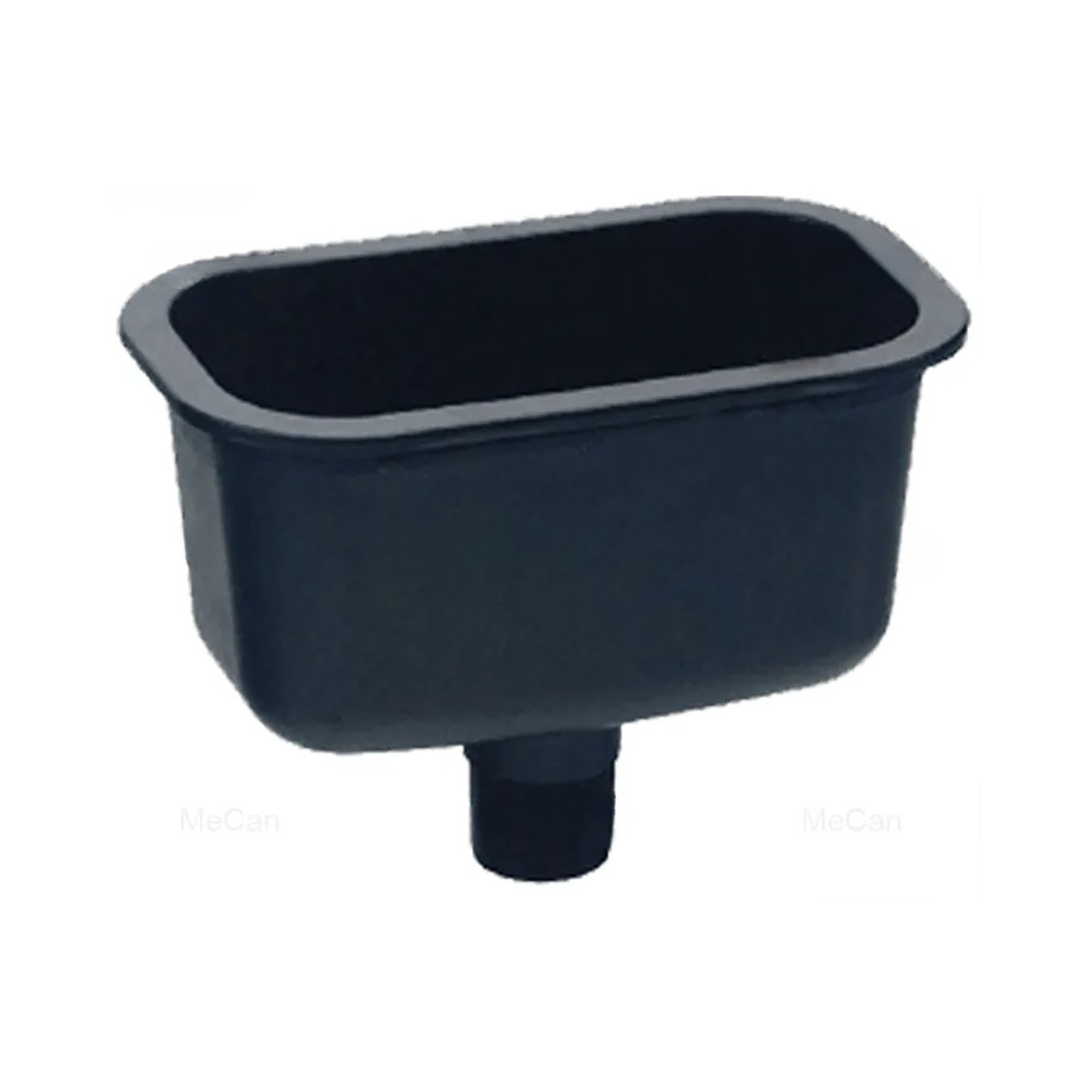

PP Ducted Fume Hood FM-PDF-A103 is a floor standing unit with microprocessor control system, and LED display. It comes with 1580 × 570 × 700 mm chamber dimension, 740 mm maximum opening and adjustable air speed. Equipped with 4 m PVC exhaust duct situated at the top, and built-in PP centrifugal blower. Designed with Manual 5 mm toughened glass adjusting window, waterproof sockets, water sink, water tap, gas tap, exhaust and chemical resistant phenolic resin work table. Single door and double door base cabinet with handle allows large storage place.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for providing effective working environment for laboratory experiments in various fields of microbiology, chemical, toxicology, biotechnology, research centers etc. Also has applications in chemical engineering, material science, environmental toxic analysis, analytical chemistry, and trace metal analysis.
| Internal dimension (W × D × H) | 1587 × 560 × 700 mm | ||||
| External dimension (W × D × H) | 1847 × 800 × 1422 mm | ||||
| Work surface height | 820 mm | ||||
| Maximum opening | 740 mm | ||||
| Air velocity | 0.3 to 0.8 m/s | ||||
| Noise | ≤ 68 dB | ||||
| Illuminating lamp | LED 36 W × 2 | ||||
| Blower | 2 Built-in PP centrifugal blower, speed adjustable | ||||
| Front window | Manual 5 mm toughened glass with adjusting height | ||||
| Material |
| ||||

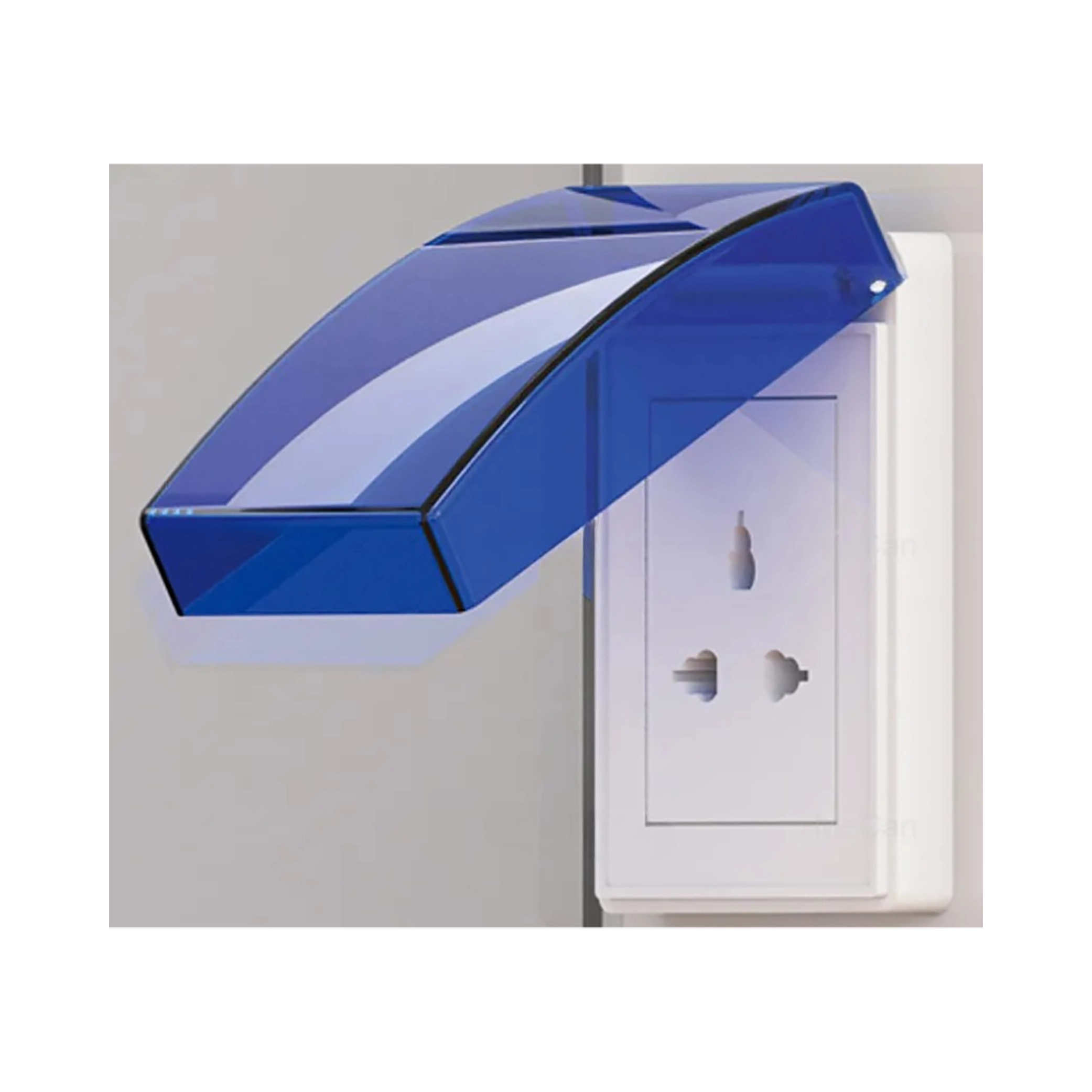

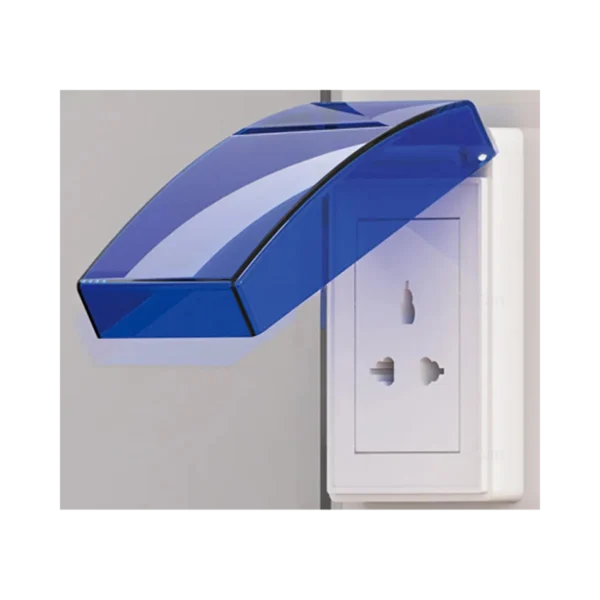

| Waterproof socket | 2 pcs | ||||
| Power | 360 W | ||||
| Power supply | AC 220 V ± 10%, 50/60 Hz or 110 V ± 10%, 60 Hz | ||||
| Pacakging dimension |
| ||||
| Net weight | 177 kg | ||||
| Gross weight | 345 kg |
