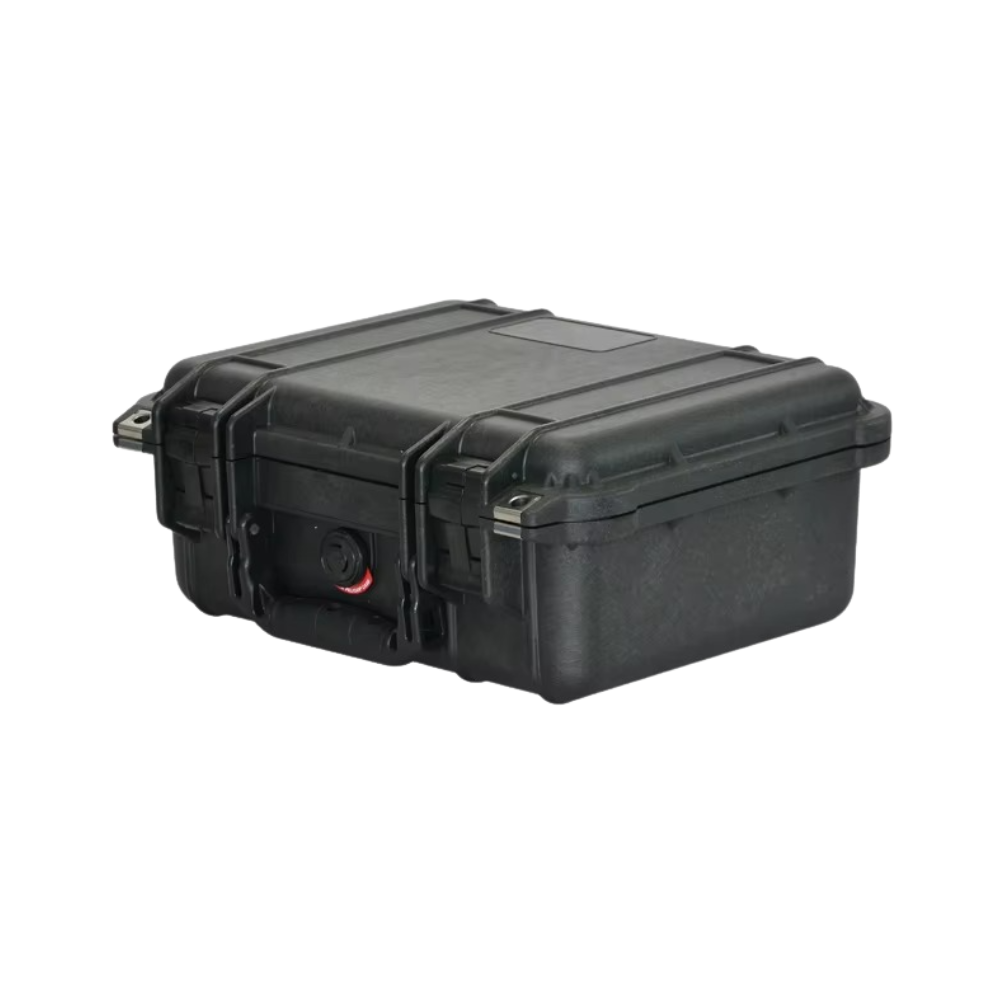

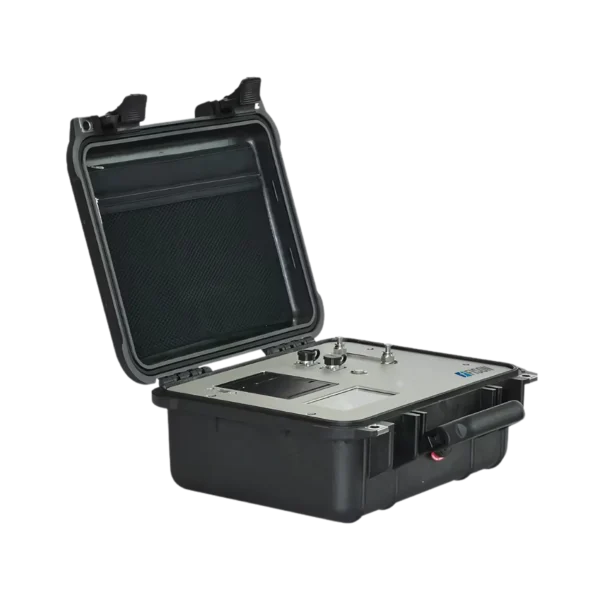

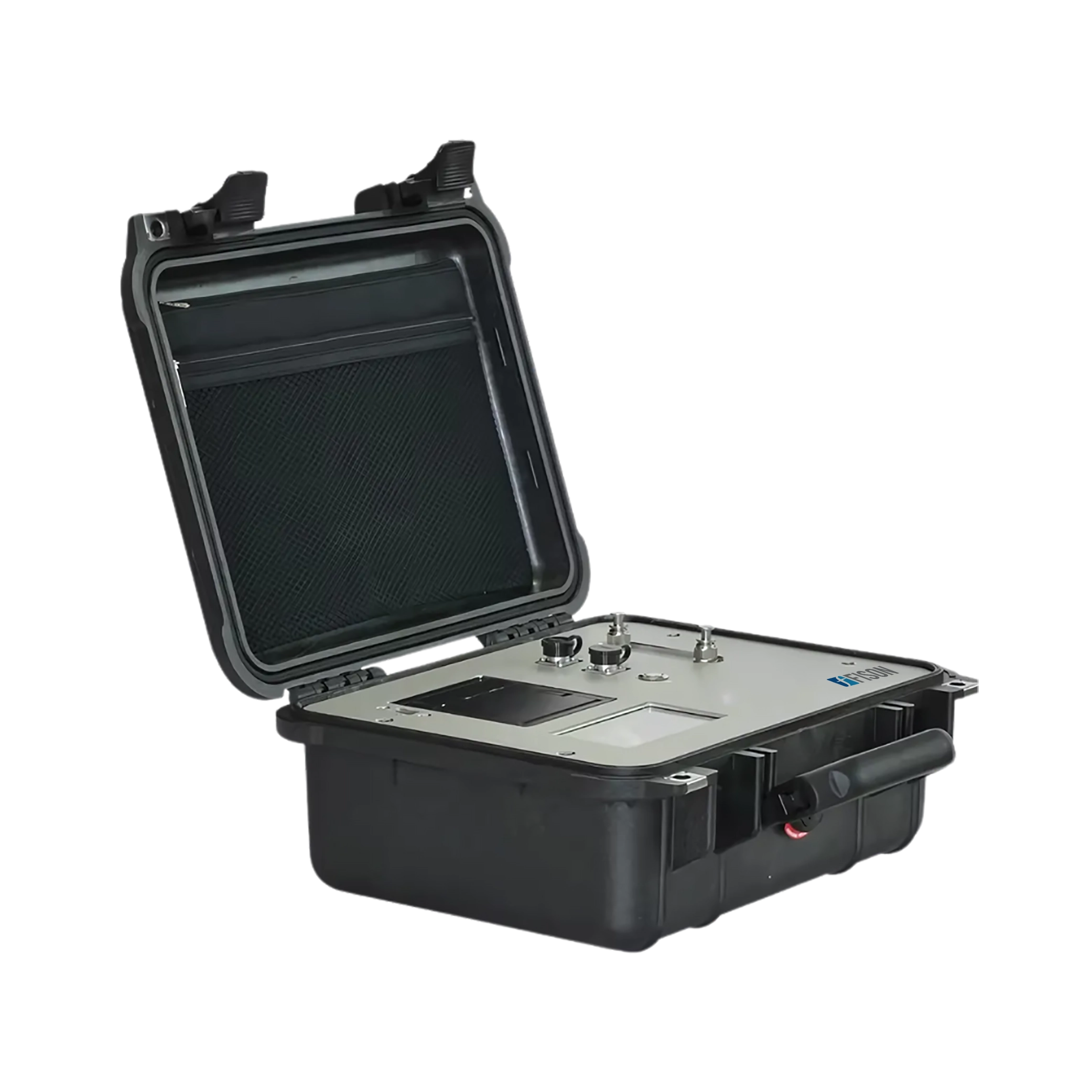

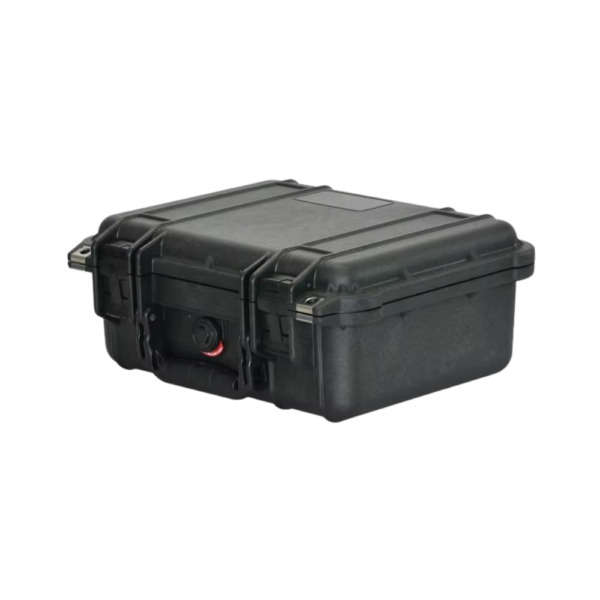

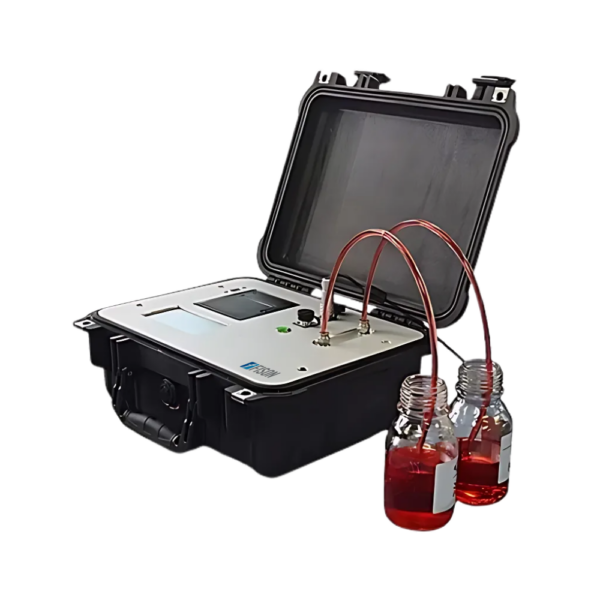

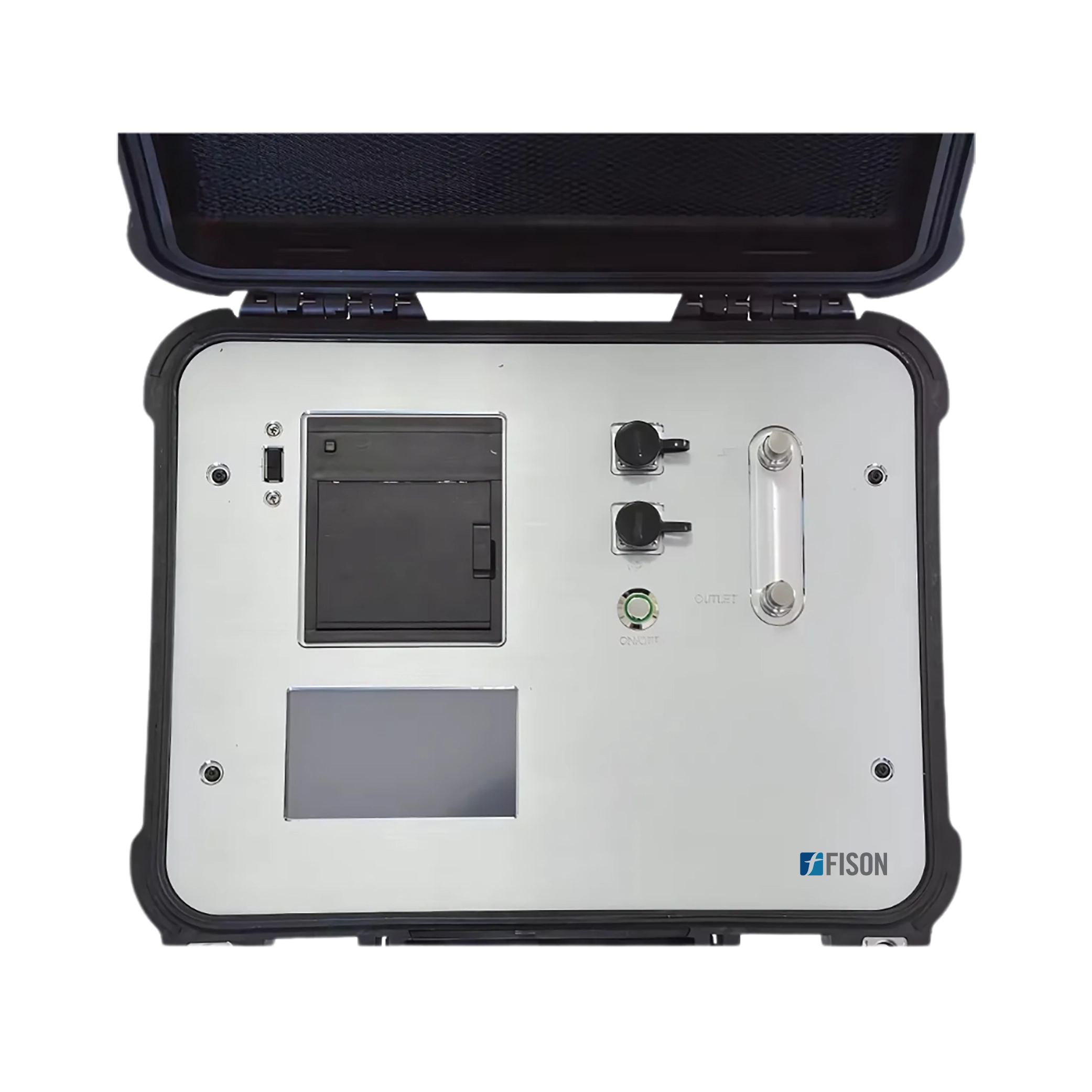

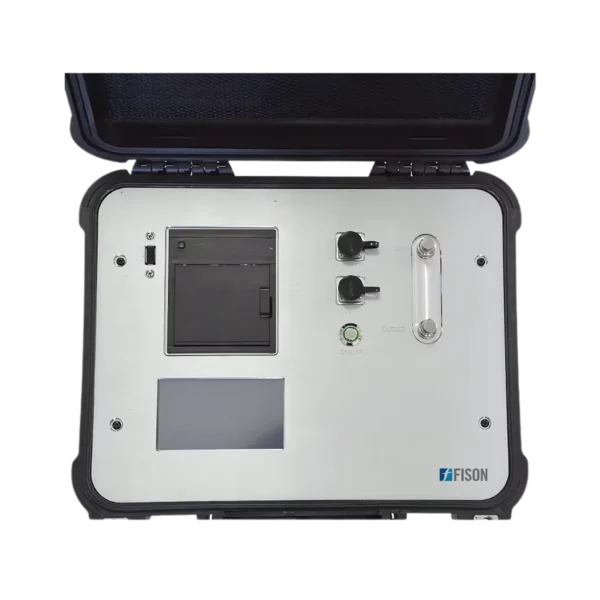

Portable Oil Particle Counter FM-POC-A101 measures particles from 1μm to 600μm with 1μm or 4μm sensitivity for flexible detection. It features 8 detection channels with a speed of detection ranging from 5ml/min to 35ml/min. Our particle counter quantifies the number of particles /10 ml and categorizes the oil cleanliness for assessing quality and condition. Equipped with color LCD screen for real-time monitoring of various parameters.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Portable Oil Particle Counter is widely used in industrial maintenance, hydraulic systems, lubrication oil analysis, fuel oil quality control field testing, etc.
| Particles Size Range | 1μm to 600μm |
| Sensitivity | 1μm (ISO 4402) or 4μm (C) (GB/T18854-2002, ISO 11171) |
| Detection Channel | 8 |
| Detection Speed | 5ml/min to 35ml/min |
| Sampling Volume | 10ml |
| Sampling Methods | Offline or Online |
| Sampling Volume Precision | ±3% |
| Cleaning Speed | 5ml/min to 35ml/min |
| Offline Testing Viscosity | ≤100cSt (highest viscosity can be up to 400cSt) |
| Online Testing Pressure | 0.1 to 0.6Mpa (highest pressure can reach 40Mpa) |
| Rinse Volume | 0ml to 90ml; Interval- 1ml |
| Coincidence Error Limit | 12000 to40000 small Particles/ml |
| Repeatability | RSD＜2% |
| Light Source | Semiconductor Laser |
| Precision of Calculate | ±10% |
| Interval of On-line Measuring Time | 1 second to 10Hours 59Minutes 59 Seconds |
| Temperature of Sample | 0℃ to 80℃ |
| Working Temperature | -20℃ to 60℃ |
| Storage Temperature | -30℃ to 80℃ |
| Output Data | Thermal Printer, USB Storage or Computer |
| Communication Interface | Standard is RS232 RS485(optional) |
| Report Method | Number of Particles/10ml and Cleanliness Grade |
| Power | 100V to 265VAC |
| Dimension (L×W×H) | 350 × 295 × 150 mm |
| Packing Dimension(L×W×H) | 420 × 420 × 380 mm |
| Net Weight | 5 Kg |
| Gross Weight | 11 kg |
