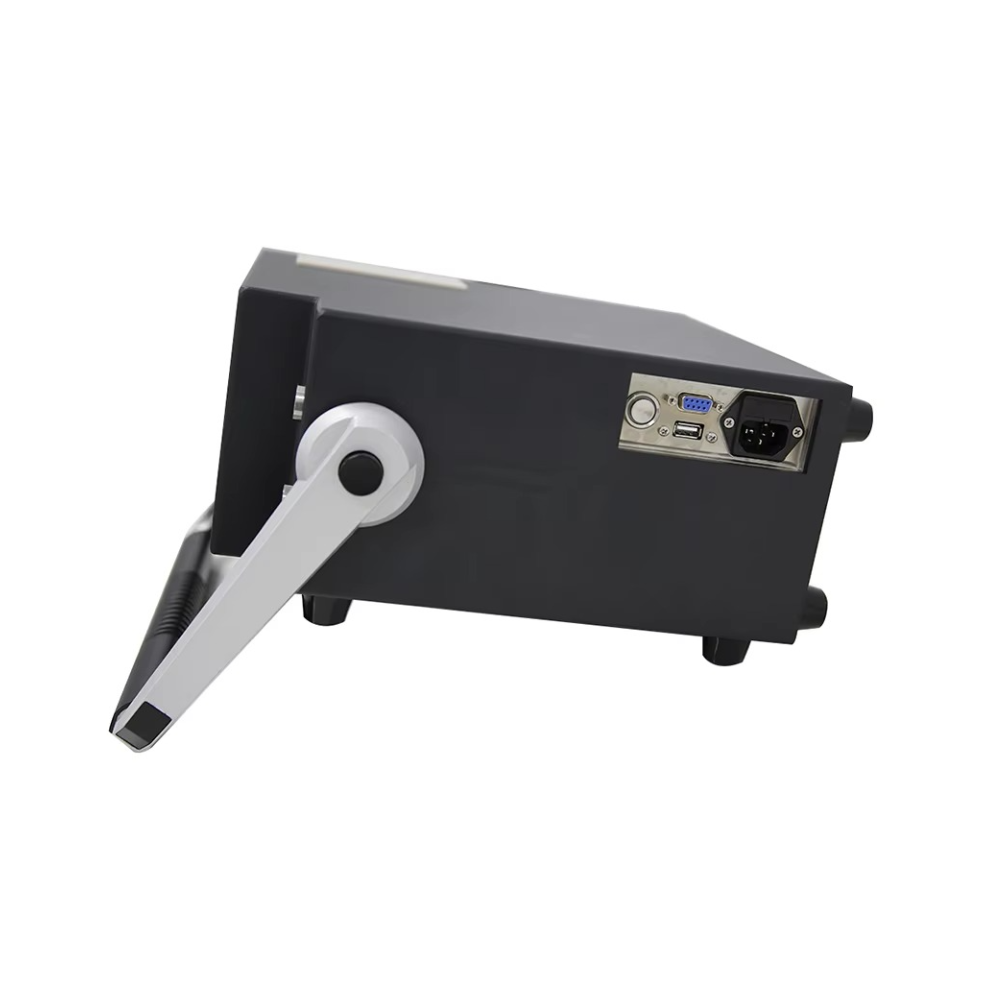

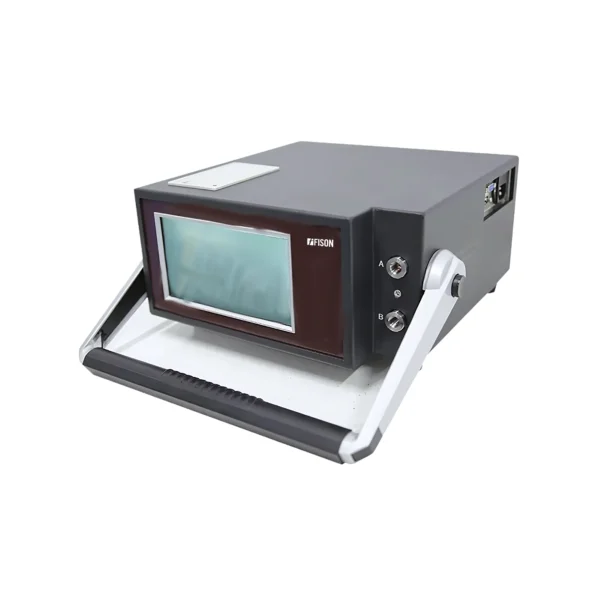

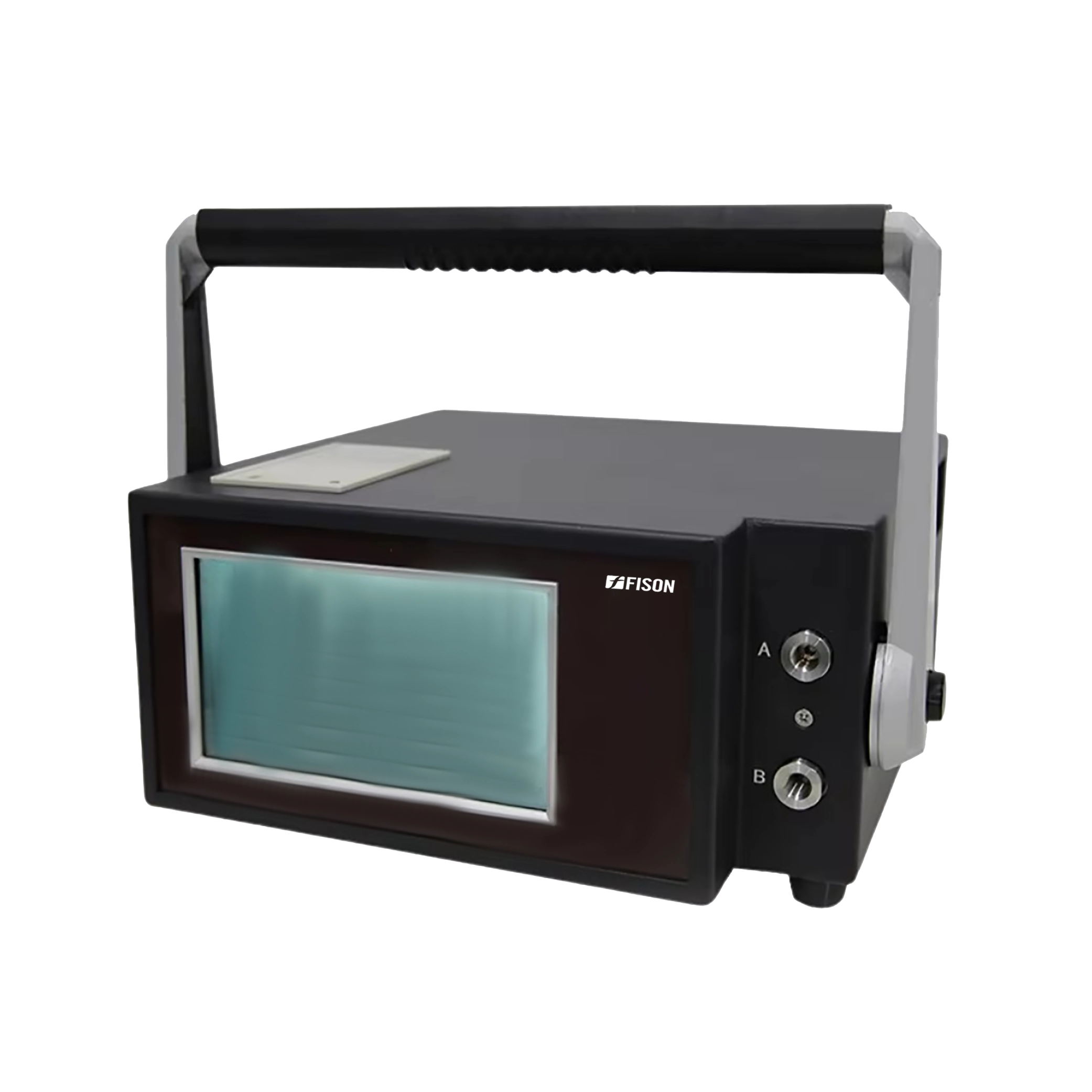

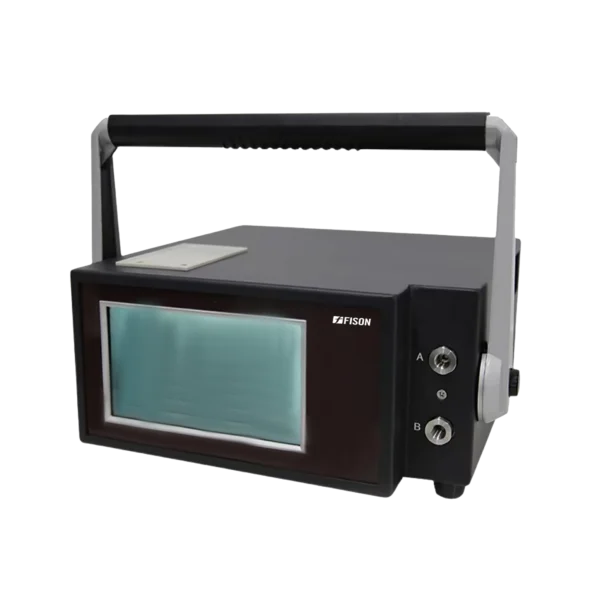

Portable Oil Particle Counter FM-POC-A100 detects particles from 0.8 to 600 µm, capturing both fine and coarse contaminants. It has a sampling volume range from 0.2 to 6000 mL with a sampling speed from 5 to 80 mL/min. Offers 8 to 64 detection channels and up to 1000 customizable particle-size channels for flexible and efficient oil analysis. It is equipped with an intuitive touchscreen interface for operating variable parameters.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Portable Oil Particle Counter is widely used in industrial maintenance, hydraulic systems, lubrication oil analysis, fuel oil quality control field testing, etc.
| Particle Size Range | 0.8 to 600μm |
| Detection Channels | 8 to 64 |
| Sensitivity | 0.1μm |
| Sampling Volume | 0.2 to 6000ml |
| Sampling Volume Interval | 0.1ml |
| Sampling Accuracy | ±1% |
| Sampling Speed | 5 to 80ml/min |
| Cleaning Speed | 5 to 80ml/min |
| Cleaning Volume | 0ml to 90ml |
| Counting Accuracy | < ±5% |
| Resolution | ≤ 10 |
| Repeatability | RSD <2% |
| Light Source | Semiconductor laser |
| Coincidence Error | 12000 to 40000 grains/ml |
| Offline Viscosity Detection | ≤ 100cSt(pressure chamber can be selected when the viscosity is too large) |
| Low-Pressure Range | 0 to 0.6MPa |
| High Pressure | upto 42MPa |
| On-Line Detection Interval | arbitrarily set |
| Test Sample Temperature | 0℃ to 80℃ |
| Working Temperature | -20℃ to 60℃ |
| Storage Temperature | -30℃ to 80℃ |
| Screen Size | 7- inch |
| Battery Capacity | 5200mAh |
| Battery Running Time | 6 to 8 hours |
| Standards | NAS1638, GJB420A, GJB420B, ISO4406, SAE4059DPC, SAE4059CPC, GB/T14039, GOST17216, QC/T29104, JB/T9737, DL/T432, SAE749D andHH005-2018 |
| Power Supply | AC100to 240V, 50/60Hz |
| Dimension (L×W×H) | 310 × 305 × 135mm |
| Packing Dimension (L×W×H) | 300 × 400 × 500 mm |
| Net Weight | 8 kg |
| Gross Weight | 11 kg |
