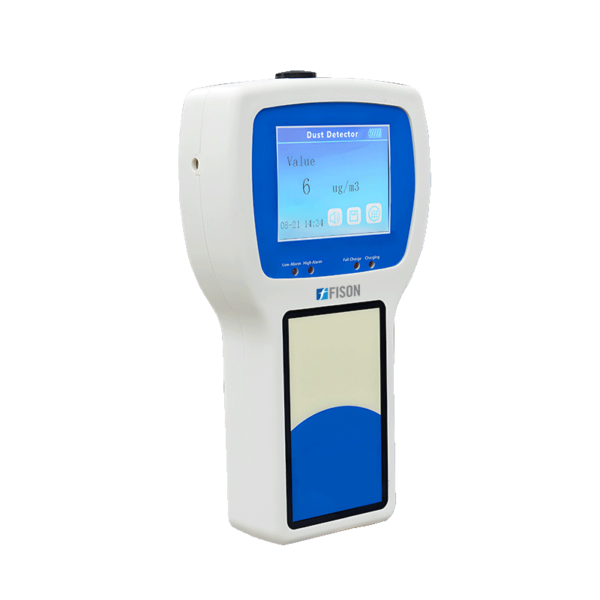

Portable Dust Monitor FM-DTM-A101 is equipped with a laser detector that categorizes particulate matter into PM10, PM2.5, and PM1 fractions. Incorporates a high-power carbon film self-priming pump and follows the pump suction method for the detection of particles. Our dust monitor offers dual-unit measurement, enhancing versatility for diverse standards and preferences. It has a user-friendly LCD touchscreen, ensuring intuitive and seamless operation.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Widely utilized in occupational safety, environmental monitoring, indoor quality assessments, regulatory compliance, clean monitoring, educational and training purposes.
| Detection gas | Dust (PM10, PM2.5, PM1) |
| Detection method | Pump suction |
| Detection principle | Laser |
| Measurement range | (0 to 1000) μg/m3; (0 to 1000) mg/m3 |
| Resolution | 1μmg/m3; 1mg/m3 |
| Temperature Range | -20 ℃ to 60℃ |
| Humidity | 0 % to 95 % RH |
| Sampling time | 1 minute |
| Sampling flow | 0.5 l/min |
| Frequency | ≥ 2 seconds |
| Alarm | Alarm sound and light |
| Response time | < 20s |
| Data storage | 1000 (erasable) |
| Bluetooth transmission | 10 meters (with obstacles); 30 meters ( no obstacles |
| Durability | 5 years |
| Dimension | 230 ×130 × 43cm |
| Weight | 400g |
