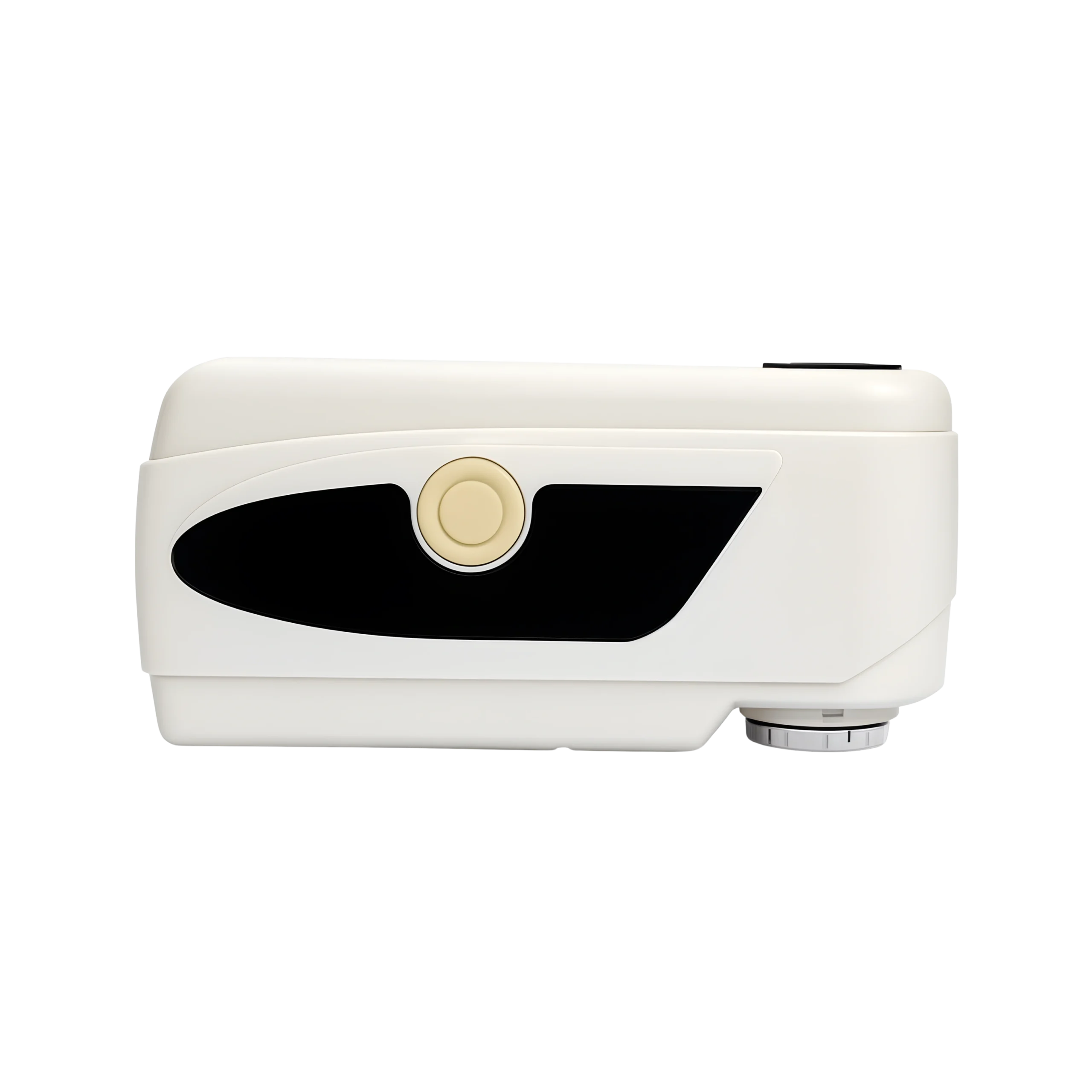

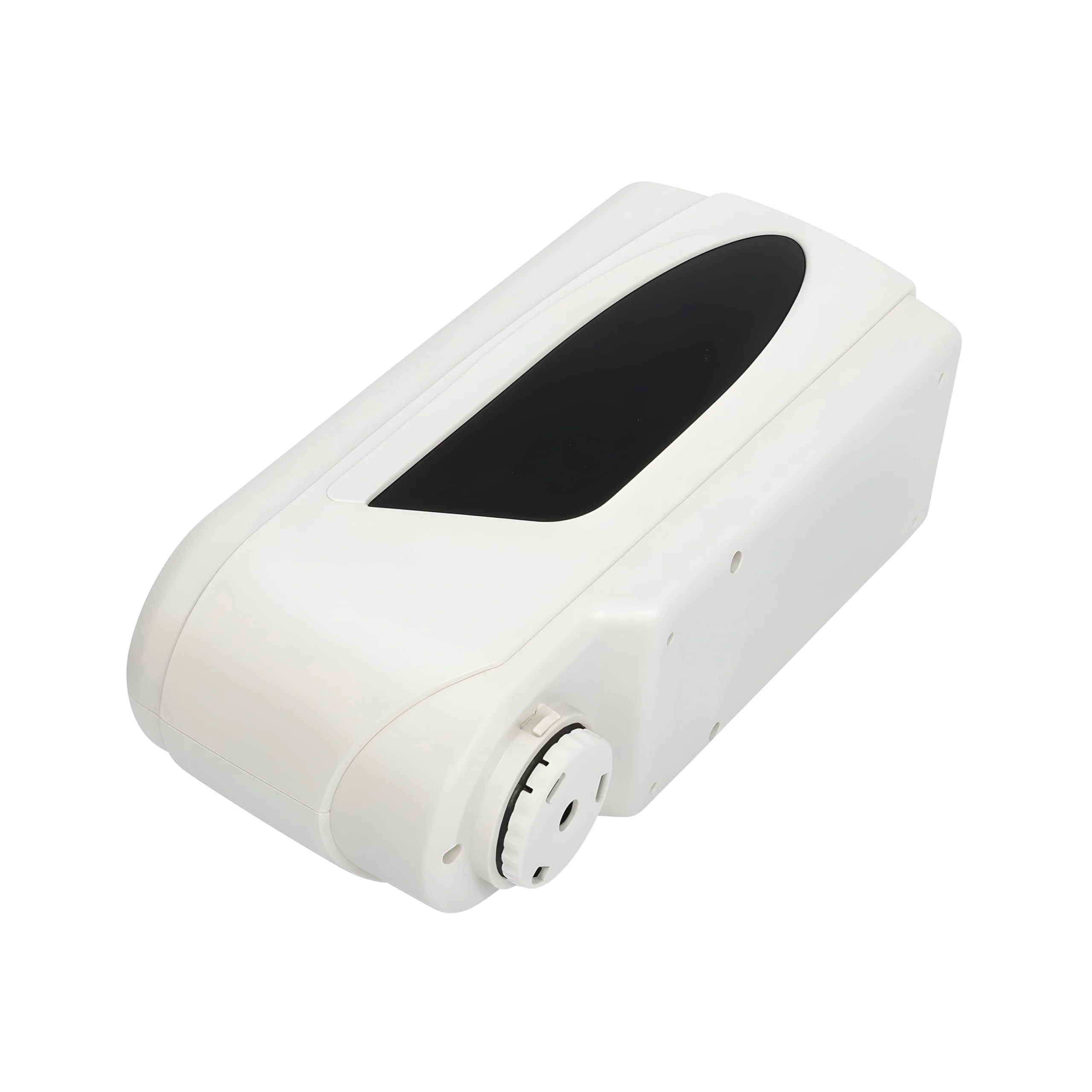

Portable Colorimeter FM-PC-B100 features an 8 mm measurement aperture for accurate and consistent color evaluation across different materials. It is designed as a portable and user-friendly device, it supports multiple international color systems and offers fast measurement speed. It also includes large data storage and software integration, making it suitable for quality control, R&D, and industrial applications.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
| Illuminating/Viewing Geometry | 8/d |
| Measuring Aperture | Φ8mm/Φ4mm |
| Detector | Silicon photodiode |
| Color Space | CIELabCh*, CIELab*, CIE XYZ, CIE RGB, CIELuv*, CIELCh, Yellowness & Whiteness, Color Fastness |
| Color Difference Formula | ΔEab, ΔLab, ΔECh*, ΔE CIE94, ΔE Hunter |
| Light Source | D65, D50, A |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.40 ΔE*ab |
| Storage | 1000 standards, 20000 pcs samples |
| Repeatability | Standard deviation within ΔE*ab 0.06 (average of 30 measurements of standard white plate) |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Charging Time | 2 hours (first time 8 hours – 100% electricity) |
| Measuring Times Before Recharging | More than 3000 times |
| Operating Temperature / Humidity Range | -10°C to 40°C, relative humidity 0–85% (no condensation) |
| Data Interface | USB |
| Extended Aperture (Optional) | Φ8mm extended aperture, available for measuring concave surface |
| Printer (Optional) | Miniature thermal printer |
| Power Source | Rechargeable lithium-ion battery, 3.7V @ 3200mAh |
| Dimension ( W × D × H ) | 205 × 70 × 100 mm |
| Weight | 500 g |
