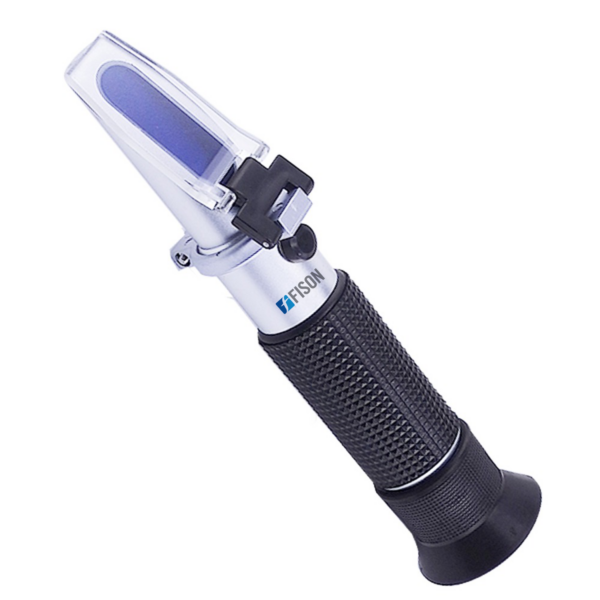

Portable Alcohol Refractometer FM-ALR-A101 is a handheld portable optical refractometer designed for measuring of ABV (alcohol by volume, alcohol percentage by volume) of ethanol/water mixtures. It is suitable for fruit brandies or other distillates which contain ethanol and water. For an accurate measurement, this refractometer ought to be used for solutions that do not contain pigments or sugar.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Reliably and accurately determine the alcohol content in a wide range of alcoholic beverages: all types of beer and beer mixtures, wine, cider, spirits, liqueurs, but also fermenting grape juice, wort, molasses, and wash.
| Type | Handheld and analogue type |
| Minimum alcohol percentage | 0 % V/V |
| Maximum alcohol percentage | 25 % V/V |
| Minimum alcohol volume | – |
| Maximum alcohol volume | – |
| Minimum scale value (alcohol) | 0.2 % of alcohol content |
| Brix concentration range | 0 to 40 Brix |
| Minimum scale value (brix) | 0.2 % of Brix |
| Glucose Baume | – |
| Accuracy of Baume | – |
| Maximum temperature compensation | 0°C |
| Minimum temperature compensation | 20°C |
| Material body | Metal, glass and rubber |
| Dimension | 30×40×160 mm |
| Weight | 0.20 kg |
