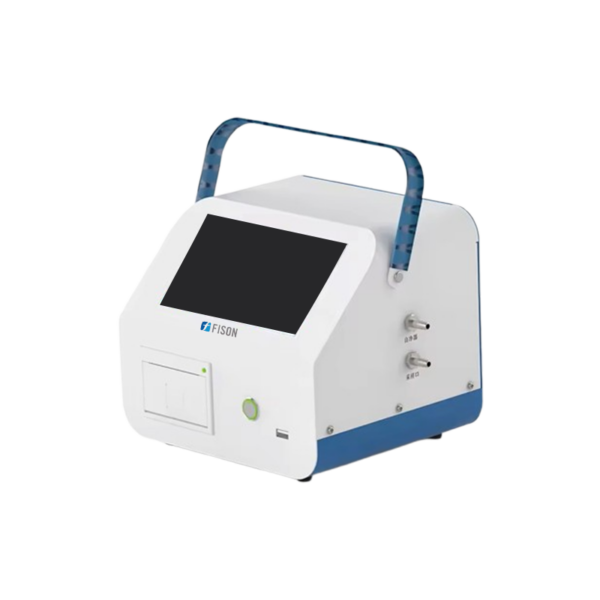

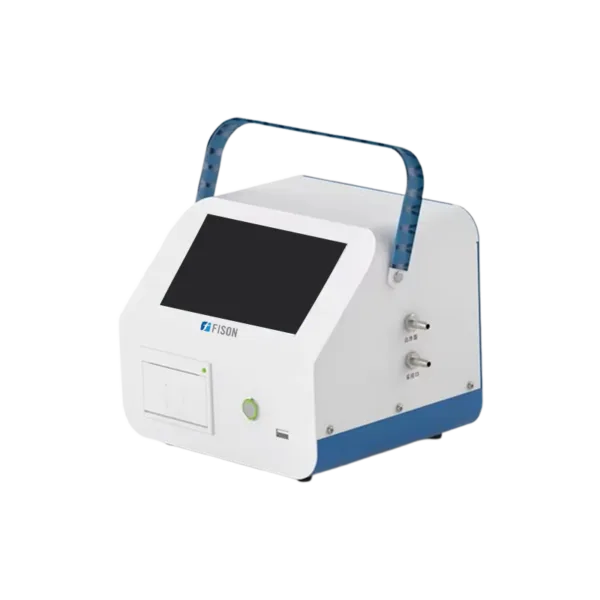

Portable Airborne Particle Counter FM-PPC-A100 provides precise air quality monitoring with a sampling volume of 28.3 L/min. It includes six particle-size channels for detecting a broad range of particle sizes. A large LCD screen that offers clear, real-time data and supports various data export formats. Its automated calibration system guarantees reliable and consistent performance over time
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Portable Airborne Particle Counter is widely used in sectors like pharmaceuticals, electronics, food processing, aerospace, and optics
| Flow rate | 28.3L/min (0.1cfm) |
| Particle Size | 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 (μm) |
| Auto-clean duration | ≤ 10min |
| Particle size deviation | 0.5 µm to 5 µm ≤ ± 30% |
| Particle concentration deviation | 0.5 µm ≤ ± 30% |
| Repeatability accuracy | ≤ ±10% |
| Working environment | 15 to 35℃, 10 to 85% RH |
| Sampling duration | Adjustable from 1 second to 99 minutes |
| Collection delay | ≤ 99s |
| Reading interval | ≤ 999s |
| Collection mode | single, ≤ 99 times (custom), continuous |
| Alarm level | Class100 to Class300,000 (FED209E standard) or 5 to 9 (ISO14464-1 standard) |
| Illumination source | Semiconductor diode (lifespan over 30,000 hours) |
| Display type | 7-inch color touch screen |
| Recharge duration | 3 hours |
| Continuous runtime | 8 hours |
| Power consumption | 25 W |
| Built-in battery | 220 Wh (16.8V/15Ah) |
| Power adapter | 84 W (16.8V/5A) |
| Packing Dimensions | 460 ×265 ×420 mm carton |
| Net weight | 8 Kg |
| Gross weight | 8.5 Kg |
