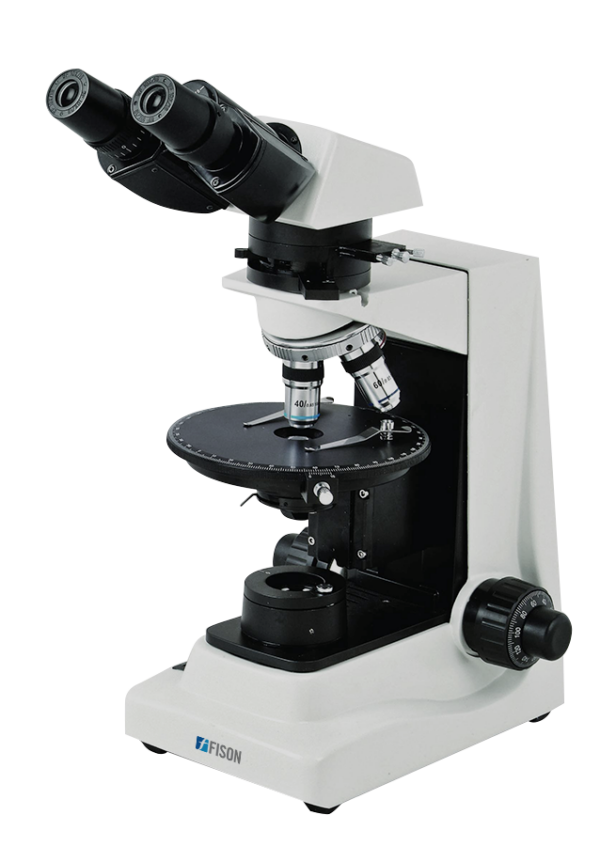

Polarizing Microscope FM-PM-A201 is an upright microscope with Seidentopf type trinocular head. It comes with polarizer which slides in/out of optical path, located on the top of collector. The 0°-90° gradation rotatable analyzer is used to observe single polarization.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used to observe performance of minerals, gems and other crystals figures by inspecting their colors and interference colors at microscopic level.
| Optical System | Finite optical system |
| Viewing head | Seidentopf type trinocular head inclined at 30°, 360° Rotatable |
| Polarizer | Sliding in/out of optical path, located on the top of collector |
| Analyzer | Rotatable analyzer with gradation 0°-90° |
| Objective | Achromatic objective 4X, 10X, 40X, 60X |
| Bertrand lens | Bertrand lens, sliding in/out of optical path |
| Optical Compensator | λ Slip (first class red), 1/4λ Slip, Quartz wedge |
| Eyepiece | Eyepiece WF10X/18 with scale of crosshair, WF10X/ 18 mm |
| Revolving round stage | Diameter 160 mm, 360° rotatable and graduated in 1°increments minimum resolution 6‘ when using Vernier scale, center adjustable |
| Illumination | 6V/20W Halogen lamp, brightness adjustable |
| Nosepiece | Backward quadruple nosepiece, adjustable center |
| Condenser | Abbe condenser NA 1.25 with iris diaphragm & filter |
| Focusing | Coaxial coarse & fine adjustment, range 28 mm, fine division 0.002 |
| Dimension | 232 × 260 × 460 mm |
| Weight | 11.5 kg |
