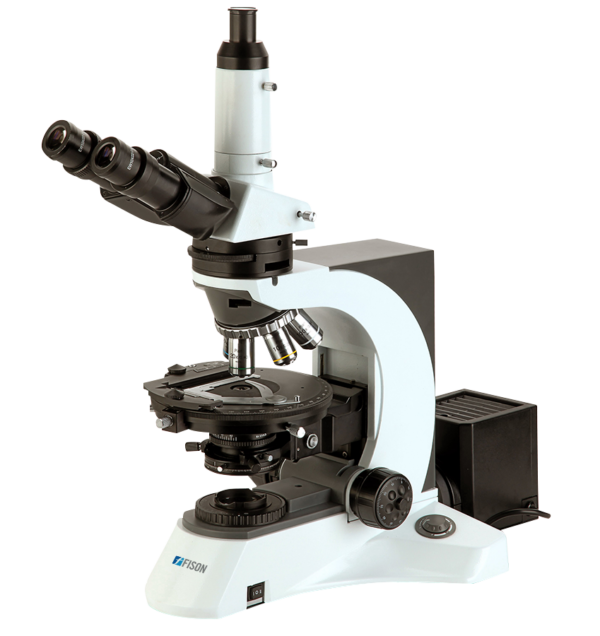

Polarizing microscope FM-PM-A102 is an upright microscope equipped with transmitted 360° rotatable 0° adjustable position polarizer, and 360° dial rotation, 0.1° minimum Vernier scale analyzer. The easy switch between orthogonal and conoscopic polarization mode is achieved using adjustable Bertrand lens.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in geological studies, metallurgy, medicine, and pharmaceutical studies to analyze depth and details of the specimen under observation.
| Optical System | Infinite optical system |
| Viewing head | Seidentopf trinocular head inclined at 30°, Interpupillary 48-75 mm |
| Polarizer | 360° rotatable 0° adjustable position polarizer |
| Analyzer | 360° dial rotation, minimum scale reading 0.1° (Vernier scale) |
| Objective | Infinity Plan Achromatic Objectives 4×/0.10/∞/-,W.D. 17.3 mm Infinity Plan Achromatic Objectives 10×/0.25/∞/0.17,W.D.10.0 mm Infinity Plan Achromatic Objectives 20×/0.40/∞/0.17,W.D. 5.10 mm Infinity Plan Achromatic Objectives 40×/0.65/∞/0.17,W.D.0.54 mm Infinity Plan Achromatic Objectives 100×/1.25/∞/0.17,W.D.0.13 mm |
| Eyepiece | Plan eyepiece EW10X/22 mm Plan eyepiece with scale of crosshair, cross, and gridding |
| Polarizing rotatable stage | Diameter 70 mm, adjustable center, 360° scale, Minimum division 1°, Minimum 6 reading by means of Vernier scale, 45° Click stop knob |
| Attachable stage | Moving range 30 × 40 mm |
| Illumination | 24 V/ 100 W Halogen lamp, Brightness adjustable |
| Nosepiece | Backward quintuple nosepiece, adjustable center |
| Condenser | Swing condenser N.A. 0.9/0.25 |
| Focusing | Coaxial coarse & fine adjustment with 32mm range, Fine division 0.001 mm Coarse stroke 37.7 mm per rotation, Fine stroke 0.1 mm per rotation |
| Conoscopic observation attachment | Switch between Orthoscopic and Conoscopic observations, Bertrand lens position adjustable |
| Optical compensator | First Order Red Plate, Guarter-wave plate, Quartz wedge |
| Filter | Blue filter 45 mm diameter |
| Dimension | 280 × 475 × 462 mm |
| Weight | 15 kg |
