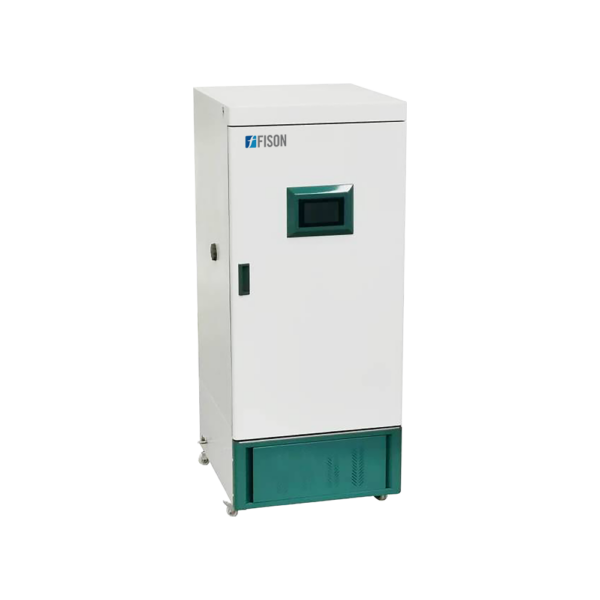

Plant Growth Chamber FM-PGC-A103 offers a volume of 350 liters and maintains humidity range from 40% to 95%. Equipped with a double door structure and high-quality stalinite for sample observation. Our chamber includes both the backflow valve and expansion valve, effectively extending the compressor’s service life. Features multi-stage adjustability for controlling light intensity and timing across various growth stages or experiments.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Plant growth chamber is used for growth of plant cell tissues and seedlings across various fields such as agriculture, plant science, biotechnology, life sciences, and food production.
| Chamber Volume | 350 L |
| Cycle Mode | Forced convection, Rear micropore |
| Temperature Range | Without illumination: 0 to 65 ℃ With illumination: 10 to 65 ℃ |
| Temperature Resolution Ratio | 0.1 ℃ |
| Temperature Motion | ± 0.5 ℃ |
| Temperature Uniformity | ± 1.0 ℃ |
| Illumination | 0 to 30000 LX (Adjustable) |
| Humidity Range | 40% to 95% RH |
| Humidity Motion | ± 5% RH |
| Inner Chamber | SUS304 Stainless steel |
| Exterior Chamber | Cold rolling steel electrostatic spraying |
| Thermal Insulation Material | Polyurethane |
| Light Barrier | Standard four-layer full spectrum LED lamp board |
| Heater | Stainless steel heating tube |
| Compressor | Air cooled hermetic compressor |
| Coolant | R134A |
| Defrosting Structure | Automatic |
| Humidity Control Mode | Automatic |
| Leading Wire Hole | Standard inflation port interface, Outer diameter: 10 mm |
| Display | 7.0-inch true color touch screen |
| Sensor | PT100 Temperature Sensor, Imported chip humidity sensor |
| Enhanced Features and Functionalities | Reservation Switch, Temperature and Humidity Curve, U Disk Data Storage and Export, Deviation Correction, Menu Locking Feature, Power Failure Backup and Memory, Intelligent Defrosting |
| Safety Features | Over temperature, long-term under temperature, loop self-diagnosis |
| Load Per Rack | 15 Kg |
| Shelf Space | 120 mm |
| Power Consumption | 2.2 kW |
| Power Supply | AC 220 V / 10 A |
| Interior Dimension (L × W × H) | 580 × 630 × 960 mm |
| Exterior Dimension (L × W × H) | 806 × 824 × 1720 mm |
| Packing Dimension (L × W × H) | 923 × 943 × 1960 mm |
| Net Weight | 260Kg |
| Gross Weight | 300 Kg |
