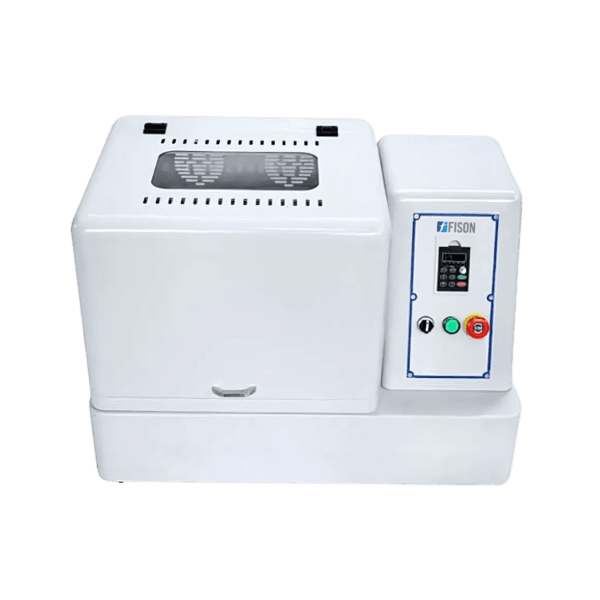

Planetary Ball Mill FM-PBM-A111 is designed with a 2L capacity and a jar rotational speed of 800 rpm. It enables rapid particle size reduction and uniform mixing for optimal results. It is equipped with high-performance milling media and provides precise, contamination-free grinding. Our ball mill supports dry, wet, and vacuum milling, making it ideal for a wide range of industrial applications.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Planetary Ball Mill FM-PBM-A111 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
| Capacity | 2L |
| Jar Rotational Speed | 800 rpm |
| Working Principle | Impact and friction force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1: 2 |
| Drive Mode | Gear drive & belt drive |
| Power Supply | 110/220VAC, 50Hz, 0.75KW |
| Dimension (L×W×H) | 730 × 470 × 550 mm |
| Package Dimension (L×W×H) | 800 × 520 × 750 mm |
| Weight | 85 Kg |
