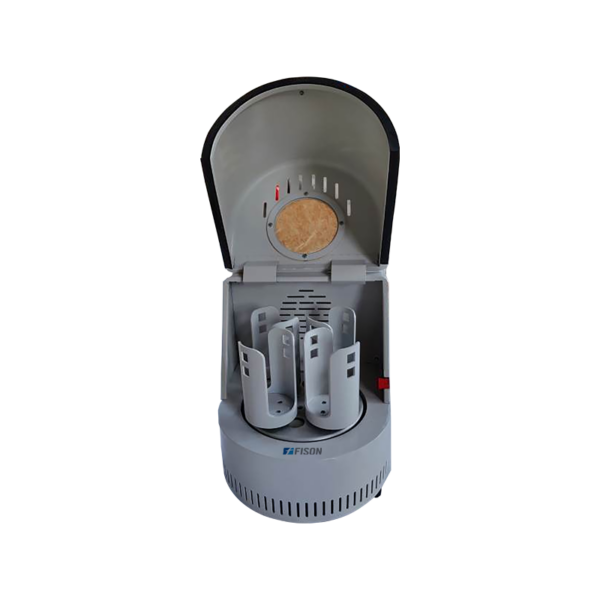

Planetary Ball Mill FM-PBM-A100 is a highly efficient ball mill that is perfect for combining, fine-grinding, and preparing small amounts of sophisticated materials. Intended with a grinding jar that holds a capacity of 100ml and works within a rotation speed of 90-870 r/min. Designed with a ventilation hole to enhance cooling and guarantee steady functioning for a longer period of time.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
It is mainly used for mixing and grinding in fields such as Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering etc
| Max Volume of Pot or Jar | 100ml |
| Work Mode | 2 or 4 jars working together |
| Mill Mode | Dry/wet milling |
| Speed Frequency | Adjusting |
| Drive Mode | Gear drive |
| Rotational Speed | 90-870 r/min, adjusting |
| Revolution: Rotation | 1:2 |
| Material Capacity | Material + mill balls < 2/3 volume |
| Input Granularity Size | ≤ 10mm for soft material≤ 3mm for hard material |
| Output Granularity Size | Minimum 0.1μm |
| Feed Material | Soft, hard, brittle, fibrous, cellulose, herb, glass, soil, ore, pharmacy, chemical, fluorescent, pigment, etc. |
| Grinding Jars | Stainless steel, zirconia, alumina, nylon, PU, tungsten, PTFE, etc., vacuum jars are available as well. |
| Grinding Medium | Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc |
| Time Range | 72 hours |
| Voltage | 110V or 220V, 50/60 Hz Single phase |
| Dimensions | 500×300×340 mm |
| Weight | 29 kg |
